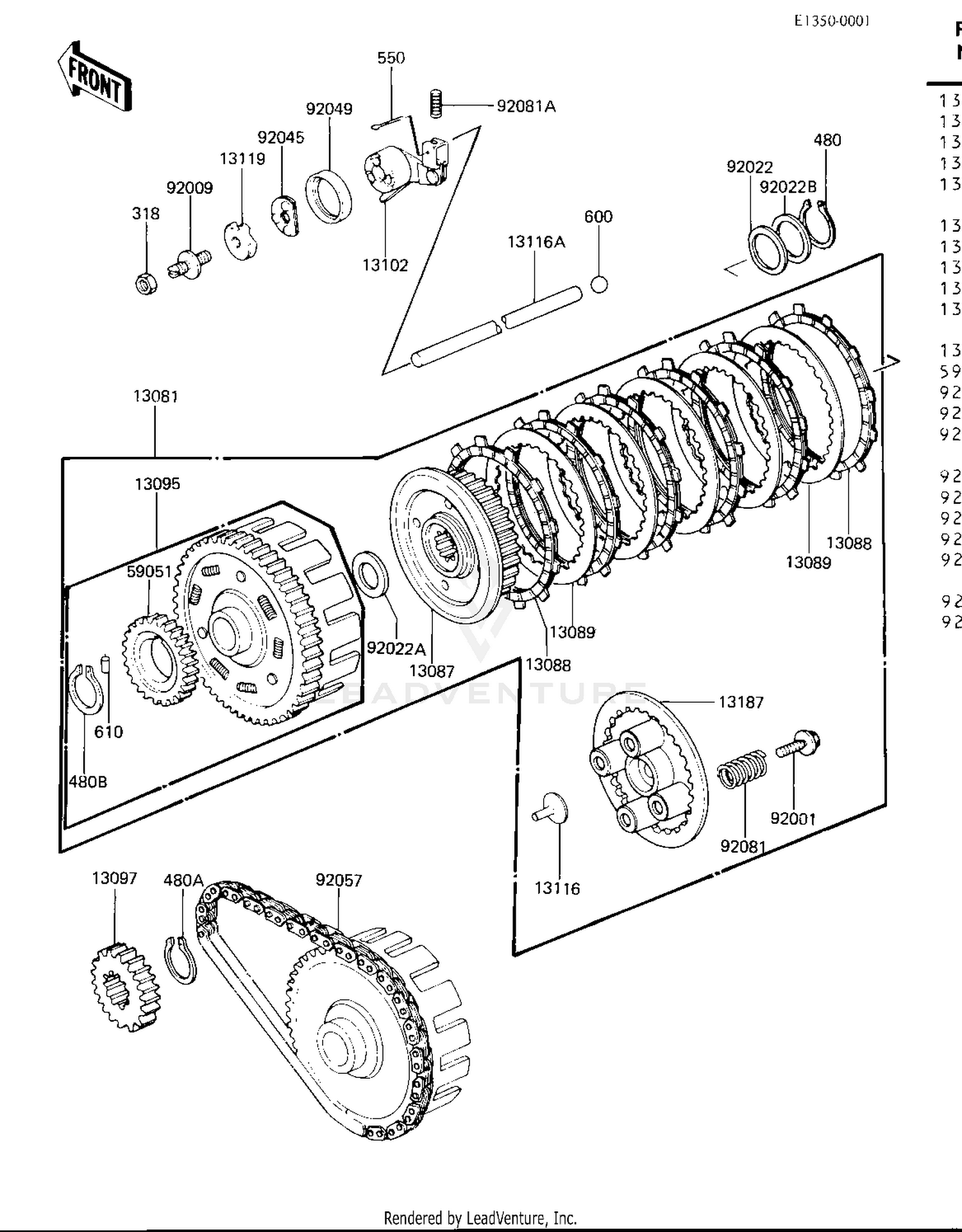

| Ref | Part Number | Description |
|---|
| 318 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 318B0800. Price: $0.59 |
| 480 |
480J2400 |
CIRCLIP-TYPE-C,24MM Price: $6.32 |
| 480A |
480J3000 |
CIRCLIP-TYPE-C,30MM Price: $6.22 |
| 480B |
480J3800 |
CIRCLIP, 38MM Price: $5.44 |
| 550 |
550AA1615 |
PIN-COTTER,1.6X15 This part replaces 550D1615. Price: $2.51 |
| 13081 |
13081-1019 |
CLUTCH-ASSY Price: $480.49 |
| 13087 |
13087-040 |
HUB,CLUTCH Price: $79.77 |
| 13088 |
13088-1001 |
PLATE,FRICTION Price: $29.47 |
| 13089 |
13089-026 |
PLATE-CLUTCH,T=2.0 Price: $12.80 |
| 13095 |
13095-1008 |
HOUSING,CLUTCH Price: $310.84 |
| 13097 |
13121-030 |
SPROCKET,PRIMARY Price: $58.06 |
| 13102 |
13102-1004 |
RELEASE, CLUTCH Price: $84.82 |
| 13116 |
13116-029 |
PUSHER,CLTCH SPRG PLT Price: $38.23 |
| 13116A |
13116-1017 |
ROD,PUSH,CLUTCH Price: $47.00 |
| 13119 |
13119-1003 |
CAM,RELEASE,CLUTCH Price: $16.96 |
| 13187 |
13187-1003 |
PLATE,CLUTCH SPRING Price: $51.10 |
| 59051 |
59051-1001 |
GEAR,OIL PUMP,34T Price: $49.87 |
| 92001 |
92001-1066 |
BOLT,FLANGED,6X18 Price: $6.22 |
| 92009 |
92009-1009 |
SCREW,SLOTTED,8M/M Price: $4.99 |
| 92022 |
92022-225 |
WASHER,25.3X32X0.5 Price: $5.52 |
| 92022A |
92022-288 |
WASHER,CLUTCH THRUST Price: $12.83 |
| 92022B |
92022-302 |
WASHER,CLUTCH TRUST Price: $5.51 |
| 92045 |
14020-1091 |
RETAINER,CLUTCH RELEA This part replaces 92045-1001. Price: $11.60 |
| 92049 |
92049-1003 |
OIL SEAL,CLUTCH RELES Price: $10.89 |
| 92057 |
13122-005 |
CHAIN,PRIMARY DRIVE Price: $343.04 |
| 92081 |
92081-1033 |
SPRING,CLUTCH Price: $7.38 |
| 92081A |
92081-1058 |
SPRING,CLUTCH RETURN Price: $9.25 |
