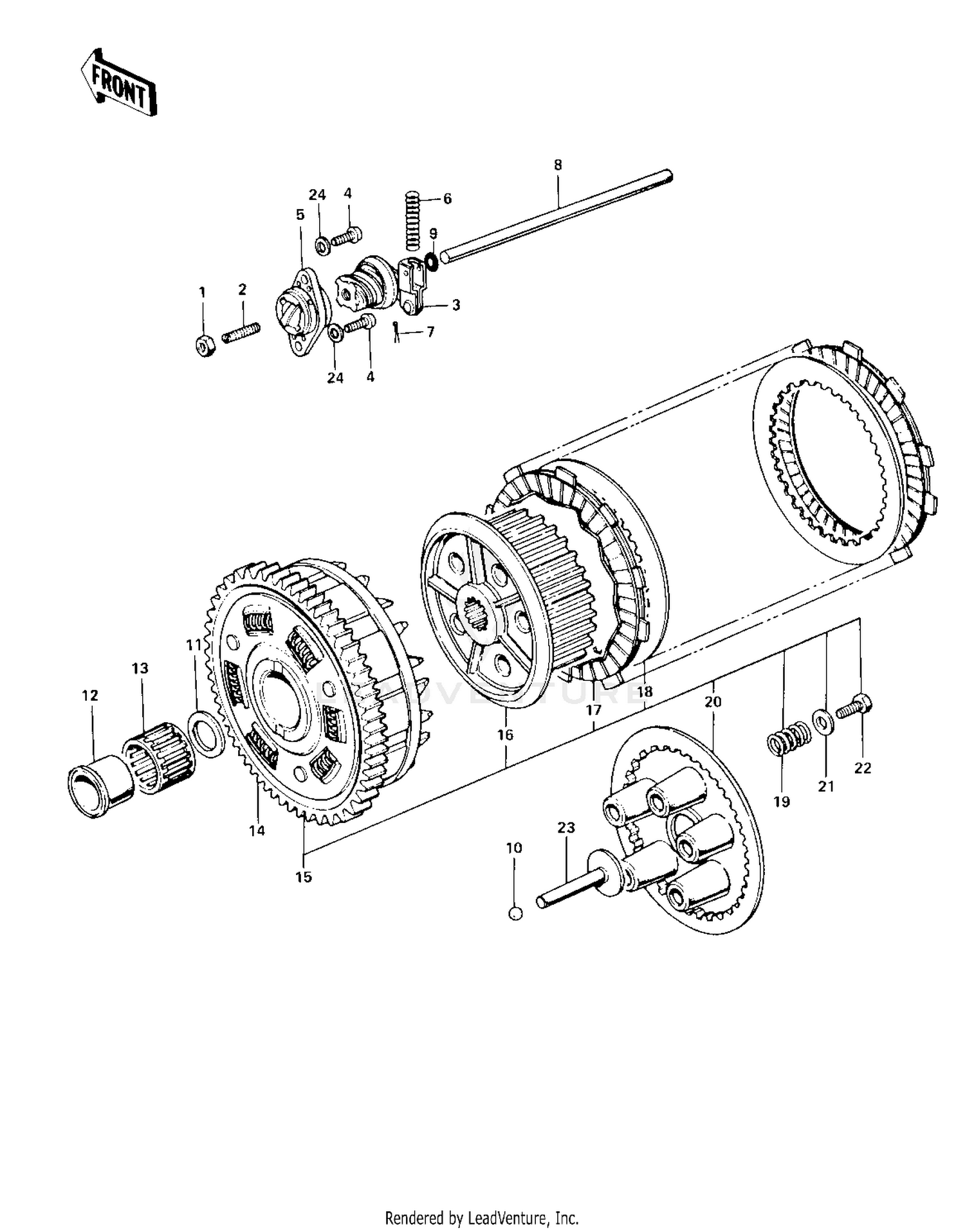

| Ref | Part Number | Description |
|---|
| 1 |
315B0800 |
NUT 8MM Price: $0.70 |
| 2 |
92014-014 |
SCREW,SLOTTED,8X25 Price: $6.35 |
| 3 |
13102-013 |
INNER,CLUTCH RELEASE Price: $70.71 |
| 4 |
220AA0616 |
SCREW-PAN-CROS,6X16 This part replaces 220B0616. Price: $3.04 |
| 5 |
13118-007 |
OUTER,CLUTCH RELEASE Price: $18.90 |
| 6 |
92081-069 |
SPRING-CLUTCH RELEASE Price: $7.51 |
| 7 |
550AA1615 |
PIN-COTTER,1.6X15 This part replaces 550D1615. Price: $2.51 |
| 8 |
13116-021 |
PUSH ROD,CLUTCH Price: $29.69 |
| 9 |
670B1507 |
O RING,7MM Price: $1.28 |
| 11 |
92026-022 |
SPACER,25.5X47X2.5 Price: $9.91 |
| 12 |
92028-135 |
BUSHING,CLUTCH Price: $54.55 |
| 13 |
92046-028 |
BEARING-NEEDLE,KTV323723 Price: $21.24 |
| 14 |
13081-1367 |
CLUTCH-ASSY Price: $587.76 |
| 15 |
13081-1014 |
CLUTCH-ASSY Price: $587.76 |
| 16 |
13081-1367 |
CLUTCH-ASSY Price: $587.76 |
| 17 |
13088-030 |
PLATE,CLUTCH FRICTION Price: $26.17 |
| 18 |
13089-022 |
PLATE,CLUTCH STEEL Price: $19.11 |
| 19 |
92081-1033 |
SPRING,CLUTCH Price: $7.38 |
| 20 |
13187-006 |
PLATE,CLUTCH SPRING Price: $70.30 |
| 21 |
13091-011 |
HOLDER,CLUTCH SPRING Price: $5.78 |
| 22 |
112BA0618 |
BOLT-UPSET This part replaces 112G0618. Price: $1.03 |
| 23 |
13116-022 |
PUSHER,CLUTCH SPRG PL Price: $26.40 |
