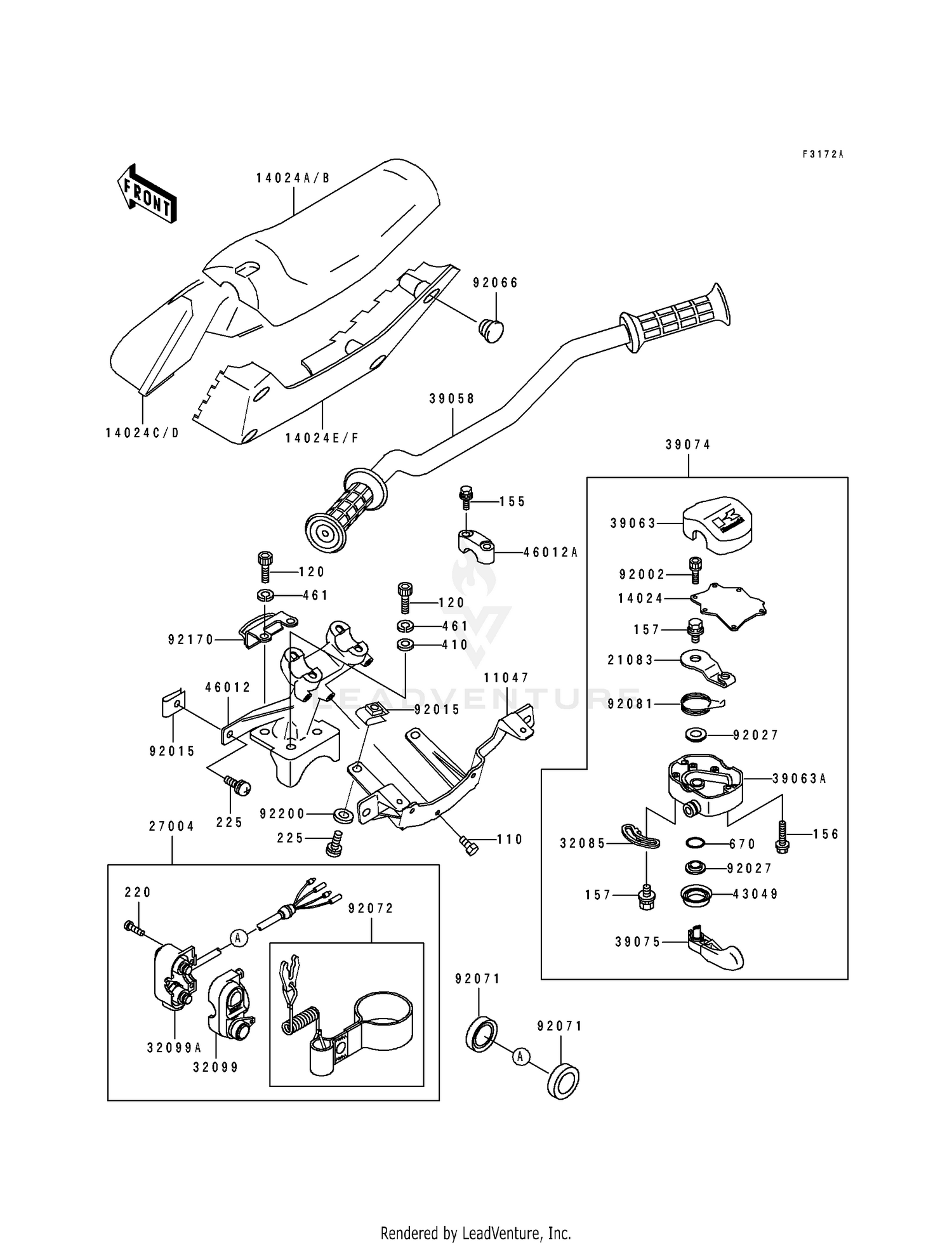

| Ref | Part Number | Description |
|---|
| 110 |
110R0612 |
BOLT,6X12 Price: $2.28 |
| 120 |
120R0825 |
BOLT-SOCKET,8X25 Price: $8.72 |
| 155 |
155R0835 |
BOLT-WSP-SMALL,8X35 Price: $8.19 |
| 156 |
156R0525 |
BOLT-WP,5X25 Price: $6.88 |
| 157 |
157R0512 |
BOLT-WSP,5X12 Price: $3.70 |
| 220 |
220R0530 |
SCREW-PAN-CROS,5X30 Price: $4.87 |
| 225 |
225R0525 |
SCREW-PAN-WSP-CROS,5X Price: $3.74 |
| 410 |
410S0800 |
WASHER-PLAIN-SMALL,8MM Price: $2.58 |
| 461 |
461S0800 |
WASHER-SPRING,8MM Price: $0.65 |
| 11047 |
11047-3713 |
BRACKET,HANDLE COVER Price: $79.14 |
| 14024 |
14024-3701 |
COVER,THROTTLE LEVER Price: $34.48 |
| 14024A |
14024-3775-TR |
COVER,HANDLE,UPP,BLUE Price: $398.71 |
| 14024C |
14024-3776-TR |
COVER,HND,FR,BLUE 41 Price: $99.93 |
| 14024E |
14024-3808-TR |
COVER,HNDL,RR,BLUE 41 Price: $111.15 |
| 21083 |
21083-3701 |
ARM,THROTTLE LEVER Price: $15.65 |
| 27004 |
27004-3722 |
SWITCH-ASSY,STOP&STAR Price: $364.12 |
| 32085 |
32085-3709 |
STOPPER Price: $10.28 |
| 32099 |
32099-3762 |
CASE,FR,SWITCH Price: $120.46 |
| 32099A |
32099-3768 |
CASE,RR,SWITCH Price: $176.18 |
| 39058 |
39058-3709 |
HANDLE-COMP This part replaces 39058-3705. Price: $240.59 |
| 39063 |
39063-3713 |
HOUSING-CONTROL,UPP Price: $54.29 |
| 39063A |
39063-3714 |
HOUSING-CONTROL,LWR Price: $75.52 |
| 39074 |
39074-3714 |
LEVER-ASSY-THROTTLE Price: $229.21 |
| 39075 |
39075-3708 |
LEVER-THROTTLE Price: $67.20 |
| 43049 |
43049-3701 |
PACKING,THROTTLE LEVE Price: $7.69 |
| 46012 |
46012-3718 |
HOLDER-HANDLE,LWR Price: $118.99 |
| 46012A |
46012-3720 |
HOLDER-HANDLE,UPP Price: $16.69 |
| 92002 |
92002-3751 |
BOLT,SOCKET,3X10 Price: $5.46 |
| 92015 |
92015-3799 |
NUT,5MM Price: $11.34 |
| 92027 |
92027-3704 |
COLLAR,THROTTLE LEVER Price: $4.51 |
| 92066 |
92066-3730 |
PLUG Price: $6.08 |
| 92071 |
92071-3771 |
GROMMET Price: $5.88 |
| 92072 |
92072-3784 |
BAND,TETHER SWITCH This part replaces 92072-3767. Price: $59.26 |
| 92081 |
92081-3702 |
SPRING,THROTTLE LEVER Price: $6.52 |
| 92170 |
92170-3727 |
CLAMP,HARNESS&CABLE Price: $21.83 |
| 92200 |
92200-3712 |
WASHER,6.5X16X1.0 Price: $3.73 |
