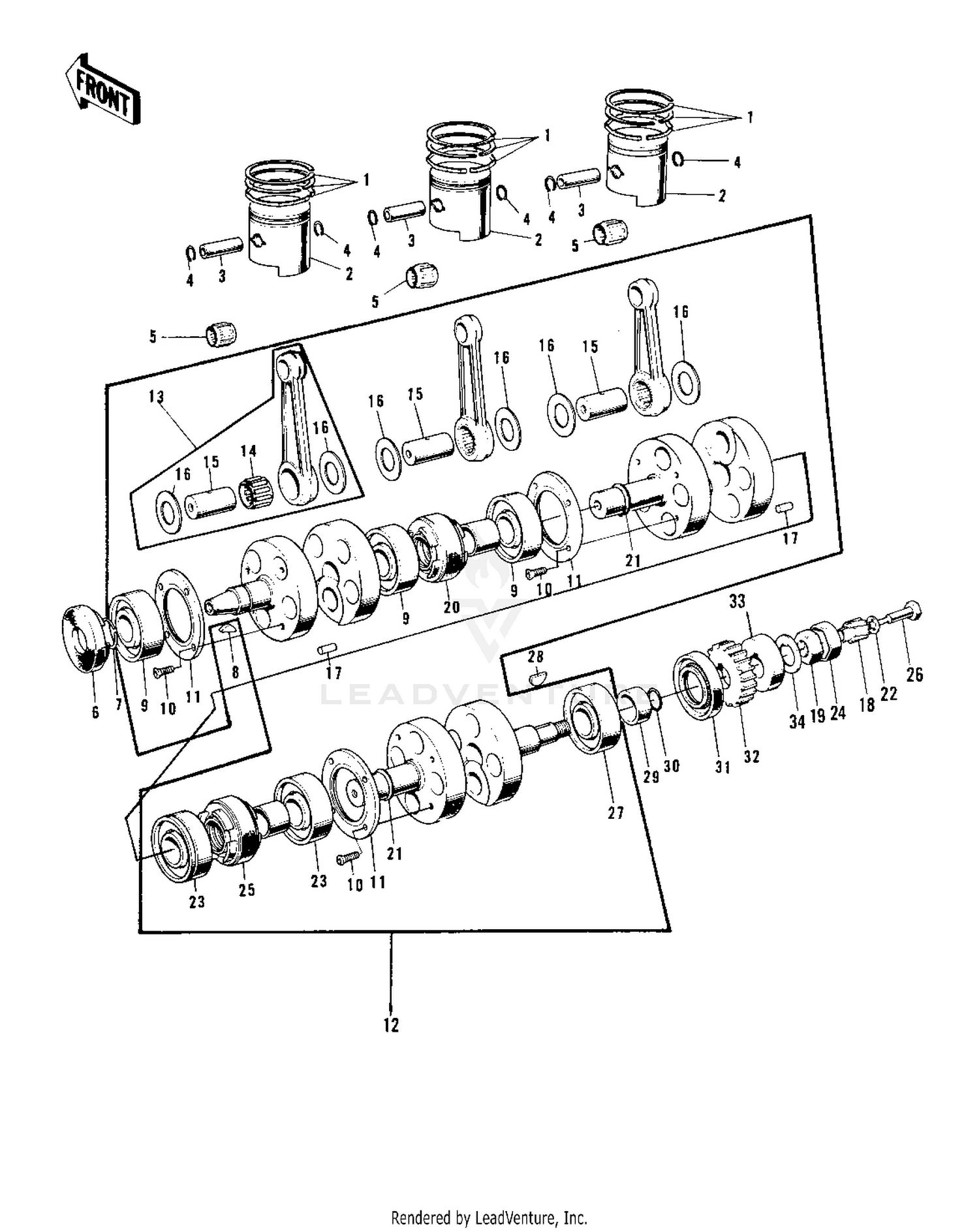

CRANKSHAFT/PISTONS ('73-'75 D/E/F & '76
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 13008-041 | RING SET,STD Price: $119.98 |
| 1 | 13024-048 | RING SET,0.040" O.S Price: $125.70 |
| 1 | 13025-044 | RING SET,0.020" O.S Price: $125.70 |
| 2 | 13001-031 | PISTON STD Price: $83.64 |
| 2 | 13027-031 | PISTON 0.040' O.S Price: $155.41 |
| 2 | 13029-031 | PISTON 0.020' O.S Price: $155.41 |
| 3 | 13002-010 | PIN-PISTON Price: $39.17 |
| 4 | 92036-004 | CIRCLIP PISTON PIN Price: $0.65 |
| 5 | 92046-1038 | BEARING-NEEDLE Price: $25.59 |
| 7 | 92036-013 | CIRCLIP Price: $3.38 |
| 8 | 92038-001 | KEY,WOODRUFF Price: $4.96 |
| 9 | 601B6205 | BEARING BALL #6205 Price: $19.57 |
| 10 | 92012-001 | SCREW CNTRSNK HD 5X10 Price: $1.51 |
| 11 | 13045-010 | OIL RECEIVER,CRANKSFT Price: $18.75 |
| 12 | 13031-049 | CRANK&CONROD ASSY Price: $953.40 |
| 13 | 13044-034 | CONNECTING ROD SET Price: $208.40 |
| 14 | 13034-010 | NEEDLE BEARING BG END Price: $34.84 |
| 15 | 13035-017 | CRANK PIN Price: $43.22 |
| 16 | 92026-024 | WASHER SIDE Price: $29.22 |
| 17 | 610A0512 | PIN DOWEL 5X12 Price: $4.78 |
| 18 | 16084-010 | PINION OIL PUMP Price: $41.07 |
| 19 | 92015-019 | NUT 18MM Price: $7.22 |
| 21 | 92026-066 | SPACER Price: $3.21 |
| 22 | 463H0600 | WASHER LOCK 6MM Price: $0.81 |
| 23 | 92045-020 | BALL BEARING 6305N Price: $39.41 |
| 24 | 92024-021 | WASHER LOCK Price: $13.34 |
| 26 | 92001-060 | BOLT OIL PUMP PINION Price: $9.77 |
| 27 | 601B6305 | BEARING-BALL,#6305C3 Price: $25.78 |
| 28 | 510A5200 | WOODRUFF KEY Price: $2.82 |
| 29 | 92027-031 | COLLAR CRANK OIL SEAL Price: $31.08 |
| 32 | 13121-013 | PINION-PRIMARY Price: $75.90 |
| 33 | 92027-091 | COLLAR Price: $8.15 |
