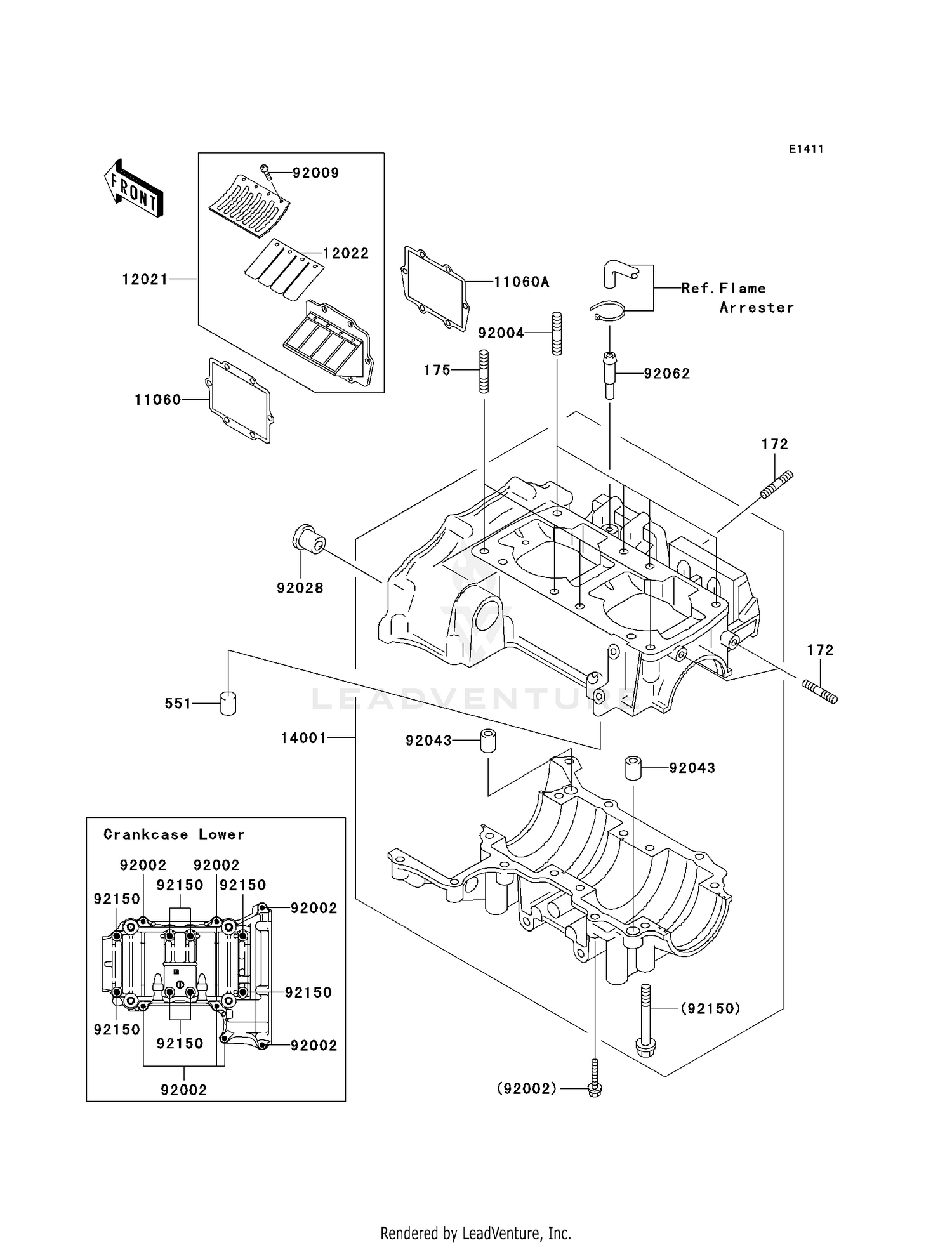

CRANKCASE
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 172 | 172R0620 | BOLT-STUD Price: $7.83 |
| 175 | 175R1035 | BOLT-STUD-FINE Price: $10.56 |
| 551 | 551R0612 | PIN-DOWEL Price: $4.69 |
| 11060 | 11060-3717 | GASKET,REED VALVE Price: $17.78 |
| 11060A | 11060-3757 | GASKET,REED VALVE Price: $17.78 |
| 12021 | 12021-3708 | VALVE-ASSY-REED Price: $150.51 |
| 12022 | 12022-3703 | VALVE-REED Price: $27.37 |
| 14001 | 14001-5391 | SET-CRANKCASE Price: $809.95 |
| 92002 | 92002-3726 | BOLT,6X30 Price: $4.69 |
| 92004 | 92004-3752 | STUD,CRANK CASE Price: $7.22 |
| 92009 | 92009-1371 | SCREW,3X6 Price: $4.18 |
| 92028 | 92028-3718 | BUSHING Price: $9.43 |
| 92043 | 92043-1037 | PIN,DOWEL,10X14 Price: $0.74 |
| 92062 | 92062-3705 | NOZZLE Price: $8.44 |
