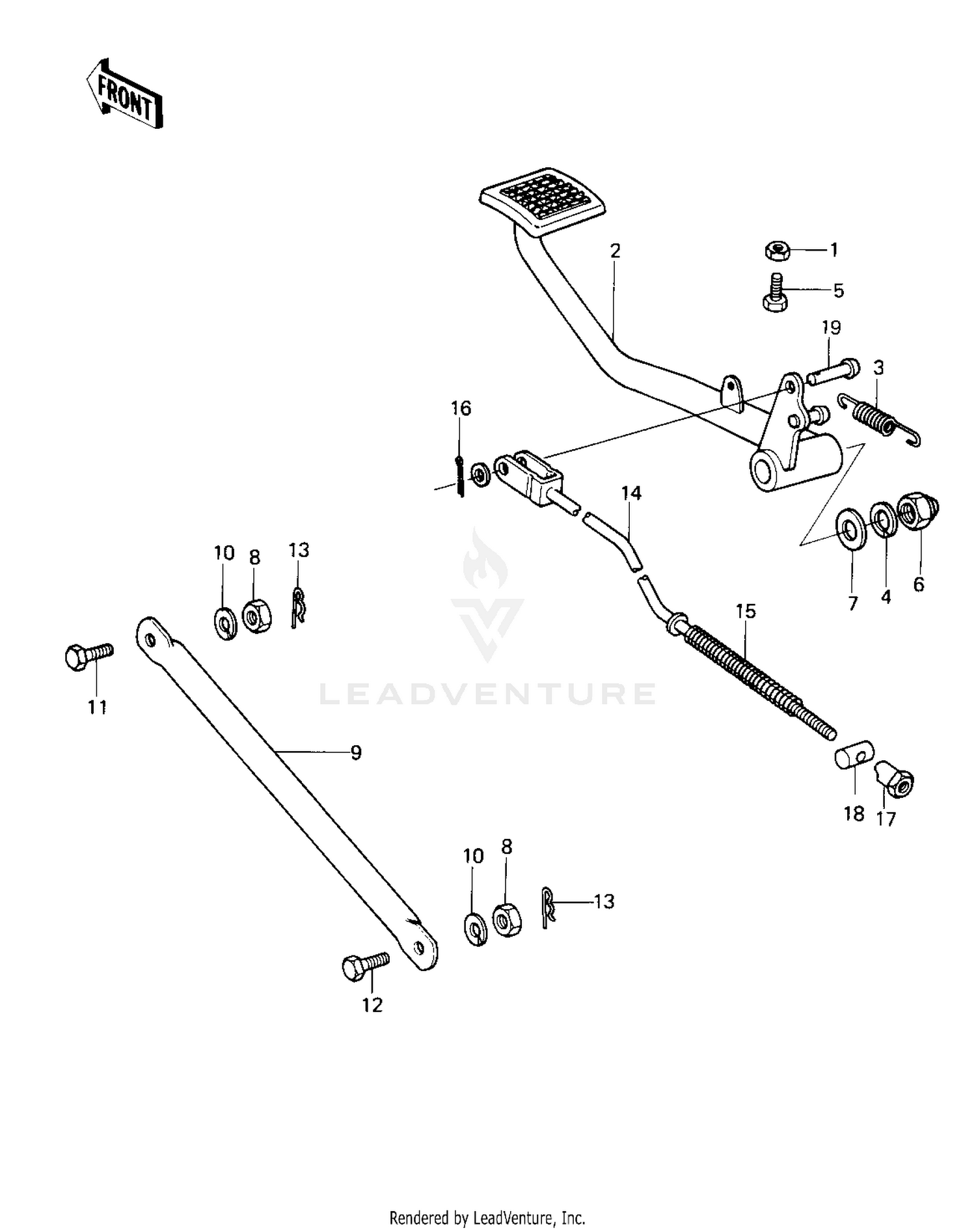

| Ref | Part Number | Description |
|---|
| 1 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 2 |
43001-1044 |
PEDAL,BRAKE Price: $72.81 |
| 3 |
43005-029 |
SPRING,BRAKE PEDAL Price: $9.34 |
| 4 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 5 |
92001-1090 |
BOLT,HEX HEAD,6X25 Price: $4.11 |
| 6 |
92019-013 |
NUT,CAP AND LOCK,8MM Price: $14.88 |
| 7 |
92022-1561 |
WASHER,8.5X20X1.6 Price: $4.31 |
| 8 |
315AA1000 |
NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
| 9 |
43007-018 |
TORQUE LINK REAR BRK Price: $12.67 |
| 10 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 11 |
92003-017 |
BOLT TORQUE LINK FIT Price: $5.68 |
| 12 |
92151-1876 |
BOLT,10X29 This part replaces 92003-096. Price: $10.72 |
| 13 |
554DA0800 |
PIN-SNAP This part replaces 554A0800. Price: $1.36 |
| 14 |
43011-1022 |
ROD,BRAKE Price: $21.63 |
| 15 |
43012-001 |
SPRING,BRAKE ROD Price: $4.65 |
| 16 |
550AA2015 |
PIN-COTTER,2.0X15 This part replaces 550D2015. Price: $1.12 |
| 17 |
92015-042 |
NUT,BRAKE ROD Price: $6.22 |
| 18 |
92043-0147 |
PIN,BRAKE ROD This part replaces 92043-039. Price: $6.38 |
