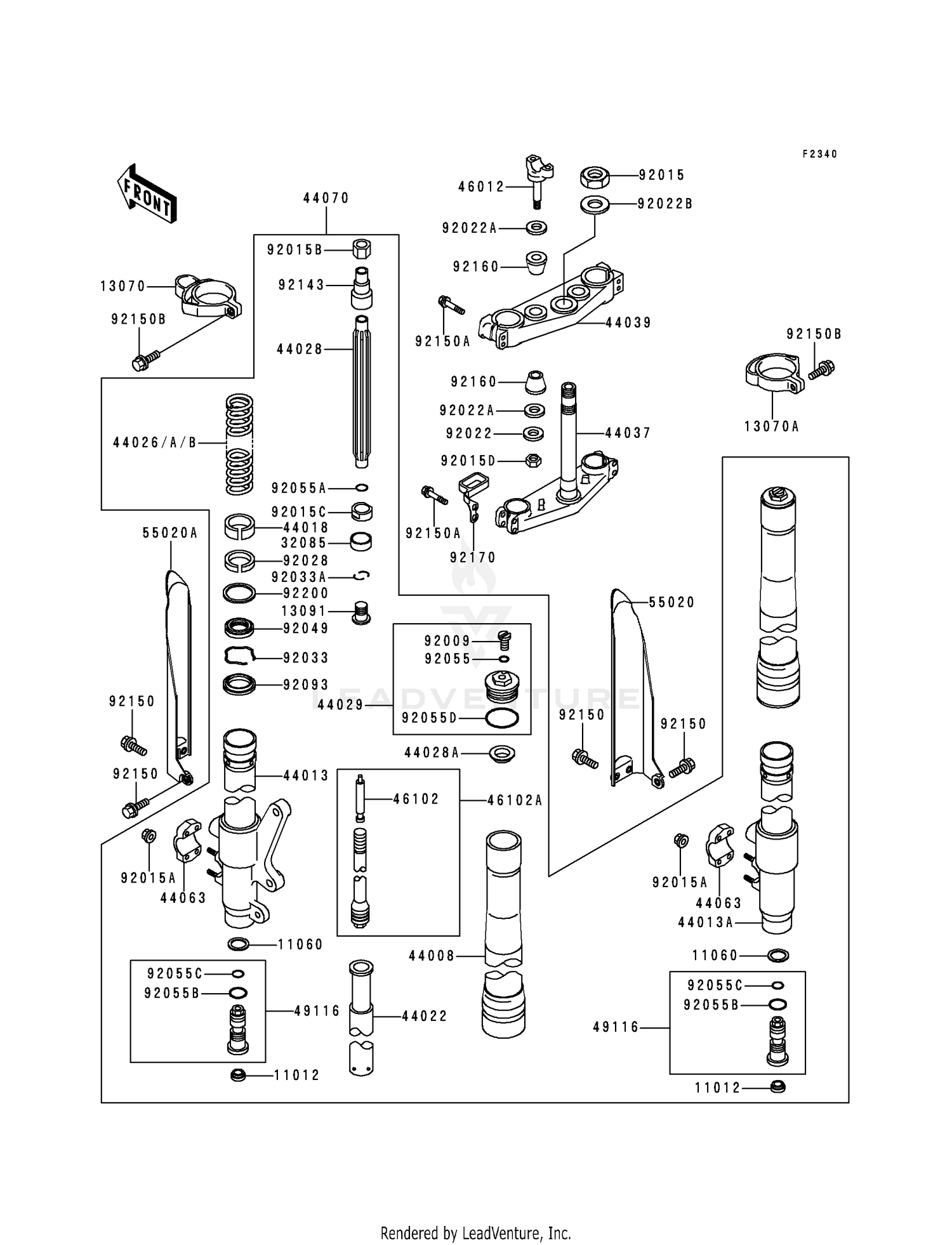

| Ref | Part Number | Description |
|---|
| 11012 |
11012-1692 |
CAP Price: $6.16 |
| 11060 |
11060-1707 |
GASKET Price: $5.54 |
| 13070 |
13070-1329-RE |
GUIDE,PROTECTOR,LH,J. This part replaces 13070-1289-RE. Price: $23.94 |
| 13070A |
13070-1290-RE |
GUIDE,PROTECTOR,RH,J. Price: $22.48 |
| 13091 |
13091-1651 |
HOLDER Price: $28.70 |
| 32085 |
32085-1323 |
STOPPER Price: $20.04 |
| 44008 |
44008-1037-14 |
PIPE-FORK OUTER,A.N.G Price: $854.32 |
| 44013 |
44013-1413 |
PIPE-FORK INNER,LH Price: $550.94 |
| 44013A |
44013-1414 |
PIPE-FORK INNER,RH Price: $493.44 |
| 44018 |
44018-1059 |
PISTON-FORK,INNER PIP Price: $28.88 |
| 44022 |
44022-1309 |
CYLINDER-FORK Price: $266.31 |
| 44026 |
44026-1618 |
SPRING-FRONT FORK,K=0 This part replaces 44026-1587. Price: $85.12 |
| 44028 |
44028-1096 |
GUIDE-FORK SPRING Price: $46.34 |
| 44028A |
44028-1097 |
GUIDE-FORK SPRING Price: $13.44 |
| 44029 |
44029-1159 |
SEAT-FORK SPRING Price: $122.59 |
| 44037 |
44037-1338 |
HOLDER-FORK UNDER Price: $629.17 |
| 44039 |
44039-1262 |
HOLDER-FORK UPPER Price: $260.96 |
| 44063 |
44063-1060 |
HOLDER-FRONT AXLE Price: $54.38 |
| 44070 |
44070-1414-RE |
DAMPER-ASSY,FORK,J.S. Price: $3,088.15 |
| 46012 |
46012-1264 |
HOLDER-HANDLE,LWR Price: $44.98 |
| 46102 |
46102-1340 |
ROD,FORK Price: $27.34 |
| 46102A |
46102-1387 |
ROD,FORK,ASSY Price: $543.44 |
| 49116 |
49116-1140 |
VALVE-ASSY,FORK Price: $164.52 |
| 55020 |
55020-1493-RE |
GUARD,FORK,RH,J.S.VIO Price: $50.77 |
| 55020A |
55020-1554-RE |
GUARD,FORK,LH,J.S.VIO Price: $50.77 |
| 92009 |
92009-1568 |
SCREW Price: $7.21 |
| 92015 |
92015-1057 |
NUT,24M/M Price: $15.65 |
| 92015A |
92210-0630 |
NUT,FLANGED,6MM This part replaces 92015-1078. Price: $2.00 |
| 92015B |
92015-1905 |
NUT Price: $19.64 |
| 92015C |
92015-1945 |
NUT Price: $10.24 |
| 92015D |
92210-1184 |
NUT,LOCK,10MM This part replaces 92015-1962. Price: $6.11 |
| 92022 |
92022-1088 |
WASHER,10.2X28X2 Price: $4.69 |
| 92022A |
92022-1737 |
WASHER Price: $5.52 |
| 92022B |
92022-250 |
WASHER,25X36X2.3 Price: $5.00 |
| 92028 |
92028-1755 |
BUSHING Price: $25.80 |
| 92033 |
92033-1264 |
RING-SNAP Price: $6.10 |
| 92033A |
92033-1271 |
RING-SNAP Price: $6.87 |
| 92049 |
92049-1440 |
SEAL-OIL,FORK OUTER T Price: $34.78 |
| 92055 |
92055-1441 |
RING-O,2.8X6.6X1.9 Price: $2.93 |
| 92055A |
92055-1442 |
RING-O Price: $9.21 |
| 92055B |
92055-1547 |
RING-O,FORK VALVE Price: $5.24 |
| 92055C |
92055-1548 |
RING-O,FORK VALVE Price: $4.40 |
| 92055D |
92055-1549 |
RING-O Price: $9.48 |
| 92093 |
92093-1392 |
SEAL,FORK OUTER TUBE Price: $22.10 |
| 92143 |
92143-1793 |
COLLAR,FORK Price: $23.80 |
| 92150 |
92150-1435 |
BOLT,6X12 Price: $4.31 |
| 92150A |
92150-1516 |
BOLT,FLANGED,8X40 Price: $14.15 |
| 92150B |
92150-1802 |
BOLT,5X16 Price: $5.00 |
| 92160 |
92160-1544 |
DAMPER,HANDLE HOLDER Price: $5.11 |
| 92170 |
92170-1604 |
CLAMP,HOSE Price: $25.74 |
