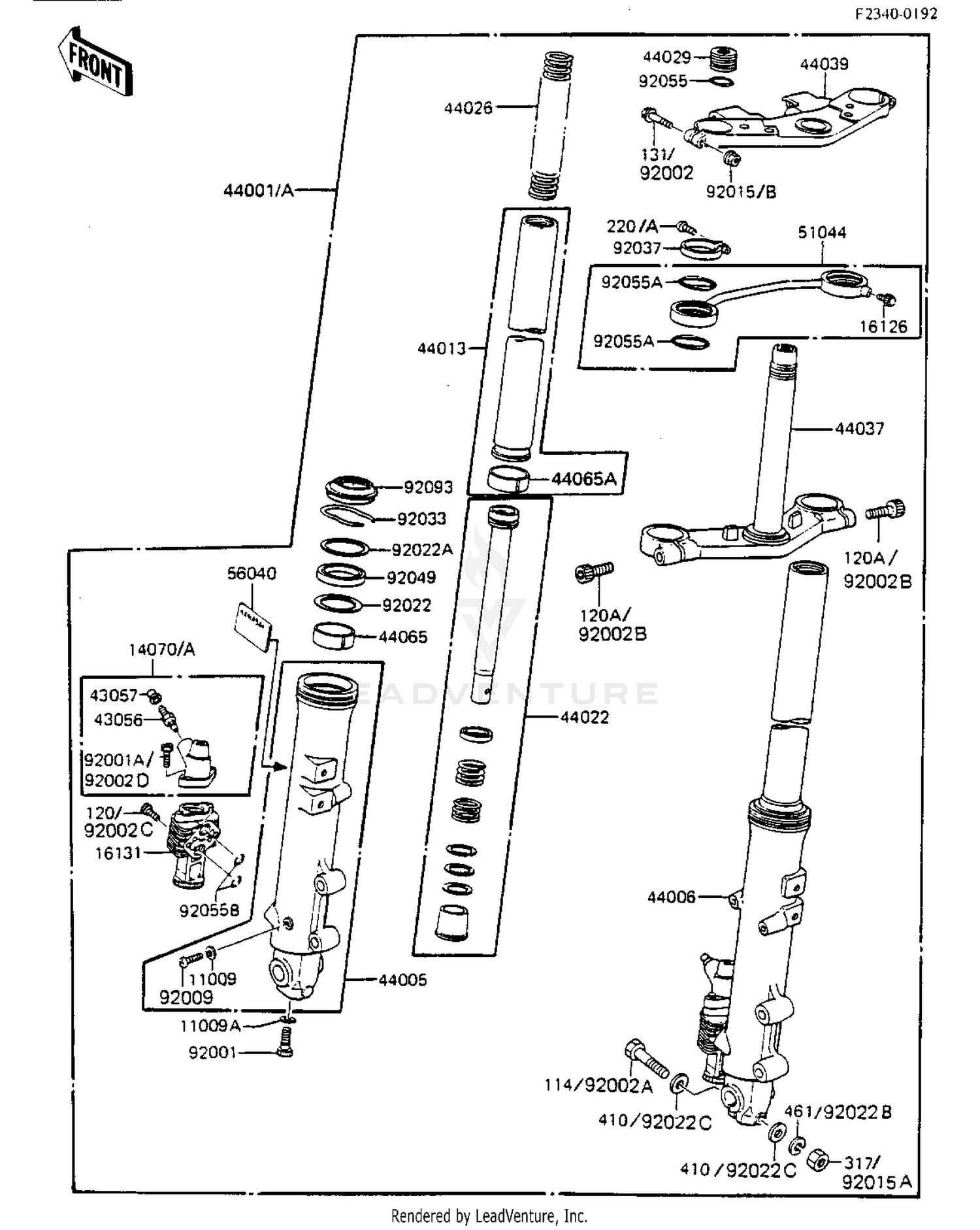

| Ref | Part Number | Description |
|---|
| 114 |
115J0860 |
BOLT-SMALL-UPSET,8X60 Price: $3.83 |
| 120 |
120CB0616 |
BOLT-SOCKET,6X16 This part replaces 120S0616. Price: $1.27 |
| 120A |
120S1230 |
BOLT-SOCKET,12X30 Price: $5.21 |
| 131 |
131J0855 |
BOLT-FLANGED,8X55,BLA Price: $3.49 |
| 220 |
220AA0414 |
SCREW-PAN-CROS This part replaces 220B0414. Price: $4.60 |
| 220A |
220AB0412 |
SCREW-PAN-CROS,4X12 This part replaces 220C0412. Price: $1.52 |
| 317 |
317BB0800 |
NUT-HEX-SMALL,8MM,BLA This part replaces 317J0800. Price: $4.69 |
| 410 |
92022-1554 |
WASHER,PLAIN,8MM Price: $4.86 |
| 11009 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 11009A |
44045-057 |
GASKET,FORK CYLINDER Price: $4.86 |
| 14070 |
14070-1055 |
BODY-BREATHER,FORK Price: $261.63 |
| 14070A |
14070-1055 |
BODY-BREATHER,FORK Price: $261.63 |
| 16126 |
16126-1052 |
VALVE AIR Price: $35.06 |
| 16131 |
16131-1051 |
BODY-VALVE,FORK,ANTI- Price: $246.20 |
| 43056 |
43085-001 |
BLEEDER SET This part replaces 43056-003. Price: $24.57 |
| 43057 |
43057-003 |
CAP-BREATHER Price: $2.45 |
| 44001 |
44001-1541 |
FORK-FRONT Price: $1,788.94 |
| 44001A |
44001-1541 |
FORK-FRONT Price: $1,788.94 |
| 44005 |
44005-1131 |
PIPE-LEFT FORK OUTER Price: $395.44 |
| 44006 |
44006-1131 |
PIPE-RIGHT FORK OUTER Price: $245.90 |
| 44013 |
44013-1202 |
PIPE-FORK INNER Price: $420.06 |
| 44022 |
44022-1153 |
CYLINDER-FORK Price: $92.39 |
| 44026 |
44026-1253 |
SPRING-FRONT FORK Price: $82.51 |
| 44029 |
44029-1035 |
SEAT-FORK SPRING Price: $24.81 |
| 44037 |
44037-1111 |
HOLDER-FORK UNDER Price: $219.02 |
| 44039 |
44039-1073 |
HOLDER-FORK UPPER Price: $317.69 |
| 44065 |
44065-1084 |
BUSHING-FRONT FORK This part replaces 44065-1051. Price: $23.16 |
| 44065A |
44065-1058 |
BUSHING-FRONT FORK Price: $35.46 |
| 51044 |
51044-1027 |
TUBE-ASSY,AIR,FORK Price: $105.16 |
| 56040 |
56040-1117 |
LABEL-WARNING,SHOCKAB This part replaces 56040-1030. Price: $5.06 |
| 92001 |
44041-040 |
BOLT,SOCKET,FORK CYLINDER Price: $6.57 |
| 92001A |
92001-1957 |
BOLT,SOCKET,5X12,BLAC Price: $3.55 |
| 92002 |
92002-1158 |
BOLT,FLANGED,8X55 Price: $9.23 |
| 92002A |
92002-1163 |
BOLT,8X60 Price: $9.03 |
| 92002B |
92002-1164 |
BOLT,SOCKET,12X30 Price: $13.49 |
| 92002C |
92002-1166 |
BOLT,SOCKET,6X16 Price: $7.21 |
| 92002D |
92002-1289 |
BOLT,SOCKET,5X12 Price: $5.48 |
| 92009 |
220AA0406 |
SCREW-PAN CROS,4X6 This part replaces 92009-1324. Price: $1.67 |
| 92015 |
92210-0004 |
NUT,FLANGED,8MM This part replaces 92015-1408. Price: $5.38 |
| 92015A |
92015-1400 |
NUT,8MM Price: $5.46 |
| 92015B |
92210-0004 |
NUT,FLANGED,8MM This part replaces 92015-1408. Price: $5.38 |
| 92022 |
92022-1455 |
WASHER,FORK OUTER PIP Price: $7.69 |
| 92022A |
92022-1456 |
WASHER,FORK OUTER PIP Price: $7.68 |
| 92022B |
92022-1552 |
WASHER,SPRING,8MM Price: $2.78 |
| 92022C |
92022-1554 |
WASHER,PLAIN,8MM Price: $4.86 |
| 92033 |
92033-1047 |
RING-SNAP,FORK Price: $6.46 |
| 92037 |
92037-1454 |
CLAMP,FRONT FORK Price: $14.05 |
| 92049 |
92049-1435 |
SEAL-OIL,FORK OUTERTB This part replaces 92049-1372. Price: $23.82 |
| 92055 |
92055-1132 |
RING-O,FORK SPRING SE Price: $6.56 |
| 92055A |
92055-1164 |
RING-O,TUBE ASSY Price: $10.05 |
| 92055B |
670B2012 |
O RING,12MM This part replaces 92055-1201. Price: $3.23 |
| 92093 |
92093-1382 |
SEAL,FORK OUTER TUBE This part replaces 92093-1151. Price: $25.96 |
