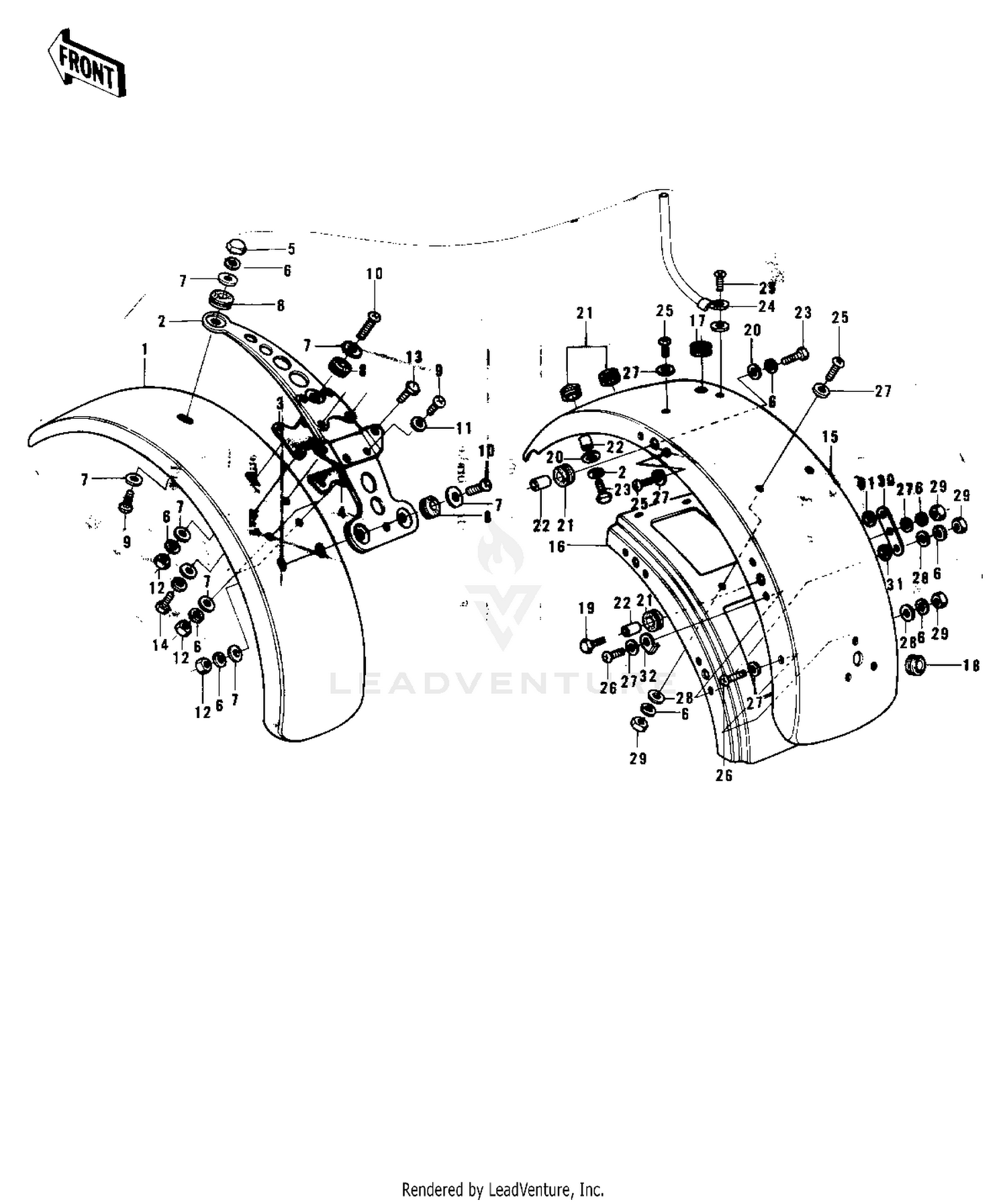

| Ref | Part Number | Description |
|---|
| 1 |
35004-071-90 |
FENDER-FR,L.GREEN Price: $81.05 |
| 2 |
35012-019 |
BRACKET,FRONT FENDER Price: $23.34 |
| 3 |
35007-002 |
DAMPER RUBBER-F.FENDR Price: $3.52 |
| 4 |
35007-003 |
DAMPER RUBBER-FR FNDR Price: $1.81 |
| 5 |
92015-009 |
NUT,6MM Price: $3.73 |
| 6 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 8 |
92075-051 |
DAMPER Price: $3.92 |
| 9 |
220AA0620 |
SCREW-PAN-CROS,6X20 This part replaces 220B0620. Price: $5.82 |
| 10 |
220E0620 |
SCREW-PAN-CROS,6X20 Price: $3.97 |
| 12 |
312AA0600 |
NUT-HEX This part replaces 312B0600. Price: $0.73 |
| 13 |
112BA0625 |
BOLT-UPSET,6X25 This part replaces 112G0625. Price: $3.72 |
| 14 |
112G0640 |
BOLT-UPSET,6X40 Price: $3.42 |
| 15 |
35022-075-90 |
FENDER-RR,L.GREEN Price: $81.51 |
| 16 |
35034-010 |
BRACE-REAR FENDER Price: $20.15 |
| 17 |
92071-010 |
GROMMET HARNESS 10MM Price: $4.12 |
| 18 |
92071-019 |
GROMMET HARNESS 10MM Price: $3.89 |
| 19 |
110N0618 |
BOLT HEX HEAD 6X18 Price: $3.77 |
| 20 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 21 |
92075-051 |
DAMPER Price: $3.92 |
| 22 |
92027-103 |
COLLAR Price: $3.58 |
| 23 |
112BA0620 |
BOLT-UPSET This part replaces 112G0620. Price: $2.28 |
| 24 |
92037-020 |
CLAMP CABLE Price: $3.42 |
| 25 |
220AA0614 |
SCREW-PAN-CROS,6X14 This part replaces 220B0614. Price: $1.48 |
| 26 |
220E0614 |
SCREW PAN HEAD 6X14 Price: $3.42 |
| 27 |
92022-024 |
WASHER,7X16X1.2 Price: $3.65 |
| 29 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 30 |
92022-200 |
WASHER-PLAIN Price: $4.54 |
| 31 |
92075-097 |
DAMPER RUBBER Price: $0.58 |
