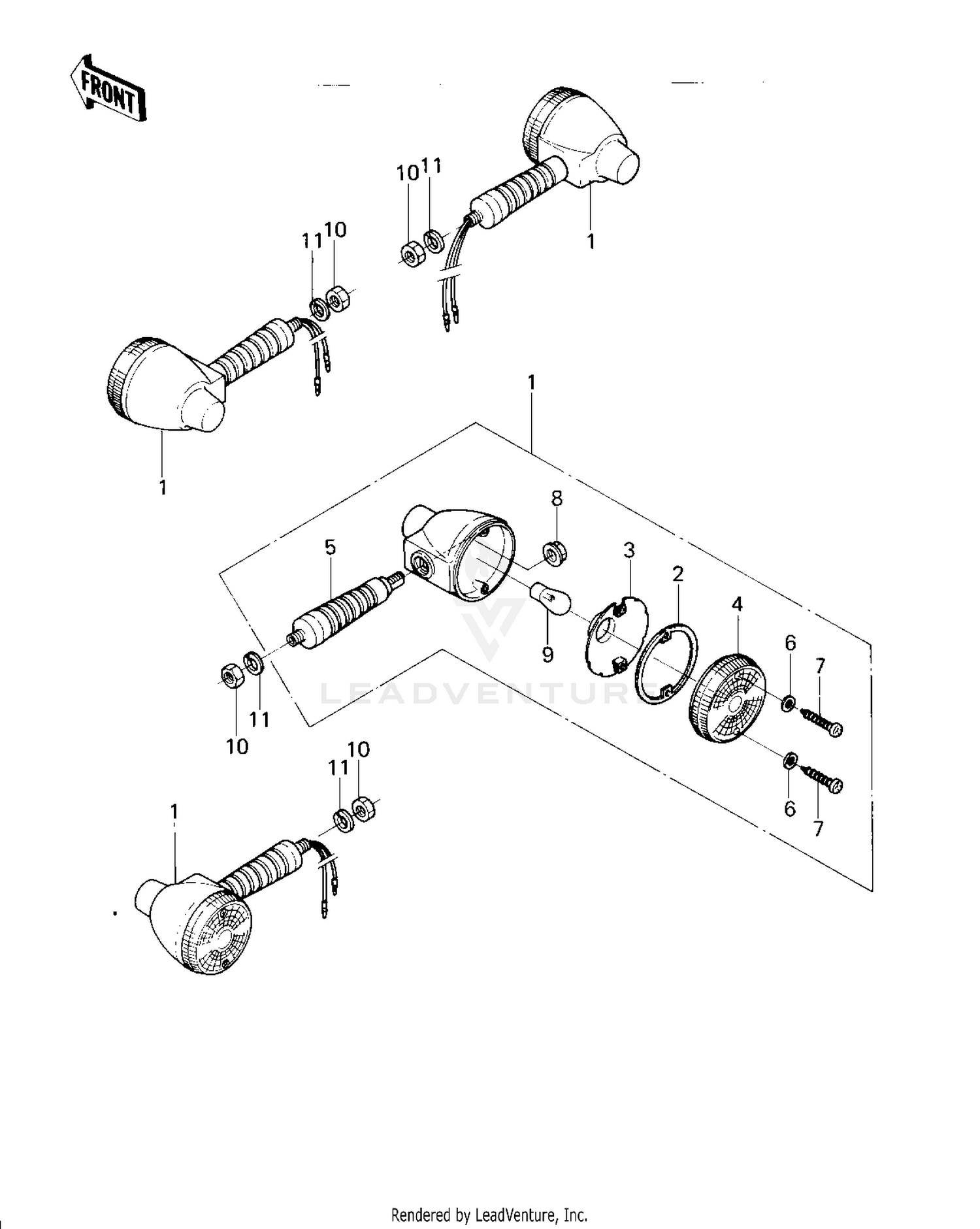

TURN SIGNALS (KM100-A6/A7)
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 23037-1087 | LAMP ASSY,SIGNAL Price: $69.77 |
| 2 | 11009-1128 | GASKET,SGNL LAMP LENS Price: $5.54 |
| 3 | 23035-1003 | REFLECTOR,SIGNAL LAMP Price: $14.34 |
| 4 | 23048-1076 | LENS-SIGNAL LAMP Price: $9.75 |
| 5 | 23051-1033 | BRACKET,SIGNAL LAMP Price: $31.86 |
| 6 | 23058-002 | WASHER,PLAIN,4MM Price: $2.49 |
| 7 | 92009-1056 | SCREW,TAPPING Price: $4.38 |
| 8 | 92015-1072 | NUT,SIGNAL LAMP Price: $3.51 |
| 9 | 92069-056 | BULB,6V 21CP Price: $6.41 |
| 10 | 315AA1000 | NUT-HEX-FINE,10MM This part replaces 315B1000. Price: $0.59 |
