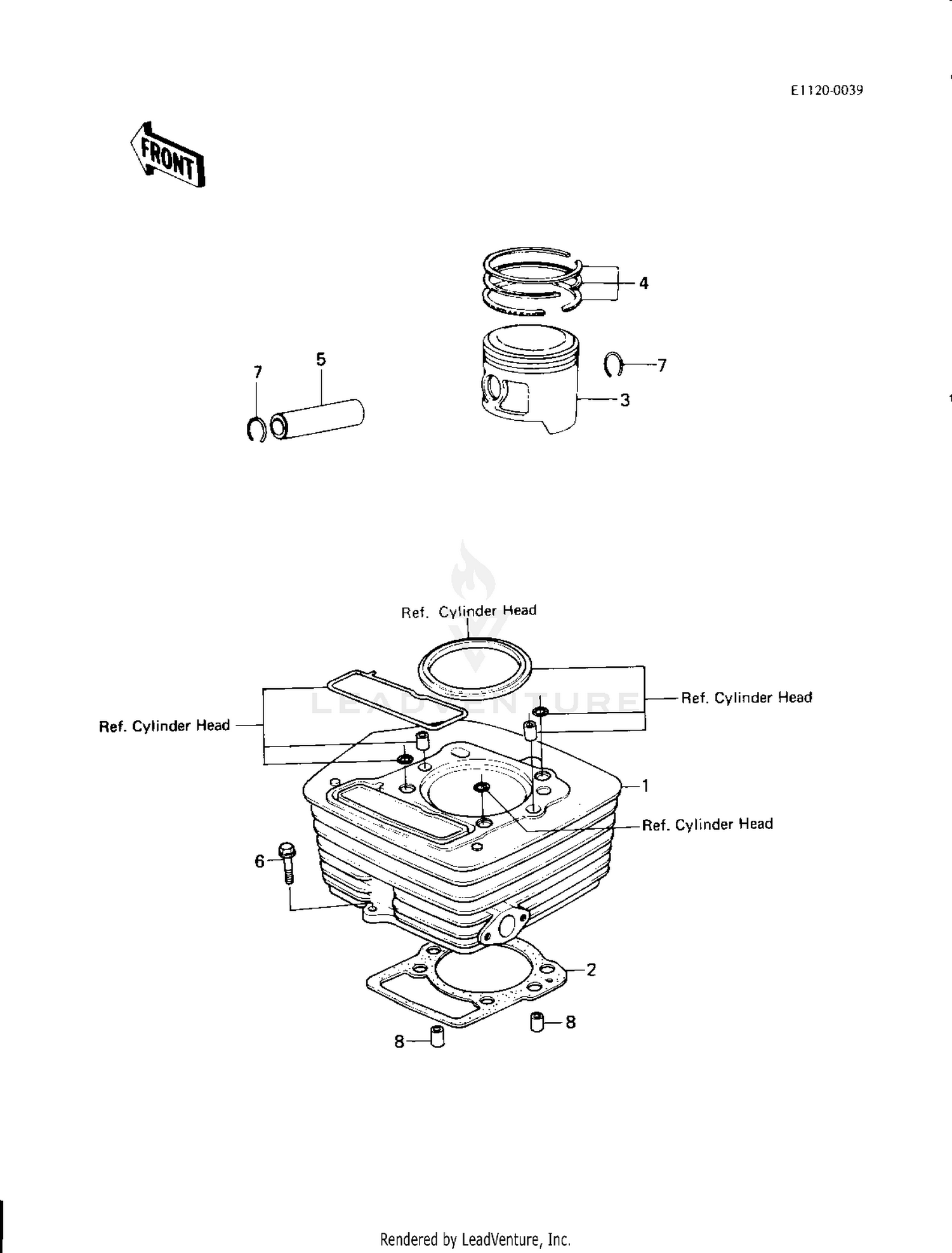

CYLINDER/PISTON
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11005-1335 | CYLINDER-ENGINE Price: $397.41 |
| 2 | 11060-1366 | GASKET,CYLINDER BASE This part replaces 11009-043. Price: $13.25 |
| 3 | 13001-083 | PISTON,STD Price: $117.83 |
| 3 | 13027-1001 | PISTON,0.040"0/S Price: $91.65 |
| 3 | 13029-1001 | PISTON,0.020"0/S Price: $91.65 |
| 4 | 13008-5005 | RING SET,STD Price: $111.09 |
| 4 | 13024-5005 | RING SET,0.040'0.S Price: $83.77 |
| 4 | 13025-5004 | RING SET,0.020'0.S Price: $111.09 |
| 5 | 13002-026 | PIN-PISTON Price: $36.90 |
| 6 | 92003-202 | BOLT Price: $6.56 |
| 7 | 92036-021 | RING-SNAP,PISTON PIN Price: $0.49 |
