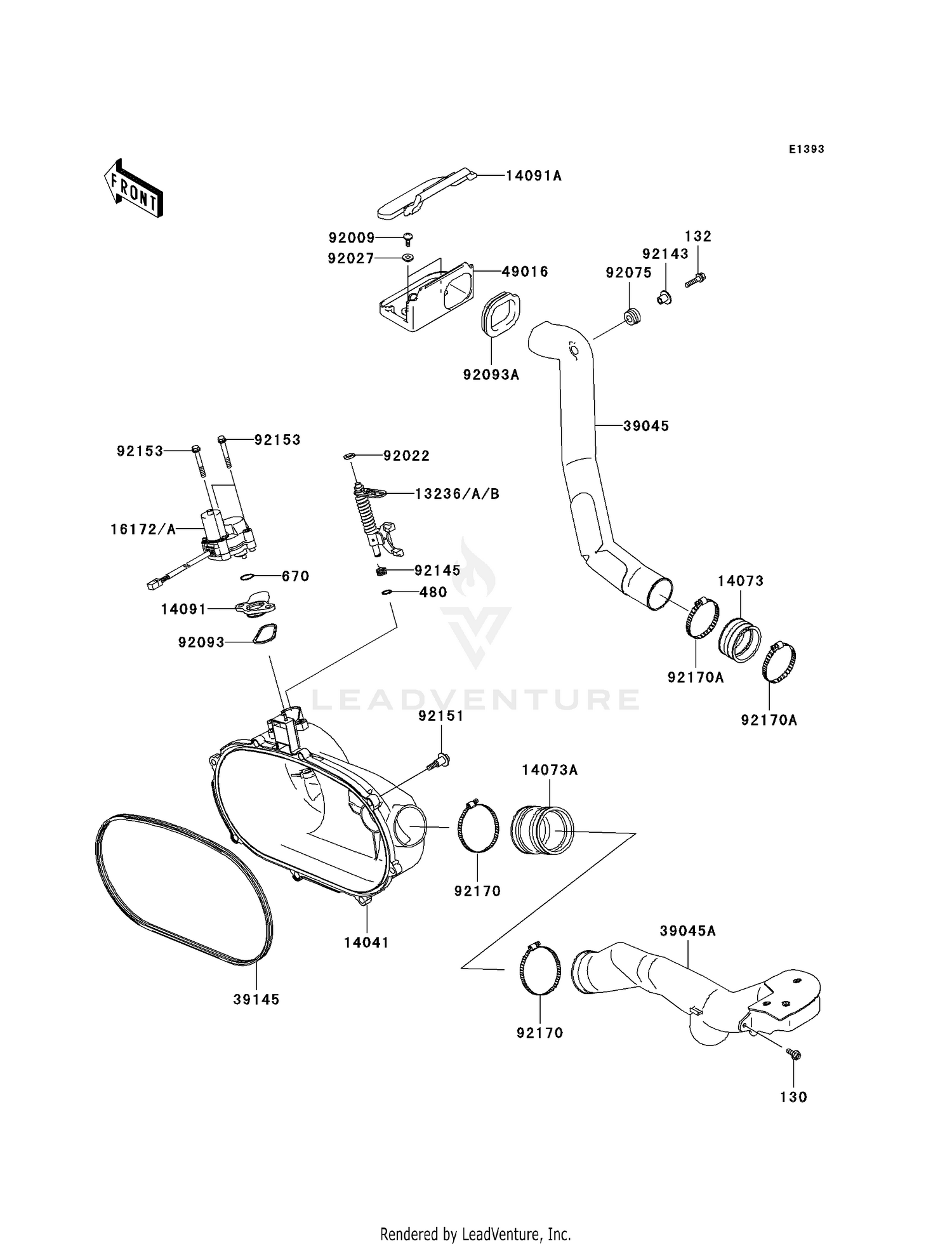

| Ref | Part Number | Description |
|---|
| 130 |
130BA0614 |
BOLT-FLANGED,6X14 Price: $1.20 |
| 132 |
92153-1148 |
BOLT,6X25 This part replaces 132BA0625. Price: $0.75 |
| 480 |
480J1000 |
CIRCLIP-TYPE-C,10MM Price: $0.65 |
| 670 |
670D3022 |
O RING Price: $2.80 |
| 13236 |
13236-0046 |
LEVER-COMP,YELLOW Price: $131.68 |
| 13236A |
13236-0047 |
LEVER-COMP,GREEN Price: $131.68 |
| 13236B |
13236-0048 |
LEVER-COMP,PAINT LESS Price: $131.68 |
| 14041 |
14041-0624 |
COVER-COMP This part replaces 14041-1156. Price: $163.76 |
| 14073 |
14073-1775 |
DUCT,JOINT Price: $4.36 |
| 14073A |
14073-1805 |
DUCT,JOINT Price: $10.86 |
| 14091 |
14092-0780 |
COVER This part replaces 14091-1421. Price: $13.37 |
| 14091A |
14091-1500 |
COVER,MUDGUARD Price: $22.83 |
| 16172 |
16172-0018 |
ACTUATOR This part replaces 16172-0006. Price: $421.70 |
| 39045 |
39045-0012 |
DUCT-ASSY,SNORKEL,IN Price: $28.46 |
| 39045A |
39045-1068 |
DUCT-ASSY,SNORKEL,EX Price: $32.00 |
| 39145 |
39145-0702 |
TRIM-SEAL This part replaces 39145-1135. Price: $19.32 |
| 49016 |
49016-1218 |
COVER-SEAL,BELT CONVE Price: $46.96 |
| 92009 |
92009-1197 |
SCREW,TAPPING,5X14 Price: $3.92 |
| 92022 |
92022-1829 |
WASHER,10.2X16X1 Price: $4.31 |
| 92027 |
92027-1168 |
COLLAR,L=4.6 Price: $5.00 |
| 92075 |
92075-1123 |
DAMPER,RUBBER Price: $5.00 |
| 92093 |
92093-1548 |
SEAL Price: $10.06 |
| 92093A |
92093-1572 |
SEAL,COVER MUDGUARD Price: $4.34 |
| 92143 |
92143-1353 |
COLLAR Price: $8.58 |
| 92145 |
92145-1567 |
SPRING Price: $2.78 |
| 92151 |
92151-1686 |
BOLT,FLANGED,6X30 Price: $9.43 |
| 92153 |
92153-0678 |
BOLT,6X47 Price: $3.07 |
| 92170 |
92170-1763 |
CLAMP Price: $5.70 |
