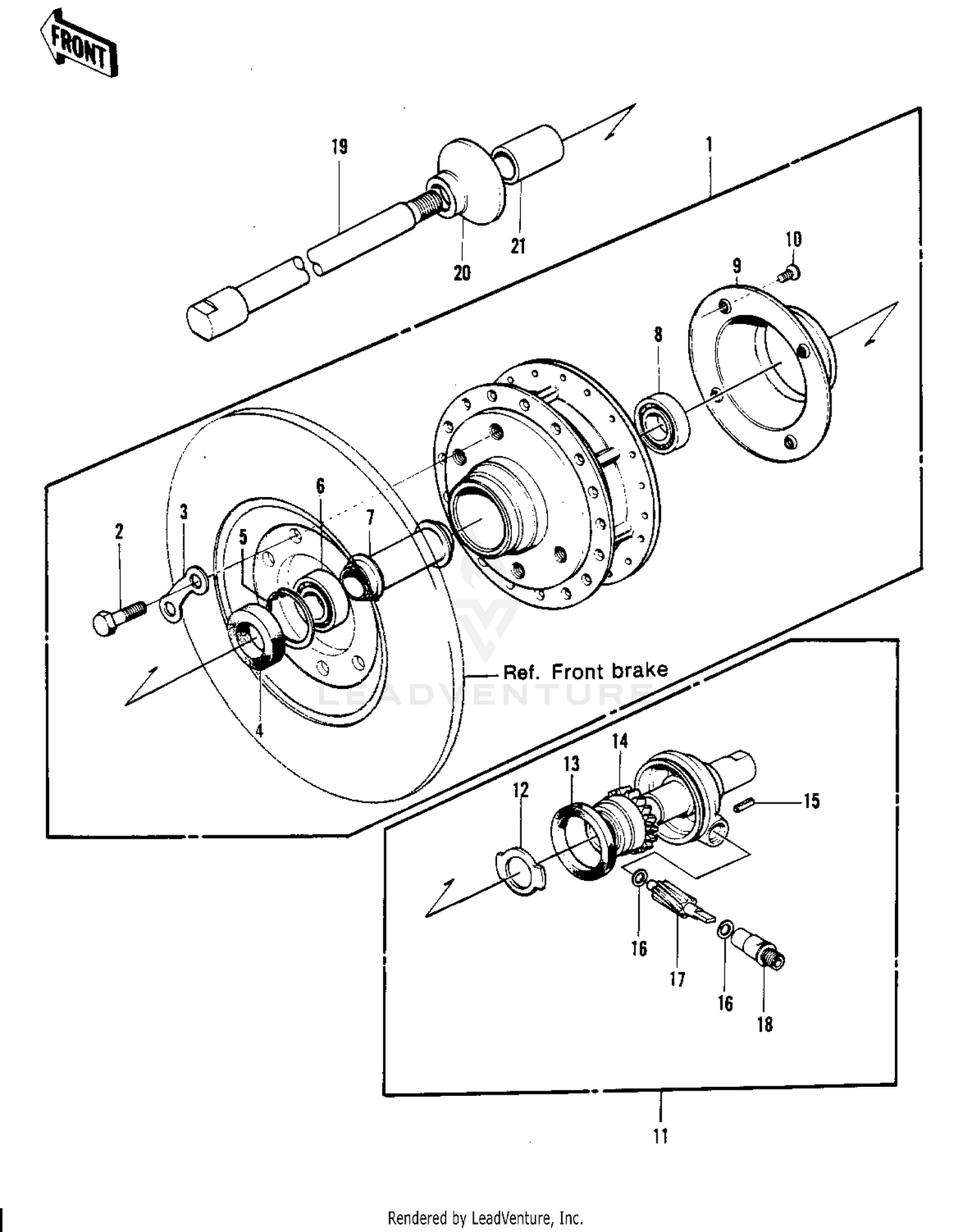

FRONT HUB ('74-'75 S3/S3-A)
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 41034-024 | DRUM-ASSY,FR BRK Price: $149.23 |
| 2 | 92001-104 | BOLT-HEX HEAD,8X28 Price: $13.57 |
| 3 | 92088-016 | WASHER-LOCK Price: $5.28 |
| 4 | 92052-005 | OIL SEAL WTC25428 Price: $24.82 |
| 5 | 92033-1041 | RING-SNAP,42MM Price: $6.16 |
| 6 | 601B6302 | BEARING BALL #6302 Price: $9.05 |
| 7 | 41039-021 | SPACER-FR AXLE BRG Price: $7.34 |
| 8 | 601B6302Z | BEARING BALL #6302Z Price: $27.38 |
| 9 | 41042-011 | DUST COVER Price: $15.50 |
| 10 | 222E0408A | SCREW OVL CNTSNK 4X8 Price: $3.42 |
| 11 | 41078-004 | GEAR BOX ASSY Price: $69.44 |
| 12 | 41064-1005 | RECEIVER,SPEED GEAR Price: $11.21 |
| 13 | 92050-049 | OIL SEAL Price: $22.81 |
| 14 | 41059-020 | GEAR,SPEEDOMETER Price: $19.39 |
| 15 | 41082-001 | PIN,SPRING Price: $3.92 |
| 16 | 41063-001 | WASHER,5.1X9X0.4 Price: $4.69 |
| 17 | 41060-013 | PINION-SPEEDOMETER Price: $17.25 |
| 18 | 41062-005 | BUSH,SPEEDMETER CABLE Price: $19.48 |
| 19 | 41068-038 | AXLE-FRONT Price: $28.36 |
| 20 | 41042-012 | DUST COVER-FRONT AXLE Price: $16.57 |
