| Ref | Part Number | Description |
|---|
| 20 |
515177770 |
Locker Price: $2.29 |
| 25 |
732610072 |
Push Nut Price: $2.29 |
| 30 |
293750001 |
Tie Wrap 94 mm Price: $1.03 |
| 90 |
293750008 |
Tie Wrap 368 mm Price: $1.04 |
| 100a |
415129497 |
Crush Ring Price: $7.99 |
| 100b |
415129498 |
O-Ring Price: $13.49 |
| 100c |
415129499 |
O-Ring Price: $7.39 |
| 100d |
415129942 |
Fuel Injector Cover Price: $39.99 |
| 110 |
420430930 |
Gasket Price: $4.99 |
| 120 |
420441187 |
Torx Flange Screw M10 X 90 -SW 13/T50 Price: $19.99 |
| 130 |
130BA0630 |
BOLT-FLANGED,6X30 Price: $1.46 |
| 130 |
234001410 |
Flat Washer 10 mm Price: $1.29 |
| 220 |
420924724 |
Hose Nipple Price: $15.49 |
| 300 |
420889202 |
Throttle Body Price: $1,309.99 |
| 310 |
512060943 |
Gemi Clamp Price: $10.99 |
| 500a |
415129441 |
Clutch Kit Price: $114.99 |
| 500b |
415129333 |
Brush Kit Price: $63.99 |
| 500c |
415129341 |
Starter Bolt Price: $16.49 |
| 500d |
415129342 |
O-Ring Kit Price: $13.99 |
| 540 |
Not |
Available As Spare Part - Not Applicable |
| 1000 |
512060478 |
Rear Support, PTO Price: $32.99 |
| 1020 |
250200146 |
Conical Spring Washer M8 Price: $1.09 |
| 1030 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip Price: $1.99 |
| 1200 |
512060714 |
Front Support, PTO Price: $92.99 |
| 1300 |
512060559 |
Rear Support, MAG Price: $32.99 |
| 1310 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip Price: $1.69 |
| 1400 |
512060469 |
Front Support, MAG Price: $32.99 |
| 1500 |
512060729 |
Rubber Mount Price: $67.99 |
| 1510 |
512061507 |
Vibration Damper This part replaces 512060387. Price: $44.99 |
| 1515 |
512060448 |
Rubber Mount Price: $52.99 |
| 1520 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip Price: $1.99 |
| 1540 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 1550 |
207683044 |
Hex. Flange Screw M8 X 30 Price: $1.69 |
| 1560 |
503183200 |
Yellow, Washer Price: $3.29 |
| 1580 |
250000796 |
Hex. Flange Screw M8 X 1.25 X 25 Price: $2.19 |
| 1700 |
512060766 |
Stopper Price: $10.99 |
| 1710 |
512060576 |
Stopper Support Price: $31.99 |
| 1720 |
207562544 |
Hex. Flange Screw M6 X 25 Price: $1.69 |
| 2640 |
512060944 |
Bleeder's Collector Outlet Hose Price: $29.99 |
| 2670 |
293650214 |
Norma Spring Clamp Price: $15.99 |
| 2690 |
293650046 |
Oetiker Clamp Price: $2.99 |
| 3210 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 Price: $1.49 |
| 3300a |
219704410 |
Polyurethane Hose 10000Mm Long Price: $57.99 |
| 3300b |
219704410 |
Polyurethane Hose 10000Mm Long Price: $57.99 |
| 3300c |
293650234 |
Crimp Clamp Price: $5.49 |
| 3300d |
270600005 |
Solenoid Valve This part replaces 512061078. Price: $119.99 |
| 3300e |
219704352 |
Was 420660574 Pressure Hose 280 mm Price: $229.99 |
| 3300f |
219704399 |
Was 409901700 Tubing (9 mm) Price: $86.99 |
| 3300h |
293710068 |
T-Fitting Price: $8.49 |
| 3300j |
219704352 |
Was 420660574 Pressure Hose 280 mm Price: $229.99 |
| 3300k |
219704352 |
Was 420660574 Pressure Hose 280 mm Price: $229.99 |
| 3300m |
512060827 |
Hose Support Price: $2.19 |
| 3300n |
512060930 |
SPRING - Call your local BRP dealership Price: $5.09 |
| 3310 |
512060822 |
Manifold Support Price: $11.99 |
| 3315 |
210251150 |
Hex Flange Screw M5 X 11 Price: $2.19 |
| 3320 |
512060695 |
LH Formed Hose Price: $8.49 |
| 3330 |
512060694 |
RH Formed Hose Price: $8.49 |
| 3690 |
414274500 |
Circlip Price: $0.92 |
| 3700 |
219704399 |
Was 409901700 Tubing (9 mm) Price: $86.99 |
| 3730 |
512060313 |
Protector Price: $10.99 |
| 3800 |
512060859 |
Upper Housing Price: $9.09 |
| 3810 |
512060860 |
Lower Housing Price: $17.49 |
| 3820 |
512061250 |
Handle Ass'y This part replaces 512061051. Price: $129.99 |
| 3840 |
732601143 |
Flange Screw Price: $4.19 |
| 4200 |
512060953 |
Ignition Coil Price: $134.99 |
| 4220 |
512061126 |
Ignition Cable, 177mm long Price: $29.99 |
| 4250 |
710000992 |
Clip Price: $4.39 |
| 4300 |
250000253 |
Hex. Flange Screw M6 X 1.0 X 30 Price: $2.29 |
| 4330 |
293100003 |
Nut Welded, M6 Price: $9.29 |
| 4400 |
512060888 |
Ignition Coils Support Price: $11.99 |
| 4600 |
512060756 |
Calibrated Module Price: $749.99 |
| 4620 |
512060858 |
Calibrated Module Support Price: $14.49 |
| 4640 |
250200040 |
Flat Washer Price: $1.99 |
| 4650 |
250000760 |
Torx Screw Truss Head K50X20 T20 Price: $2.19 |
| 4660 |
219704709 |
NEEDS DESCRIPTION This part replaces 219704409. Price: $11.63 |
| 5000 |
415131139 |
Spark Plug NGK PFR7AB This part replaces 415129484. Price: $29.99 |
| 5050 |
512060993 |
Clamp Price: $5.49 |
| 5600 |
512060847 |
Noise Shield Price: $16.99 |

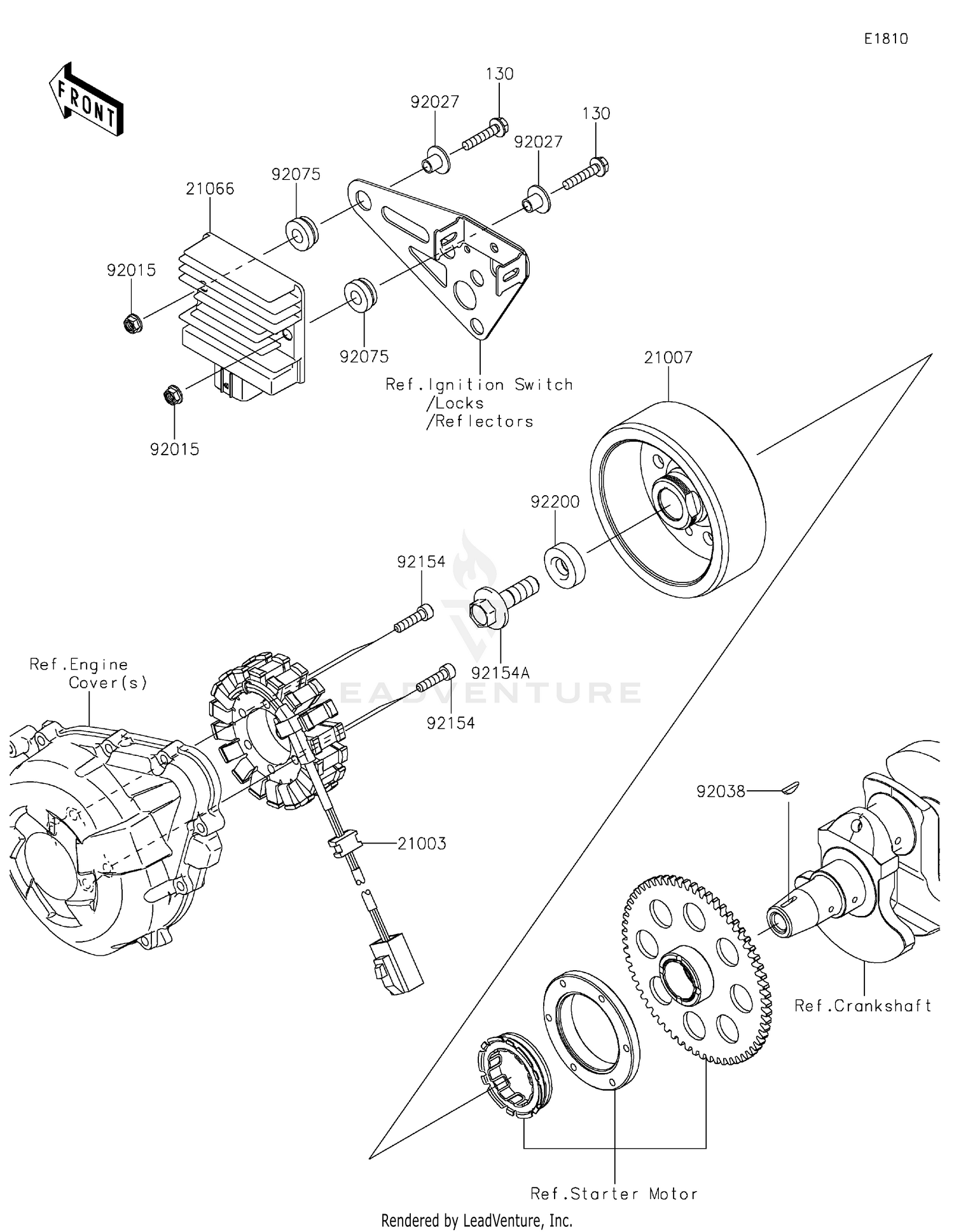

| 21003 |
21003-0198 |
STATOR This part replaces 21003-0172. Price: $576.56 |
| 21007 |
21007-0646 |
ROTOR Price: $578.63 |
| 21066 |
21066-0756 |
REGULATOR-VOLTAGE Price: $209.78 |
| 92015 |
92015-1233 |
NUT,FLANGED,6MM,BLACK Price: $5.52 |
| 92027 |
92027-1651 |
COLLAR,FLANGED,L=12.1,BLACK Price: $5.57 |
| 92038 |
92038-1060 |
KEY Price: $7.77 |
| 92075 |
92075-277 |
DAMPER Price: $2.84 |
| 92154 |
92154-0477 |
BOLT,SOCKET,6X25 Price: $1.94 |
| 92154A |
92154-2650 |
BOLT,FLANGED,12X40 Price: $12.58 |
