| Ref | Part Number | Description |
|---|
| 18a |
515176088 |
Start/RER Button Price: $21.99 |
| 19 |
515175926 |
Switch Housing Plate Price: $21.99 |
| 20 |
250000263 |
Torx Screw #8-18 Price: $1.09 |
| 21 |
515177362 |
Emergency Stop Switch This part replaces 515177061. Price: $88.99 |
| 22 |
515177310 |
Emergency Stop Switch Support This part replaces 515176825. Price: $9.39 |
| 23 |
250000263 |
Torx Screw #8-18 Price: $1.09 |
| 48 |
515176867 |
STEERING WIRING HARNESS ASS'Y - Call your local BRP dealership Price: $80.99 |
| 49 |
515175817 |
Male Terminal Housing, 8 Circuits Price: $8.99 |
| 50 |
515175662 |
Male Terminal Housing, 6 Circuits Price: $8.99 |
| 77 |
293750001 |
Tie Wrap 94 mm Price: $1.03 |
| 77 |
293750002 |
Tie Wrap 142 mm Price: $1.25 |
| 77 |
293750008 |
Tie Wrap 368 mm Price: $1.04 |
| 77 |
414115200 |
Tie-Rap 180 mm Price: $0.11 |

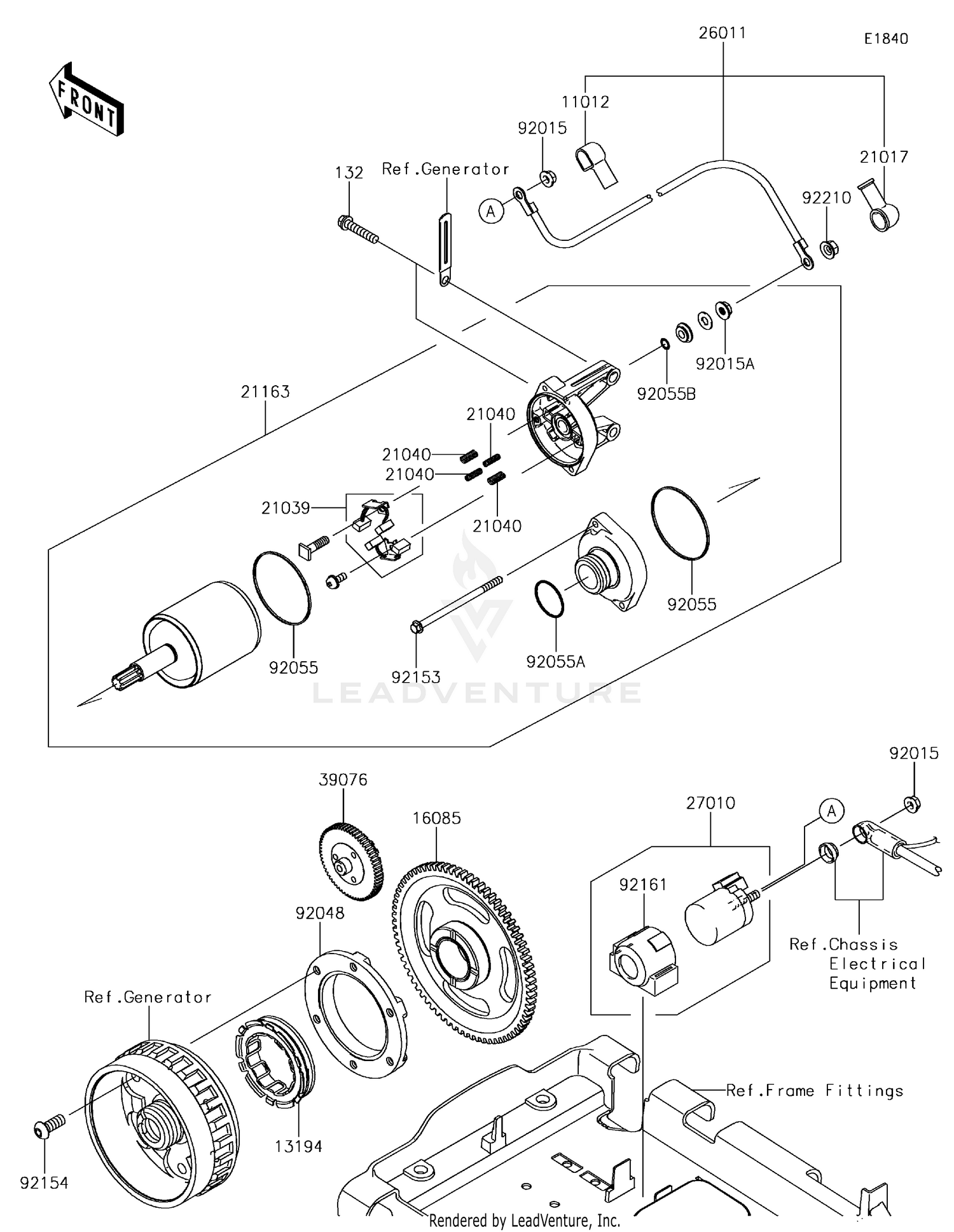

| 11012 |
11012-1354 |
CAP,TERMINAL Price: $10.19 |
| 13194 |
13194-1094 |
CLUTCH-ONEWAY Price: $126.13 |
| 16085 |
16085-0597 |
GEAR,STARTER Price: $153.19 |
| 21017 |
21017-017 |
GROMMET,STARTER TERMINAL Price: $9.43 |
| 21039 |
21039-0004 |
BRUSH,CARBON Price: $117.72 |
| 21040 |
21040-0003 |
SPRING-BRUSH Price: $9.79 |
| 21163 |
21163-0037 |
STARTER-ELECTRIC Price: $746.53 |
| 26011 |
26011-0719 |
WIRE-LEAD Price: $33.54 |
| 27010 |
27010-0766 |
SWITCH,MAGNETIC Price: $127.72 |
| 39076 |
39076-0005 |
LIMITER,STARTER Price: $242.50 |
| 92015 |
92015-1367 |
NUT,FLANGED,6MM Price: $3.69 |
| 92015A |
92015-1476 |
NUT,STARTER MOTOR Price: $4.31 |
| 92048 |
92048-0002 |
RACE,ONE WAY CLUTCH Price: $108.96 |
| 92055 |
92055-0136 |
RING-O Price: $7.75 |
| 92055A |
92055-1276 |
RING-O Price: $9.91 |
| 92055B |
92055-1370 |
RING-O,4.5X2.0 Price: $4.69 |
| 92153 |
92153-1850 |
BOLT Price: $11.93 |
| 92154 |
92154-0421 |
BOLT,TORX,8X20 Price: $4.72 |
| 92161 |
92161-1722 |
DAMPER,MAGNETIC SWITCH Price: $19.64 |
| 92210 |
92210-0188 |
NUT,6MM Price: $2.15 |
