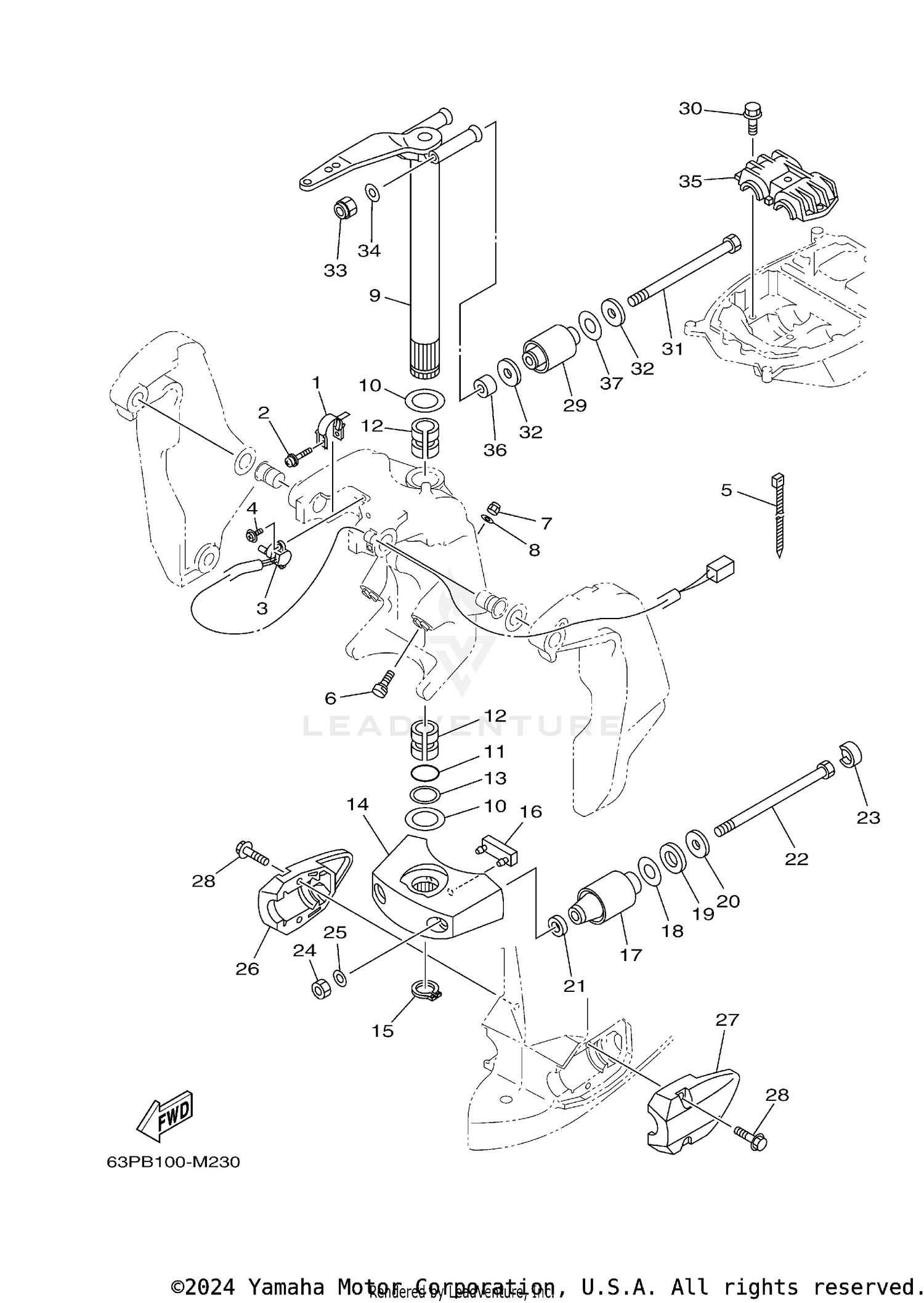

| Ref | Part Number | Description |
|---|
| 1 |
64E-43139-11-00 |
CAM, TRIM SENDER This part replaces 64E-43139-10-00. Price: $17.90 |
| 2 |
90159-05059-00 |
SCREW, WITH WASHER Price: $3.55 |
| 3 |
67H-83672-03-00 |
TRIM SENDER This part replaces 67H-83672-01-00. Price: $178.99 |
| 4 |
97985-06216-00 |
SCREW, WITH WASHER Price: $3.20 |
| 5 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 6 |
61A-43376-00-00 |
BOLT, THRUST RECEIVER This part replaces 63P-43376-00-00. Price: $65.15 |
| 7 |
95780-10300-00 |
NUT, FLANGE Price: $13.00 |
| 8 |
92990-10600-00 |
WASHER, PLATE This part replaces 92995-10600-00. Price: $3.00 |
| 9 |
66K-42510-02-8D |
STEERING BRACKET ASSY Price: $727.25 |
| 10 |
90201-38M60-00 |
WASHER, PLATE Price: $8.10 |
| 11 |
93210-37MH7-00 |
O-RING Price: $6.40 |
| 12 |
90386-38M89-00 |
BUSH This part replaces 90386-38M32-00. Price: $46.25 |
| 13 |
90202-40M47-00 |
WASHER, PLATE Price: $9.10 |
| 14 |
68V-44551-00-8D |
HOUSING, LOWER MOUNT RUBBER 1 Price: $217.55 |
| 15 |
93410-36102-00 |
CIRCLIP This part replaces 93410-37M04-00. Price: $10.40 |
| 16 |
61A-44575-01-00 |
DAMPER, LOWER MOUNT RUBBER This part replaces 61A-44575-00-00. Price: $5.55 |
| 18 |
90201-35008-00 |
WASHER, PLATE Price: $7.60 |
| 19 |
90202-32M19-00 |
WASHER, PLATE Price: $10.40 |
| 20 |
90201-16M55-00 |
WASHER, PLATE Price: $14.45 |
| 21 |
90201-15M58-00 |
WASHER, PLATE Price: $12.70 |
| 22 |
90109-14007-00 |
BOLT Price: $28.85 |
| 23 |
69J-44533-00-00 |
DAMPER, UPPER MOUNT RUBBER Price: $10.10 |
| 24 |
95380-14600-00 |
NUT Price: $11.40 |
| 25 |
92990-14600-00 |
WASHER This part replaces 92995-14600-00. Price: $7.20 |
| 26 |
63P-44553-00-8D |
COVER, LOWER MOUNT Price: $79.30 |
| 27 |
63P-44556-00-8D |
COVER, LOWER MOUNT 2 Price: $80.05 |
| 28 |
90119-10058-00 |
BOLT, WITH WASHER This part replaces 97575-10540-00. Price: $6.60 |
| 29 |
63P-44514-00-00 |
MOUNT DAMPER, UPPER SIDE Price: $102.35 |
| 30 |
90119-10024-00 |
BOLT, WITH WASHER Price: $10.40 |
| 31 |
90101-14002-00 |
BOLT This part replaces 90109-14005-00. Price: $24.45 |
| 32 |
90201-16M01-00 |
WASHER, PLATE Price: $7.15 |
| 33 |
90185-14M00-00 |
NUT, SELF-LOCKING Price: $18.45 |
| 34 |
92990-14600-00 |
WASHER This part replaces 92995-14600-00. Price: $7.20 |
| 35 |
63P-44511-00-00 |
COVER, UPPER MOUNT Price: $34.60 |
| 36 |
90387-14004-00 |
COLLAR Price: $9.10 |
