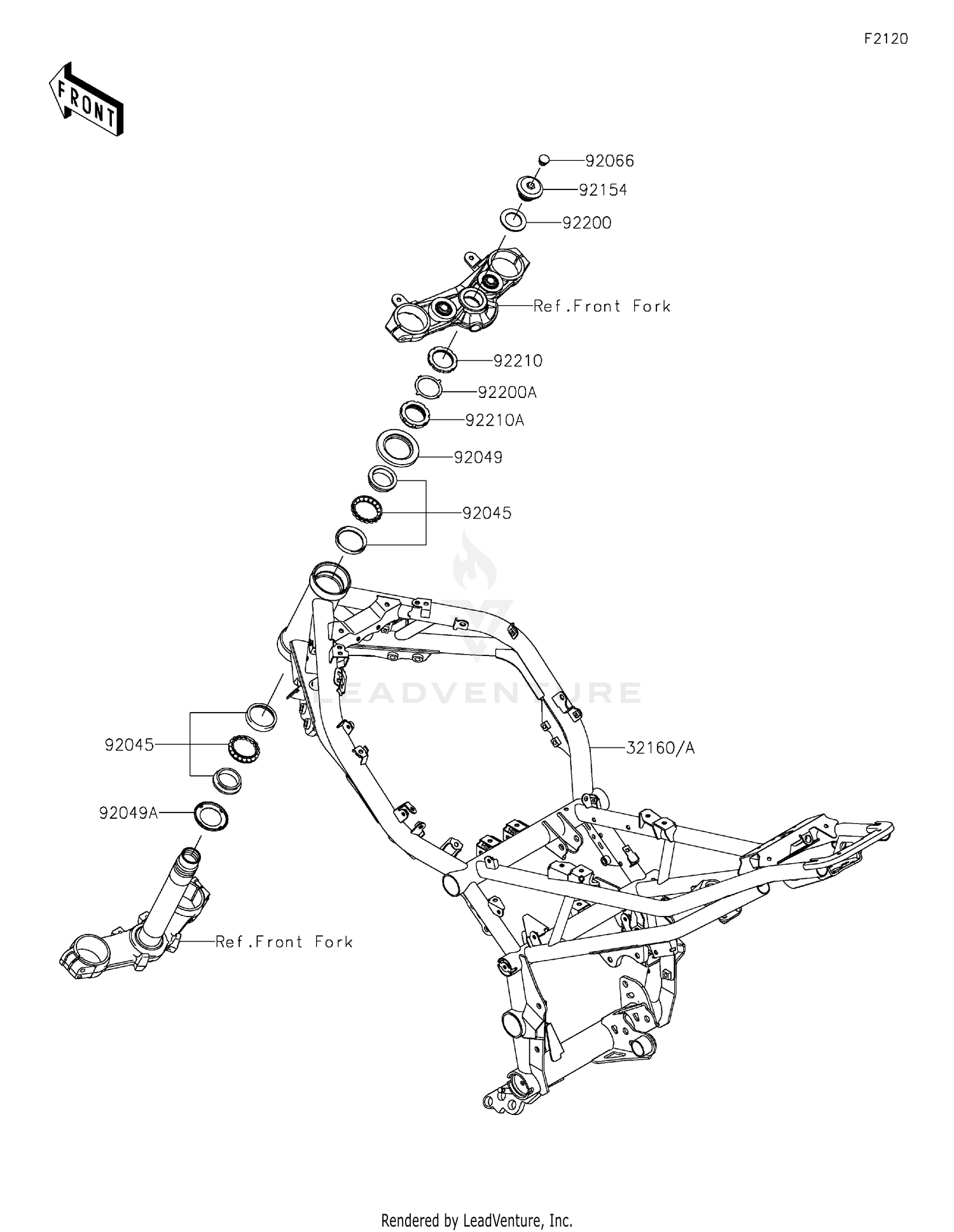

Frame
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 32160 | 32160-1920-18R | FRAME-COMP,F.S.BLACK Price: $1,985.07 |
| 32160A | 32160-1920-46Y | FRAME-COMP,G.B.GREEN Price: $1,985.07 |
| 92045 | 92045-1384 | BEARING-BALL,SF07A17PX1V1 Price: $45.69 |
| 92049 | 92049-0131 | SEAL-OIL Price: $21.42 |
| 92049A | 92049-0137 | SEAL-OIL Price: $17.46 |
| 92066 | 92066-0981 | PLUG Price: $1.47 |
| 92154 | 92154-4351 | BOLT,26MM Price: $28.75 |
| 92200 | 92200-0753 | WASHER,27X42X2.3 Price: $5.33 |
| 92200A | 92200-0781 | WASHER Price: $2.32 |
| 92210 | 92210-0534 | NUT,STEERING STEM,35MM Price: $13.18 |
