| Ref | Part Number | Description |
|---|
| 10aa |
417224210 |
Fixed Flange Ass'y Price: $189.99 |
| 10abb |
293250389 |
Bushing Price: $21.99 |
| 10abc |
293370137 |
Circlip Price: $3.39 |
| 10abd |
417224153 |
Back Torque Roller Price: $17.49 |
| 10abf |
417224916 |
Pulley Roller Ext This part replaces 417224458. Price: $35.99 |
| 10abg |
417224510 |
Pin Price: $9.95 |
| 10abh |
250400101 |
Spring Pin 2.6MM X 20.5MM Price: $1.09 |
| 10acb |
417224910 |
Stopper Spring Price: $10.99 |
| 10acc |
417224614 |
Spring Guide Price: $10.99 |
| 10acd |
417224947 |
Roller Pulley Ass'y This part replaces 417224285. Price: $36.99 |
| 10ace |
417224204 |
Axle - 10mm Price: $10.99 |
| 10acf |
417224868 |
Thrust Washer This part replaces 417224009. Price: $2.39 |
| 10acg |
250000763 |
Torx-Truss M/S M5 X 14 S.Grip Price: $2.29 |
| 10b |
417224168 |
Clutch Spring Price: $29.99 |
| 10c |
417224003 |
Seat Spring Price: $10.99 |
| 10d |
293370116 |
Circlip Price: $3.39 |
| 10e |
417224290 |
Ramp 880 Ass'y Price: $31.99 |
| 10f |
417224694 |
Pin Ramp Price: $10.99 |
| 10g |
250000763 |
Torx-Truss M/S M5 X 14 S.Grip Price: $2.29 |
| 10h |
417224680 |
Coupling Flange Price: $46.99 |
| 10j |
250000757 |
Button Head Torx Screw M8 X 25 S.Gr Price: $2.09 |
| 20 |
250200144 |
Conical Spring Washer M14 Price: $4.49 |
| 30 |
417300522 |
Pulley Drive Bolt M14 X 144 Price: $33.99 |
| 100ac |
417127016 |
Pulley Roller Price: $25.99 |
| 100ad |
417127294 |
Pivot Stud Price: $14.99 |
| 100ae |
250200009 |
Lock Washer 8 mm Price: $2.19 |
| 100af |
250400070 |
Spring Pin Price: $2.09 |
| 100bb |
417127318 |
Bushing ID 41mm OD 45mm X 19mm L Price: $19.49 |
| 100bc |
293370049 |
Circlip Price: $5.09 |
| 100cb |
417127318 |
Bushing ID 41mm OD 45mm X 19mm L Price: $19.49 |
| 100cc |
293370049 |
Circlip Price: $5.09 |
| 100d |
417127118 |
Blue Spring Price: $45.99 |
| 100e |
417127116 |
Swivel Abutment Price: $9.59 |
| 100f |
250000757 |
Button Head Torx Screw M8 X 25 S.Gr Price: $2.09 |
| 100g |
415129604 |
Calibration Ass'y Price: $22.49 |
| 100h |
250000981 |
Socket Screw M5 X 25 Price: $1.69 |
| 100j |
234051410 |
Flat Washer M5 Price: $0.55 |
| 100k |
232551414 |
Elastic Stop Nut M5 Price: $0.89 |
| 100m |
417127155 |
Washer Price: $8.39 |
| 100n |
504152574 |
Ball Bearing Price: $35.99 |
| 200 |
417300571 |
Drive Belt Price: $239.99 |
| 300 |
417300620 |
Belt Guard This part replaces 417300479. Price: $75.99 |
| 330 |
417300525 |
Front Retaining Hook Price: $10.99 |
| 340 |
390909200 |
Avex Rivet Price: $0.30 |
| 360 |
417300557 |
CVT Cooling Duct Price: $29.99 |
| 370 |
293150103 |
Pop Rivet 3/16" Price: $0.57 |
| 450 |
417300583 |
Front Guard Support Price: $14.99 |
| 480 |
207561044 |
Flange Screw M6 X 10, Scotch Grip Price: $7.39 |
| 500 |
417300633 |
Rear Guard Support This part replaces 417300596. Price: $14.49 |
| 510 |
207562056 |
Hex. Flange Screw M6 X 20 Price: $2.19 |

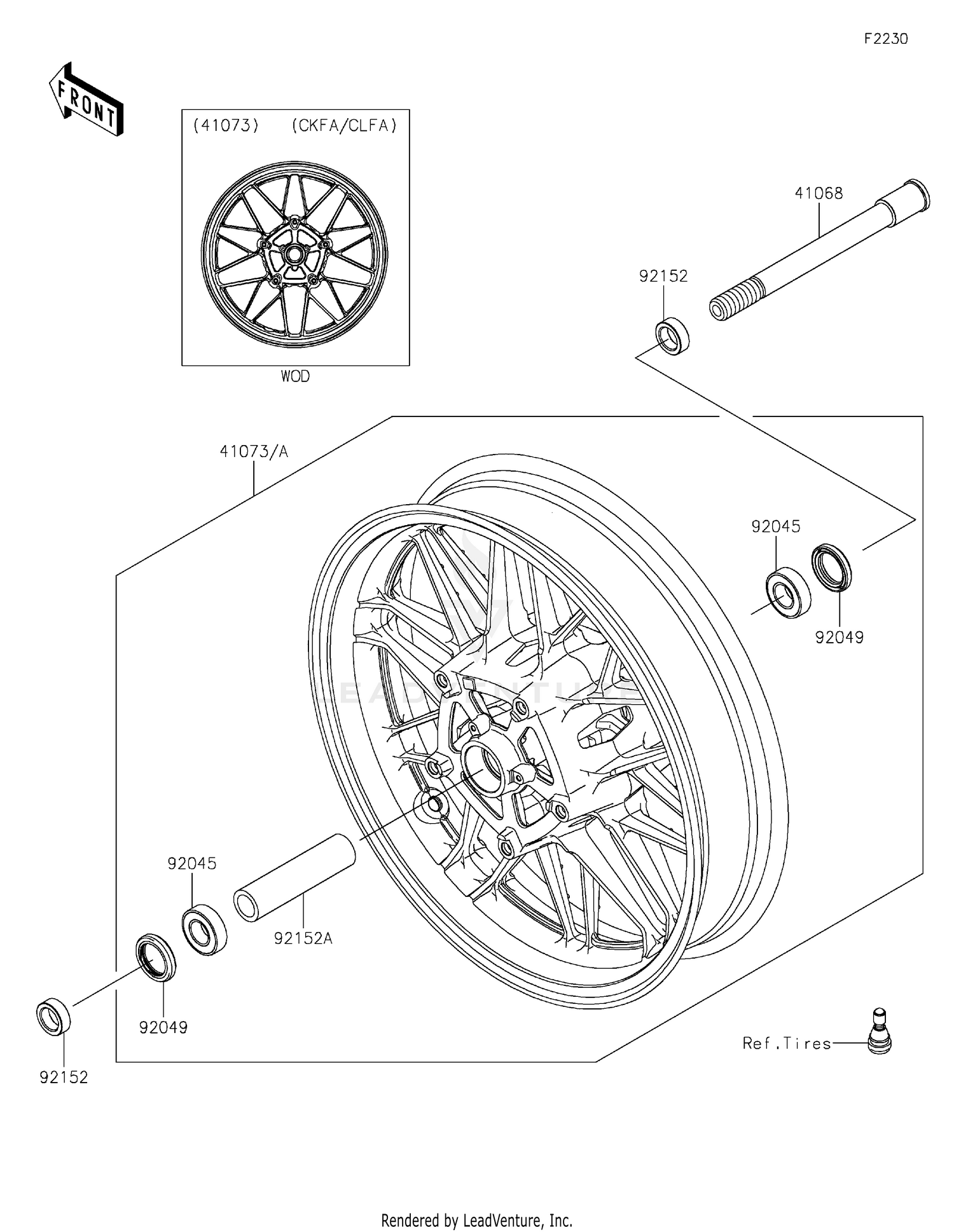

| 41068 |
41068-0618 |
AXLE,FR,20X199 Price: $81.84 |
| 41073 |
41073-0722-18F |
WHEEL-ASSY,FR,G.BLACK Price: $911.62 |
| 41073A |
41073-0780-60P |
WHEEL-ASSY,FR,G.BLACK Price: $956.38 |
| 92045 |
92045-0820 |
BEARING-BALL,20X42X12 Price: $15.87 |
| 92049 |
92049-1057 |
SEAL-OIL,BJN30427-C3 Price: $9.28 |
| 92152 |
92152-2420 |
COLLAR,20X30X10.5 Price: $14.37 |
