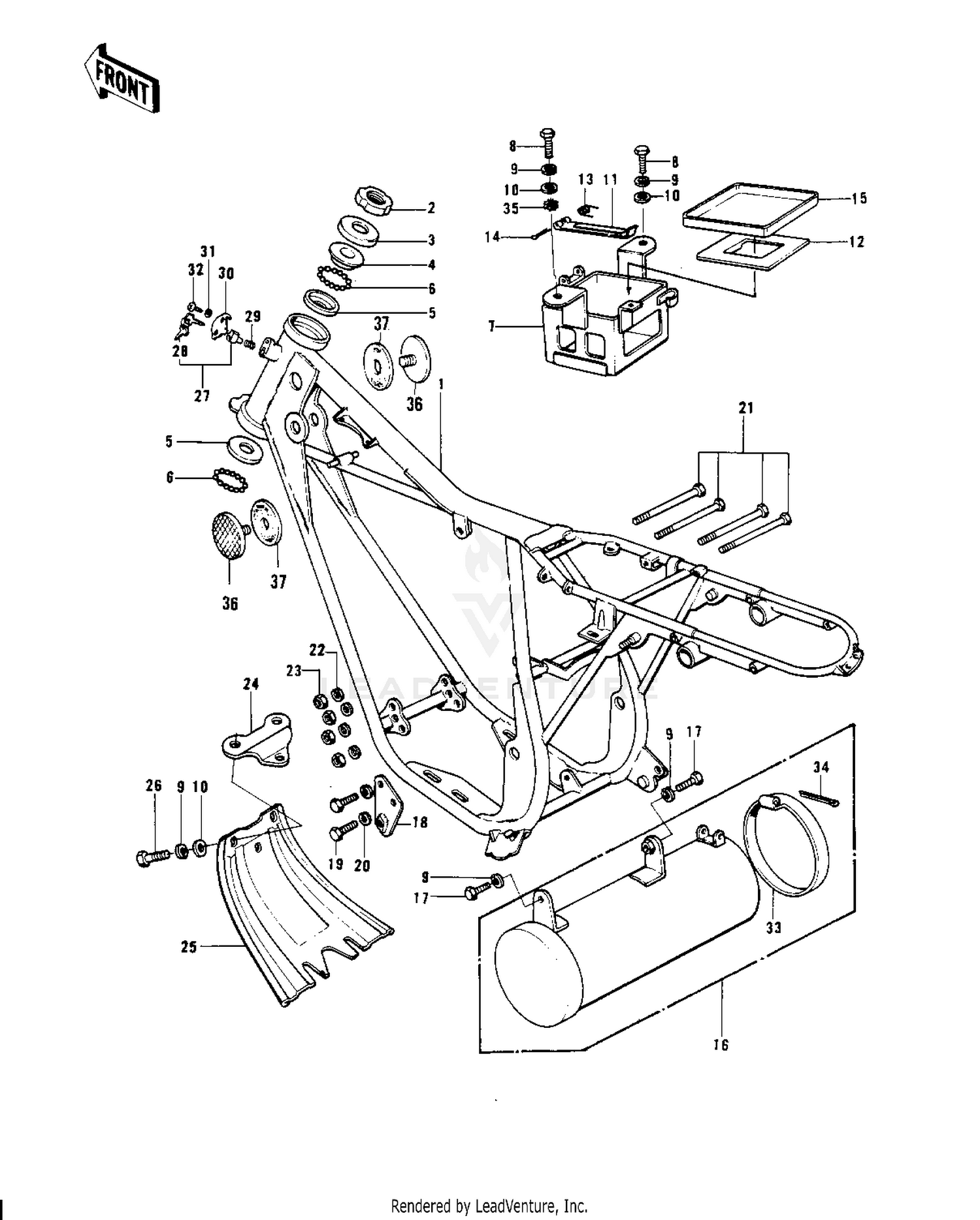

| Ref | Part Number | Description |
|---|
| 2 |
92090-006 |
NUT STEERING STEM LCK Price: $15.04 |
| 3 |
46098-004 |
CAP STEERING STEM Price: $6.16 |
| 4 |
92047-006 |
CONE STRNG STEM BERNG Price: $12.67 |
| 5 |
92048-004 |
RACE BEARING Price: $11.51 |
| 6 |
600A0600 |
BALL-STEEL,3/16 Price: $1.07 |
| 7 |
32097-029 |
CASE,BATTERY Price: $41.98 |
| 8 |
112BA0616 |
BOLT-UPSET,6X16 This part replaces 112G0616. Price: $1.17 |
| 9 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 10 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 11 |
92072-037 |
BAND-BATTERY Price: $3.62 |
| 12 |
32103-024 |
MAT-BATTERY Price: $7.33 |
| 13 |
92083-017 |
SPRING-RETURN Price: $2.58 |
| 14 |
550D2535 |
PIN-COTTER,2.5X35 Price: $1.71 |
| 15 |
32103-018 |
MAT-BATTERY Price: $3.15 |
| 16 |
32098-021 |
CASE,TOOL Price: $49.22 |
| 17 |
112BA0612 |
BOLT-UPSET This part replaces 112G0612. Price: $1.49 |
| 18 |
32029-065 |
BRACKET,ENGINE MOUNT Price: $6.63 |
| 19 |
115BA0820 |
BOLT-SMALL-UPSET,8X20 This part replaces 115G0820. Price: $5.52 |
| 20 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 21 |
92001-1246 |
BOLT,HEX HEAD,10X117 Price: $12.89 |
| 22 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 23 |
314AA1000 |
NUT-HEX-FINE This part replaces 314B1000. Price: $0.68 |
| 24 |
55012-003 |
BRACKET,ENGINE GUARD Price: $7.27 |
| 25 |
55011-019 |
GUARD,ENGINE Price: $18.35 |
| 26 |
112AA0614 |
BOLT-UPSET This part replaces 112B0614. Price: $0.49 |
| 27 |
27016-042 |
LOCK ASSY,STEERING Price: $45.68 |
| 28 |
27008-063-01 |
KEY SET,#401 Price: $29.72 |
| 28 |
27008-063-10 |
KEY SET,#410 Price: $21.47 |
| 29 |
27032-001 |
SPRING-STEERING LOCK Price: $5.25 |
| 30 |
11012-1134 |
CAP,STEERING LOCK Price: $6.87 |
| 31 |
92097-003 |
WASHER,WAVE Price: $4.50 |
| 32 |
92008-007 |
SCREW,3.51MM Price: $4.11 |
| 33 |
32099-005 |
CAP-TOOL CASE Price: $9.61 |
| 34 |
550D2030 |
PIN COTTER 2.0X30 Price: $1.51 |
| 35 |
464H0600 |
WASHER LOCK 6MM Price: $0.68 |
