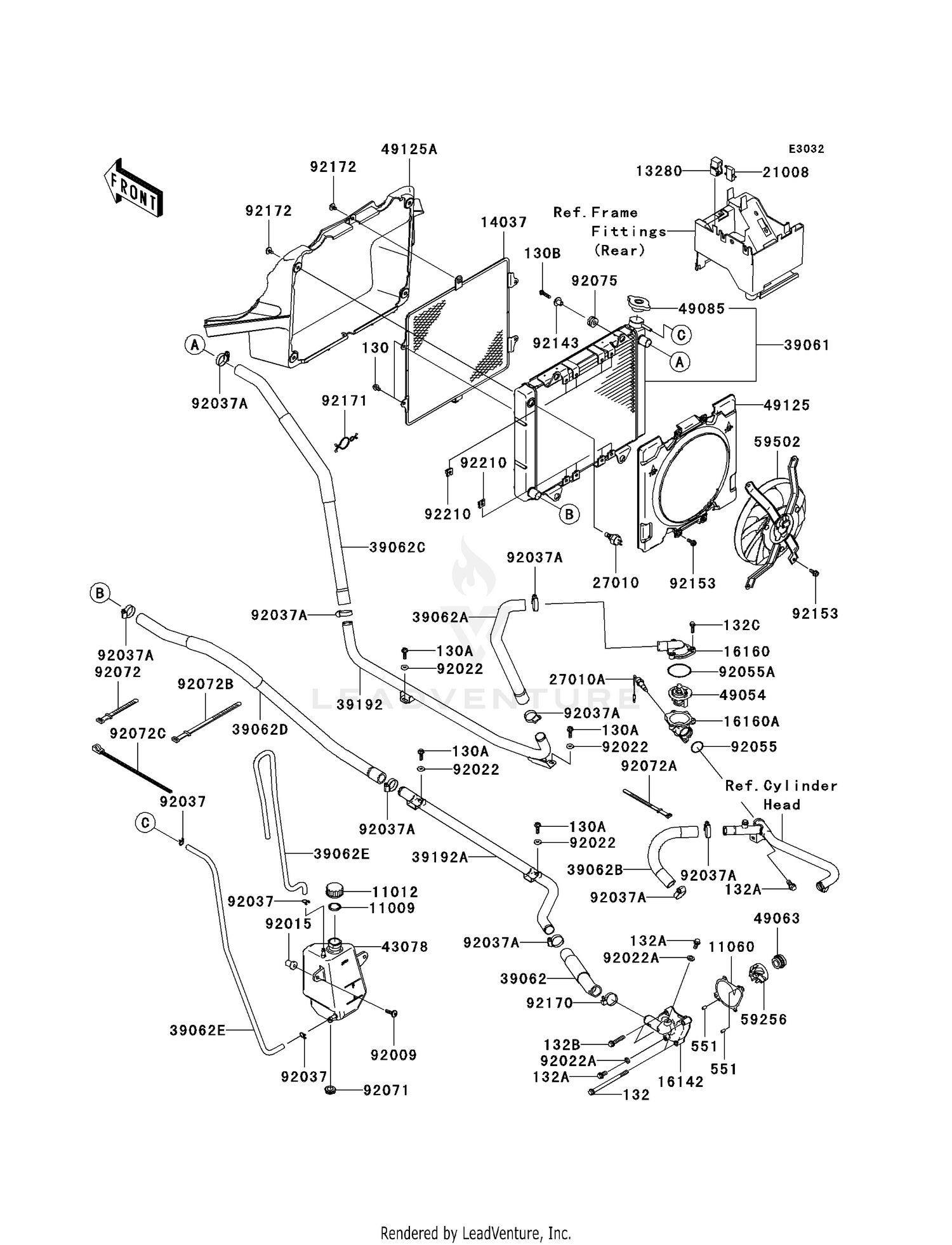

| Ref | Part Number | Description |
|---|
| 130 |
130BB0610 |
BOLT-FLANGED,6X10 Price: $2.49 |
| 130A |
130BB0620 |
BOLT-FLANGED,6X20 Price: $0.46 |
| 130B |
130BB0625 |
BOLT-FLANGED,6X25 Price: $2.80 |
| 132 |
132BB0690 |
BOLT-FLANGED-SMALL Price: $6.83 |
| 132A |
132BD0612 |
BOLT-FLANGED-SMALL,6X12 Price: $2.06 |
| 132B |
132BD0630 |
BOLT-FLANGED-SMALL,6X30 Price: $3.67 |
| 132C |
92002-1607 |
BOLT This part replaces 132E0620. Price: $4.76 |
| 551 |
551A0408 |
PIN-DOWEL,4X8 Price: $0.78 |
| 11009 |
11009-1145 |
GASKET,RESERVOIR TANK CAP Price: $1.42 |
| 11012 |
11012-1084 |
CAP Price: $1.72 |
| 11060 |
11060-1964 |
GASKET,WATER PUMP Price: $7.58 |
| 13280 |
13280-0082 |
HOLDER,BREAKER Price: $5.60 |
| 14037 |
14037-0085 |
SCREEN This part replaces 14037-0080. Price: $126.16 |
| 16142 |
16142-0727 |
COVER-PUMP,WATER This part replaces 16142-0002. Price: $83.83 |
| 16160 |
16160-0777 |
BODY,THERMOSTAT,UPP This part replaces 16160-0046. Price: $68.33 |
| 16160A |
16160-1092 |
BODY,THERMOSTAT,LWR Price: $79.09 |
| 21008 |
21008-0007 |
BREAKER,RAD.FAN,12A This part replaces 21008-0006. Price: $32.35 |
| 27010 |
27010-0091 |
SWITCH,FAN Price: $107.75 |
| 27010A |
27010-1346 |
SWITCH,SENSOR WATER Price: $120.07 |
| 39061 |
39061-0127 |
RADIATOR-ASSY Price: $487.89 |
| 39062 |
39062-0174 |
HOSE-COOLING,RAD.-W/P Price: $11.06 |
| 39062A |
39062-0177 |
HOSE-COOLING,THERMO-R Price: $13.50 |
| 39062B |
39062-0184 |
HOSE-COOLING,FR HEAD- Price: $13.50 |
| 39062C |
39062-0209 |
HOSE-COOLING,RH PIPE- Price: $33.80 |
| 39062D |
39062-0210 |
HOSE-COOLING,RAD.-LH Price: $33.80 |
| 39062E |
39062-0242 |
HOSE-COOLING,5.5X10.5 Price: $12.38 |
| 39192 |
39192-0106 |
PIPE-WATER,RH Price: $70.68 |
| 39192A |
39192-0107 |
PIPE-WATER,LH Price: $70.68 |
| 43078 |
43078-0041 |
RESERVOIR Price: $54.40 |
| 49054 |
49054-1055 |
THERMOSTAT Price: $54.56 |
| 49063 |
49063-1055 |
SEAL-MECHANICAL Price: $20.06 |
| 49085 |
49085-0005 |
CAP-ASSY-PRESSURE Price: $45.60 |
| 49125 |
49125-0031 |
SHROUD Price: $34.86 |
| 49125A |
49125-0032 |
SHROUD Price: $44.47 |
| 59256 |
59256-1069 |
IMPELLER Price: $21.38 |
| 59502 |
59502-0039 |
FAN-ASSY Price: $368.70 |
| 92009 |
92009-1465 |
SCREW,6X25 Price: $3.92 |
| 92015 |
92015-1692 |
NUT,RUBBER,6MM Price: $7.34 |
| 92022 |
92022-1342 |
WASHER,6.5X16X2 Price: $3.92 |
| 92022A |
92022-304 |
WASHER,6.2X11X1 Price: $3.65 |
| 92037 |
92037-147 |
CLAMP,TUBE Price: $7.34 |
| 92037A |
92037-1589 |
CLAMP,COOLING HOSE Price: $18.57 |
| 92055 |
670B2022 |
O RING,22MM This part replaces 92055-1081. Price: $4.69 |
| 92055A |
92055-1279 |
RING-O,44.7X2.4 Price: $7.34 |
| 92071 |
92071-0020 |
GROMMET Price: $4.28 |
| 92072 |
92072-030 |
BAND,L=123 Price: $5.00 |
| 92072A |
92072-031 |
BAND,L=149 Price: $5.00 |
| 92072B |
92072-032 |
BAND,L=218 Price: $5.00 |
| 92072C |
92072-1237 |
BAND,L=250 Price: $2.14 |
| 92075 |
92075-209 |
DAMPER Price: $4.69 |
| 92143 |
92143-1353 |
COLLAR Price: $8.58 |
| 92153 |
92153-0531 |
BOLT Price: $2.61 |
| 92170 |
92171-0261 |
CLAMP This part replaces 92170-1497. Price: $16.83 |
| 92171 |
92171-1736 |
CLAMP Price: $5.92 |
| 92172 |
92172-0005 |
SCREW,6X10 Price: $2.41 |
