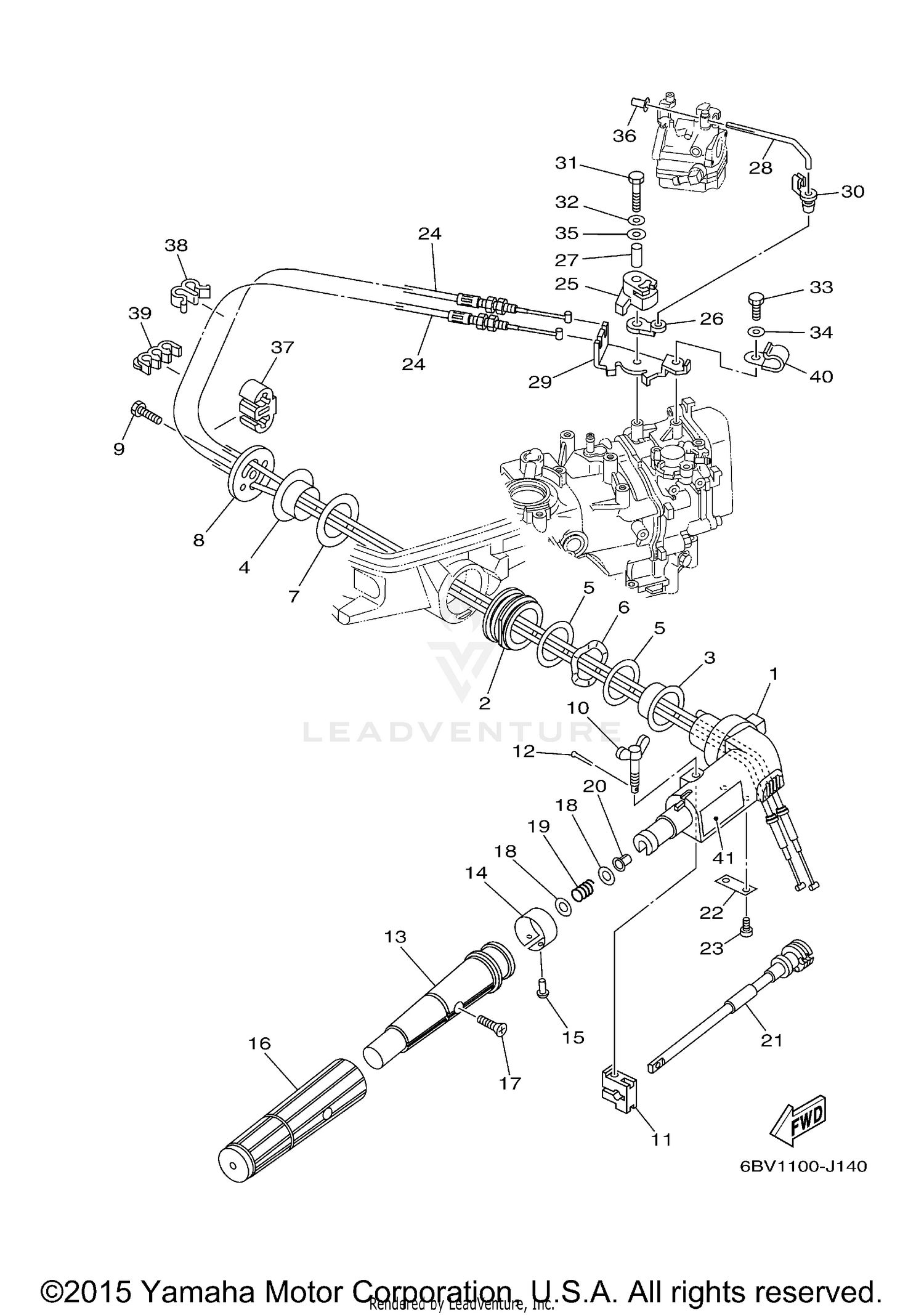

| Ref | Part Number | Description |
|---|
| 1 |
6EE-42111-00-8D |
HANDLE, STEERING This part replaces 6BX-G2111-00-4D. Price: $216.20 |
| 2 |
6BX-42129-00-00 |
BUSHING, RUBBER Price: $90.20 |
| 3 |
6BX-G2171-00-00 |
BUSHING Price: $10.40 |
| 4 |
6BX-G2172-00-00 |
BUSHING 2 Price: $13.45 |
| 5 |
6EE-G2181-00-00 |
WASHER This part replaces 6BX-G2181-00-00. Price: $4.15 |
| 6 |
6EE-G2188-00-00 |
WASHER, WAVE This part replaces 6BX-G2188-00-00. Price: $7.45 |
| 7 |
6BX-G2182-00-00 |
WASHER 2 Price: $9.60 |
| 8 |
6BX-42131-00-00 |
COVER, HANDLE STEERING Price: $19.80 |
| 9 |
97D75-08025-00 |
BOLT, HEXAGON DEEP R This part replaces 97075-08025-00. Price: $5.95 |
| 10 |
6G1-42125-01-00 |
BOLT, FRICTION ADJUSTING Price: $39.05 |
| 11 |
6G1-42126-00-00 |
FRICTION, STEERING HANDLE GRIP Price: $14.30 |
| 12 |
91490-16010-00 |
PIN. COTTER Price: $2.70 |
| 13 |
67D-42119-01-00 |
GRIP, STEERING HANDLE This part replaces 68D-G2119-01-00. Price: $42.75 |
| 14 |
6EE-G2137-00-00 |
INDICATOR, THROTTLE This part replaces 60P-G2137-00-00. Price: $20.65 |
| 15 |
90269-02M09-00 |
RIVET Price: $5.55 |
| 16 |
67D-42177-01-00 |
RUBBER, HANDLE This part replaces 68D-G2177-10-00. Price: $28.00 |
| 17 |
90152-05011-00 |
SCREW, COUNTERSUNK Price: $3.35 |
| 18 |
90201-10M02-00 |
WASHER, PLATE Price: $4.60 |
| 19 |
90501-23215-00 |
SPRING, COMPRESSION Price: $8.25 |
| 20 |
90386-08032-00 |
BUSH Price: $5.55 |
| 21 |
6BX-42138-00-00 |
LEVER, THROTTLE Price: $39.55 |
| 22 |
6E0-42159-02-00 |
STAY This part replaces 68D-G2159-00-00. Price: $7.15 |
| 23 |
97885-05012-00 |
SCREW, PAN HEAD Price: $3.05 |
| 24 |
6EE-26301-00-00 |
THROTTLE CABLE ASSY This part replaces 6BX-F6301-00-00. Price: $21.30 |
| 25 |
6BX-41638-00-00 |
PULLEY Price: $6.40 |
| 26 |
6BX-41283-00-00 |
LEVER, FREE ACCEL. Price: $4.60 |
| 27 |
90387-06252-00 |
COLLAR Price: $9.80 |
| 28 |
6BX-41211-00-00 |
LINK, ACCEL. Price: $11.55 |
| 29 |
6EE-14497-00-00 |
STAY, THROTTLE WIRE This part replaces 6BX-E4497-00-00. Price: $35.50 |
| 30 |
661-41262-02-00 |
JOINT, CHOKE LEVER Price: $13.35 |
| 31 |
97080-06035-00 |
BOLT This part replaces 97095-06035-00. Price: $5.49 |
| 32 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 33 |
97080-06012-00 |
BOLT This part replaces 97095-06012-00. Price: $2.99 |
| 34 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 35 |
90201-06M62-00 |
WASHER, PLATE Price: $4.75 |
| 36 |
647-14395-61-00 |
CAP, OVERFLOW PIPE This part replaces 647-14395-60-00. Price: $1.35 |
| 37 |
90464-06006-00 |
CLAMP Price: $3.45 |
| 38 |
90464-07M20-00 |
CLAMP Price: $3.15 |
| 39 |
90464-07M05-00 |
CLAMP Price: $3.55 |
| 40 |
90465-08395-00 |
CLAMP Price: $16.49 |
