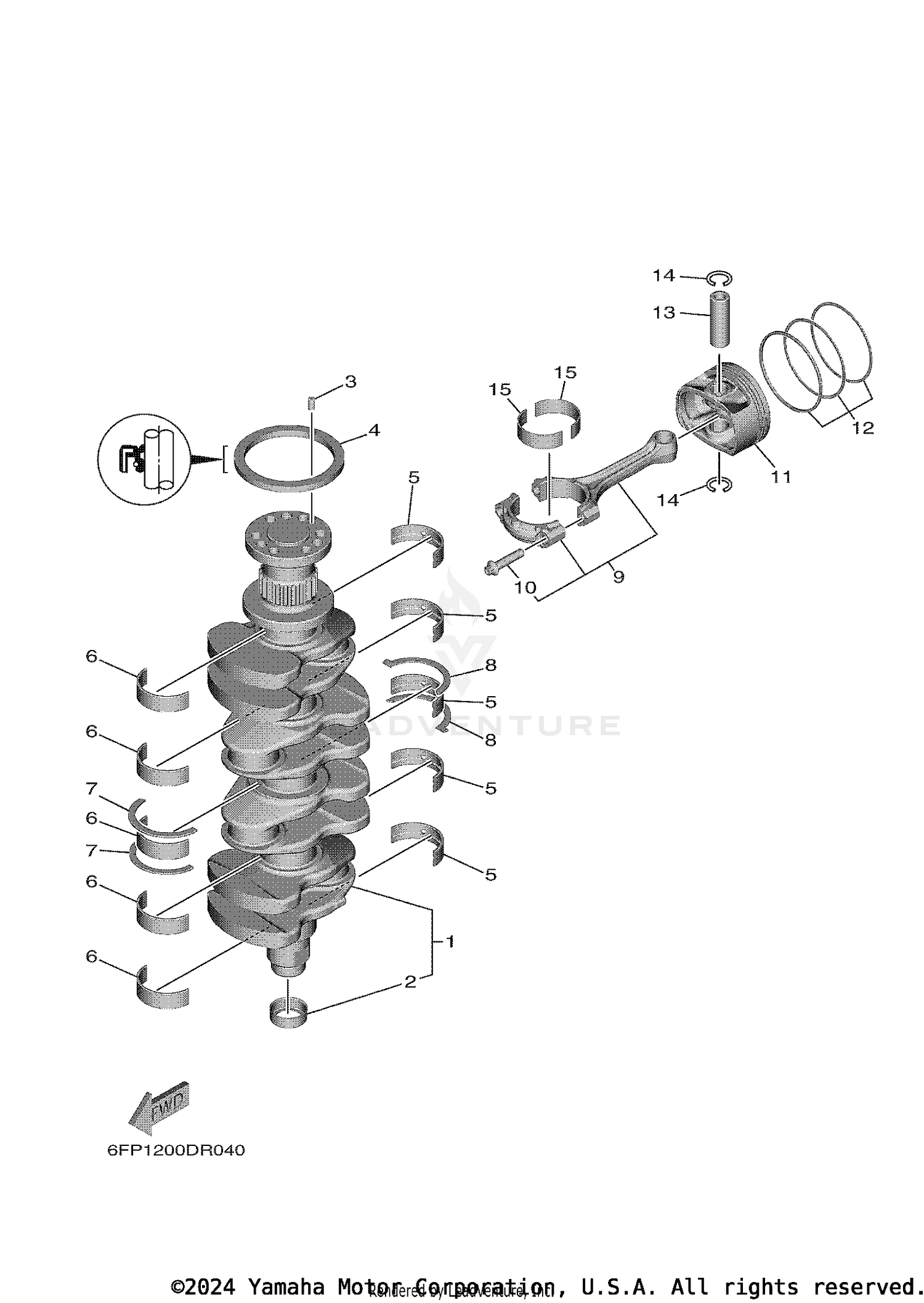

CRANKSHAFT PISTON
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6EK-11410-01-00 | CRANKSHAFT Price: $1,781.70 |
| 2 | 6CB-11478-00-00 | COLLAR Price: $68.90 |
| 3 | 93606-12019-00 | PIN, DOWEL Price: $4.60 |
| 4 | 93102-85008-00 | OIL SEAL Price: $38.40 |
| 7 | 6EK-11426-01-00 | BEARING, THRUST 1 Price: $5.55 |
| 8 | 6EK-11427-00-00 | BEARING, THRUST 2 Price: $7.45 |
| 9 | 6EK-W1165-00-00 | CONNECTING ROD ASSY Price: $132.70 |
| 10 | K1C-A3275-00-00 | BOLT, CONNECTING ROD Price: $6.75 |
| 11 | 6FP-11631-01-00 | PISTON (STD) Price: $96.90 |
| 12 | 6EK-11603-01-00 | PISTON RING SET (STD) Price: $77.35 |
| 13 | 6EK-11633-00-00 | PIN, PISTON Price: $12.55 |
| 14 | 93450-19052-00 | CIRCLIP Price: $7.49 |
