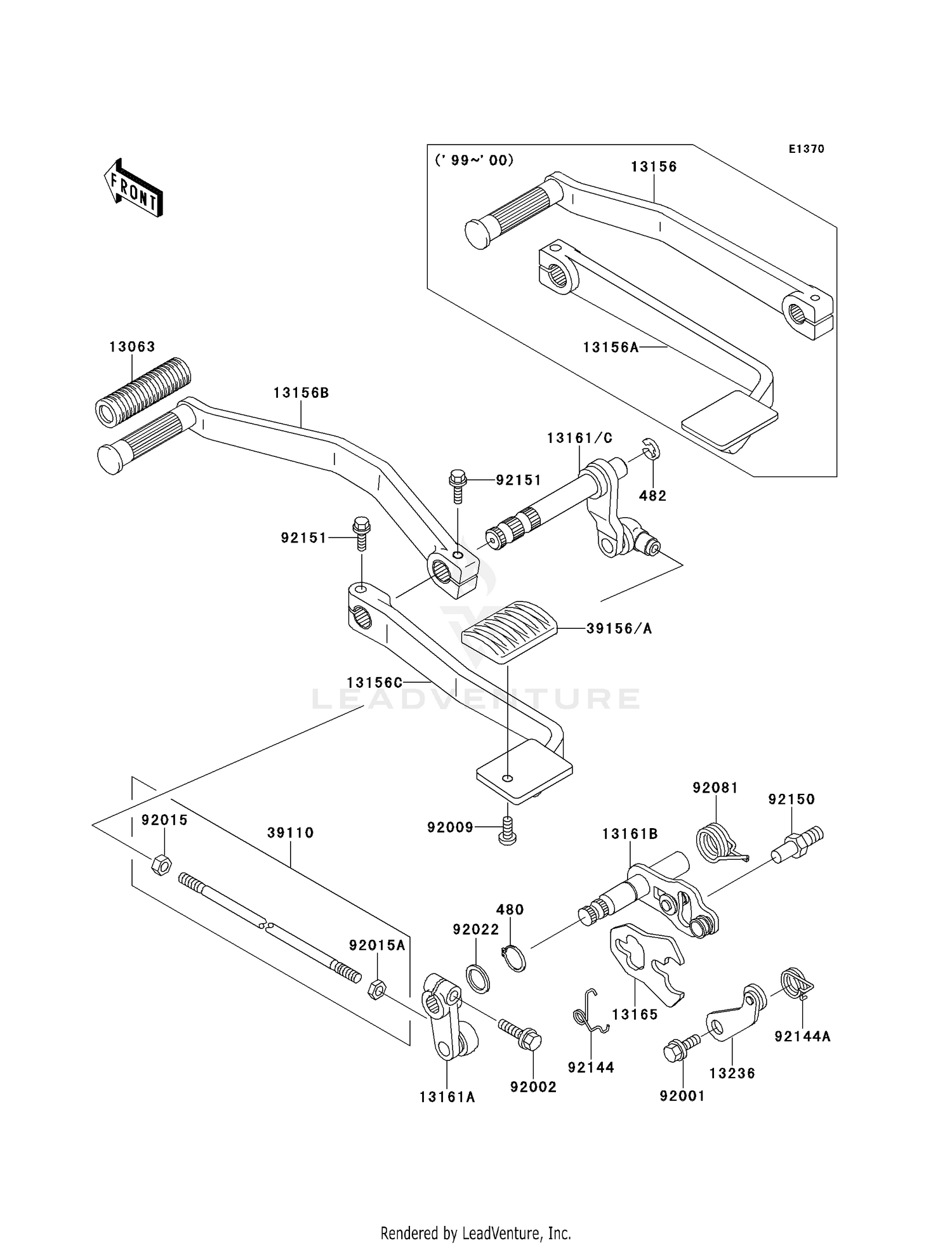

| Ref | Part Number | Description |
|---|
| 480 |
480J1300 |
CIRCLIP-TYPE-C,13MM Price: $3.92 |
| 482 |
482L0100 |
CIRCLIP-TYPE-E,10MM Price: $0.73 |
| 13063 |
13063-002 |
DAMPER,PEDAL Price: $5.00 |
| 13156 |
13156-1422 |
LEVER-CHANGE,PEDAL Price: $75.16 |
| 13156A |
13156-1423 |
LEVER-CHANGE,PEDAL Price: $75.16 |
| 13161 |
13161-1248 |
LEVER-COMP-CHANGE SHA Price: $72.05 |
| 13161A |
13161-1253 |
LEVER-COMP-CHANGE SHA Price: $75.46 |
| 13161B |
13161-1254 |
LEVER-COMP-CHANGE SHA Price: $67.33 |
| 13165 |
13165-1120 |
PAWL Price: $14.10 |
| 13236 |
13236-1126 |
LEVER-COMP,POSITION Price: $13.60 |
| 39110 |
39110-1119 |
ROD-ASSY-TIE Price: $15.39 |
| 39156 |
39156-2697 |
PAD,BRAKE PEDAL This part replaces 39156-1071. Price: $11.80 |
| 92001 |
92001-1715 |
BOLT,FLANGED,6X14 Price: $10.65 |
| 92002 |
92002-1237 |
BOLT,6X20 Price: $4.31 |
| 92015 |
92015-1443 |
NUT,6MM Price: $3.92 |
| 92015A |
92015-1444 |
NUT,LEFT HANDED,6MM Price: $4.69 |
| 92022 |
92022-1224 |
WASHER,13.2X20X0.5 Price: $4.31 |
| 92081 |
92081-1869 |
SPRING,CHANGE PEDAL RETURN Price: $10.19 |
| 92144 |
92144-1029 |
SPRING Price: $7.77 |
| 92144A |
92145-0008 |
SPRING,RETURN This part replaces 92144-1140. Price: $8.88 |
| 92150 |
92154-1885 |
BOLT,RETURN SPRING This part replaces 92150-1869. Price: $8.58 |
