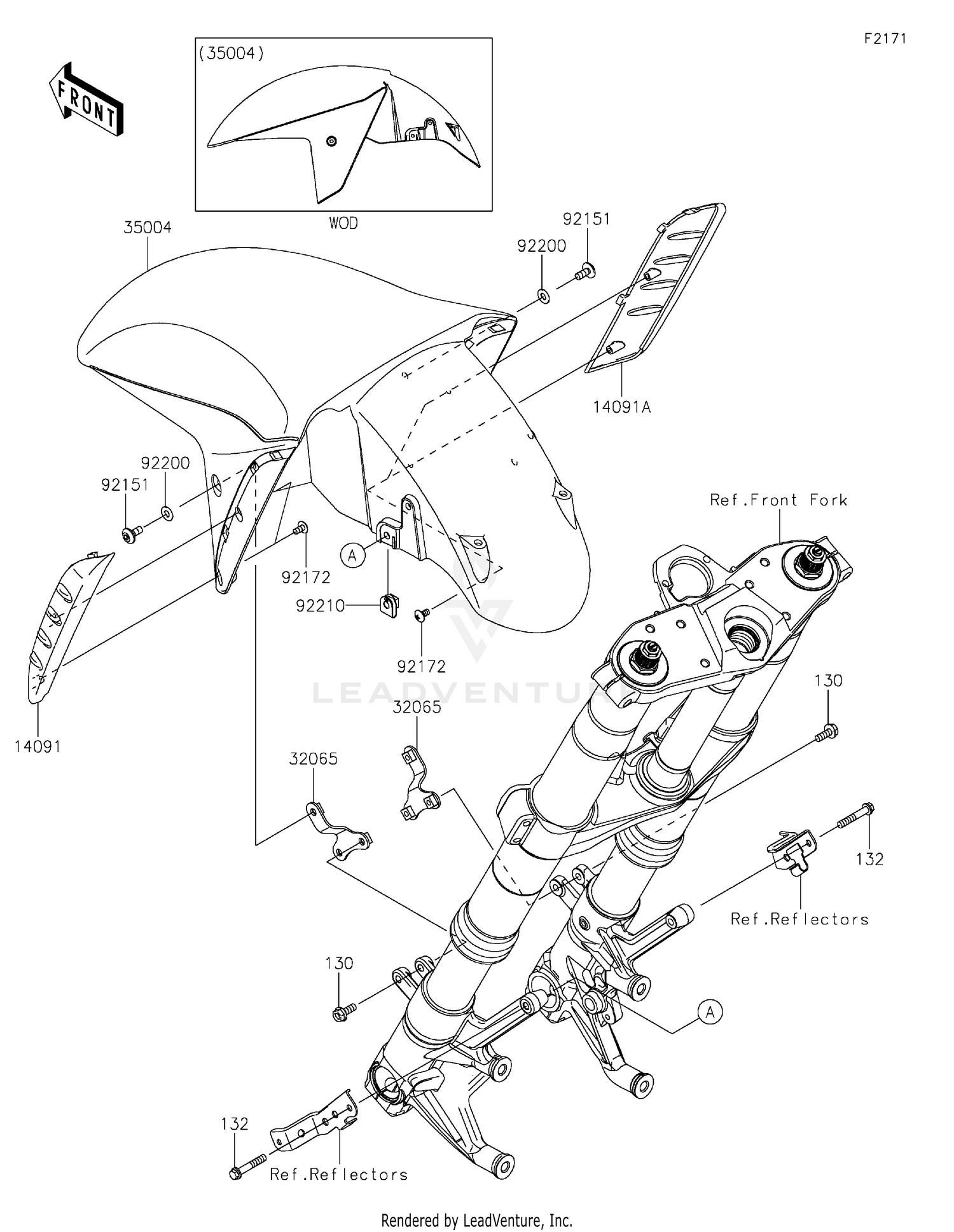

Front Fender(s)
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 130BA0618 | BOLT-FLANGED,6X18 Price: $1.54 |
| 14091 | 14091-0598 | COVER,FRONT FENDER,LH Price: $30.76 |
| 14091A | 14091-0599 | COVER,FRONT FENDER,RH Price: $30.76 |
| 32065 | 32065-0079 | BRACKET-FENDER Price: $9.67 |
| 35004 | 35004-0155-660 | FENDER-FRONT,M.S.BLACK Price: $242.03 |
| 92151 | 92151-1654 | BOLT,SOCKET,6X14 Price: $1.83 |
| 92172 | 92172-0262 | SCREW,TAPPING,5X10 Price: $1.34 |
| 92200 | 92200-1388 | WASHER,6.5X14X1 Price: $2.46 |
| 92210 | 92210-0277 | NUT,6MM Price: $4.92 |
