| Ref | Part Number | Description |
|---|
| 1 |
515176557 |
BATTERY WIRE - Call your local BRP dealership Price: $22.49 |
| 2 |
232561414 |
Elastic Stop Nut M6 Price: $0.57 |
| 3 |
234061410 |
Flat Washer 6 mm Price: $1.39 |
| 4 |
232561414 |
Elastic Stop Nut M6 Price: $0.57 |
| 5 |
293450275 |
Insert This part replaces 415107300. Price: $12.99 |
| 6 |
515176782 |
Support Price: Call Us |
| 7 |
207662044 |
Hex. Flange Screw M6 X 20 Price: $2.09 |
| 8 |
250200041 |
Lock Washer Serrated M6 Price: $1.19 |
| 10 |
250000282 |
Battery Bolt Kit This part replaces 295500849. Price: $7.49 |
| 11 |
515177008 |
BATTERY STRIP - Call your local BRP dealership This part replaces 515176368. Price: $12.99 |
| 12 |
515176501 |
Starter Relay Price: $97.99 |
| 13 |
390402200 |
Pop Rivet 3/16" Price: $0.35 |
| 14 |
207661644 |
Hex. Flange Screw M6 X 16 Price: $0.76 |
| 15 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 16 |
210262040 |
Hex. Flange Screw M6 X 20 Price: $2.19 |
| 17 |
515175749 |
Ground Wire Price: $21.99 |
| 18 |
250200041 |
Lock Washer Serrated M6 Price: $1.19 |
| 19 |
515176556 |
BATTERY WIRE - Call your local BRP dealership Price: $15.99 |
| 20 |
515175919 |
Protector Cap Price: $17.99 |
| 21 |
232561414 |
Elastic Stop Nut M6 Price: $0.57 |
| 22 |
710000495 |
Protector Cap Price: $11.49 |
| 23 |
219704453 |
Was 293550004 Dielectric Grease, 150 g Price: $38.99 |
| 24 |
293750001 |
Tie Wrap 94 mm Price: $1.03 |
| 24 |
293750002 |
Tie Wrap 142 mm Price: $1.25 |
| 24 |
414115200 |
Tie-Rap 180 mm Price: $0.11 |
| 33001 |
33001-0584-18R |

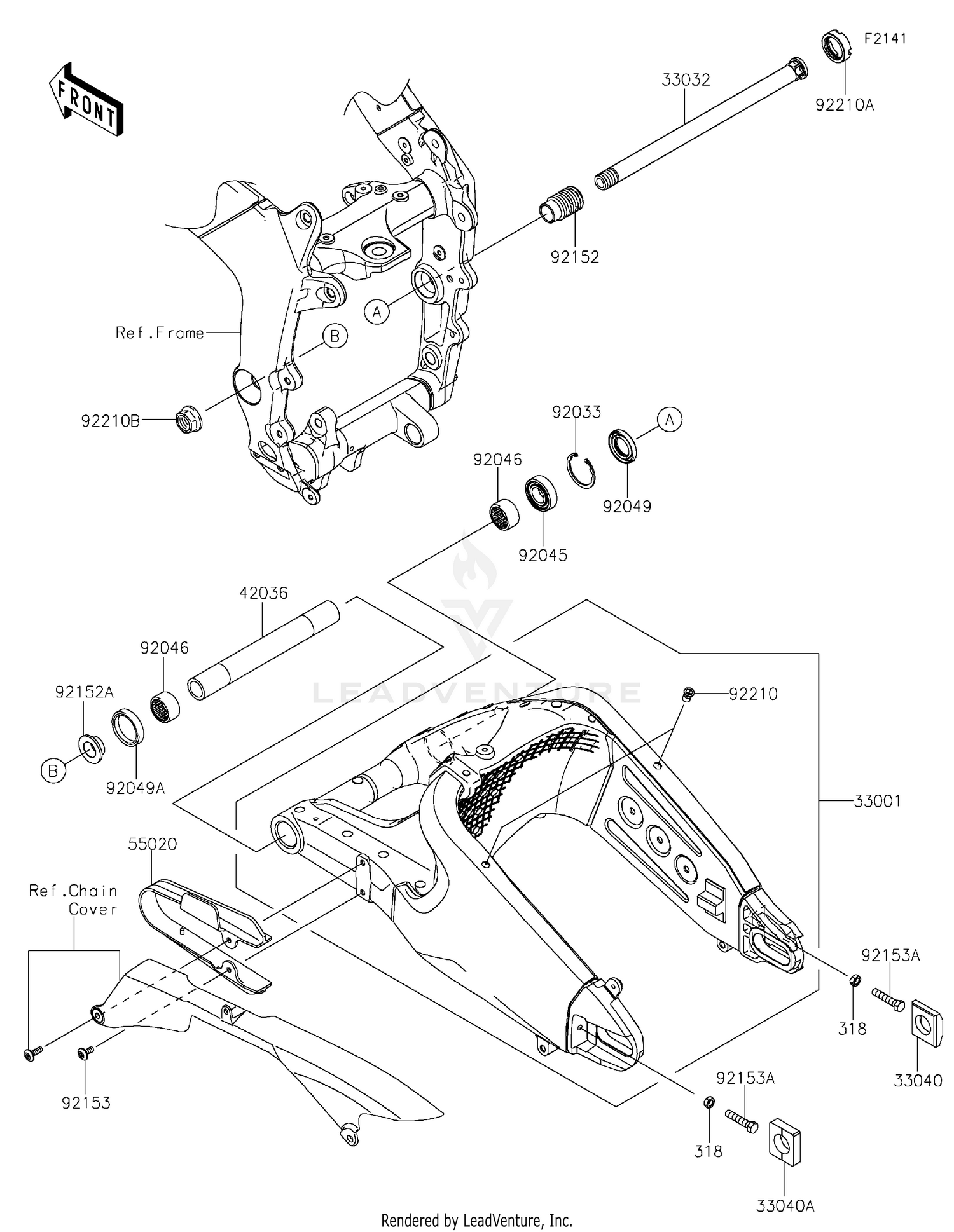

ARM-COMP-SWING,F.S.BLACK This part replaces 33001-0584. Price: $998.46 |
| 33032 |
33032-0044 |
SHAFT-SWING ARM Price: $104.53 |
| 33040 |
33040-0107 |
ADJUSTER-CHAIN,LH This part replaces 33040-0027. Price: $38.65 |
| 33040A |
33040-1114 |
ADJUSTER-CHAIN,RH Price: $19.28 |
| 42036 |
42036-1341 |
SLEEVE,SWING ARM PIVOT,L=226 Price: $68.84 |
| 55020 |
55020-0384 |
GUARD,CHAIN Price: $29.88 |
| 92033 |
92033-1041 |
RING-SNAP,42MM Price: $6.16 |
| 92045 |
92045-0017 |
BEARING-BALL,6004UL11 Price: $14.39 |
| 92046 |
92046-0008 |
BEARING-NEEDLE,7E-HVS 28X34X17 Price: $21.54 |
| 92049 |
92049-1314 |
SEAL-OIL,MHSA25X42X6 Price: $13.75 |
| 92049A |
92049-1352 |
SEAL-OIL,MHSA25X34X7 Price: $9.28 |
| 92152 |
92152-2980 |
COLLAR,SWING ARM,L=47 This part replaces 92152-0154. Price: $37.14 |
| 92152A |
92152-3997 |
COLLAR,SWING ARM,L=12.5 This part replaces 92152-1234. Price: $8.97 |
| 92153 |
92153-0422 |
BOLT,SOCKET,6X14 Price: $2.41 |
| 92153A |
92153-0736 |
BOLT,8X40 Price: $4.15 |
| 92210 |
92210-0099 |
NUT,6MM Price: $5.57 |
| 92210A |
92210-0134 |
NUT,30MM Price: $28.51 |
| 92210B |
92210-0320 |
NUT,FLANGED,20MM Price: $11.93 |
