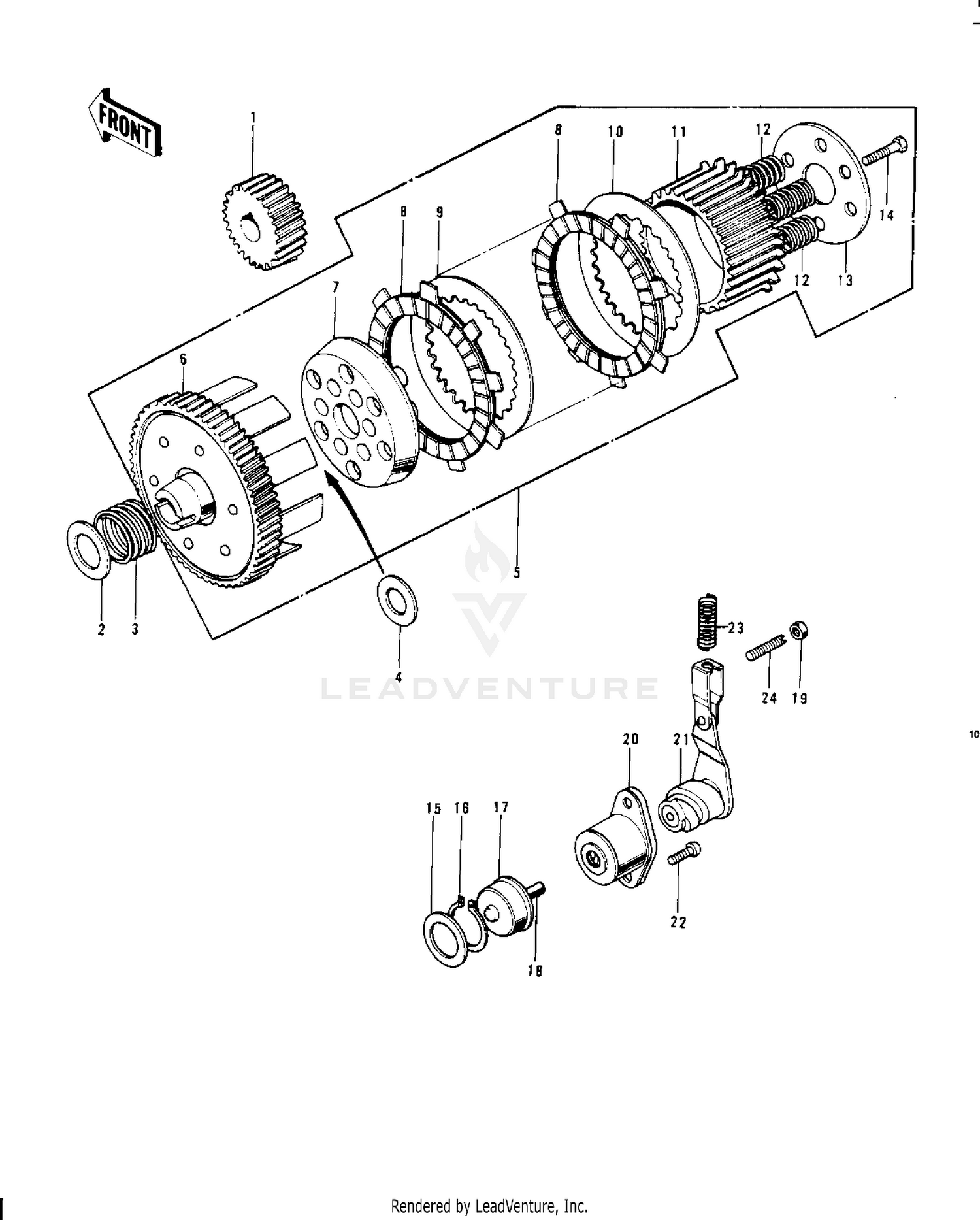

| Ref | Part Number | Description |
|---|
| 1 |
13121-032 |
PINION,PRIMARY Price: $94.31 |
| 2 |
92022-057 |
WASHER PLAIN Price: $4.38 |
| 3 |
92081-015 |
SPRING CLUTCH DAMPER Price: $6.89 |
| 4 |
92022-054 |
WASHER THRUST CLUTCH Price: $8.19 |
| 5 |
13081-028 |
CLUTCH-ASSY Price: $201.02 |
| 6 |
13095-1277 |
HOUSING-COMP-CLUTCH This part replaces 13095-022. Price: $249.78 |
| 7 |
13086-1002 |
WHEEL-CLUTCH Price: $44.98 |
| 8 |
13088-1010 |
PLATE-FRICTION This part replaces 13088-1103. Price: $13.73 |
| 9 |
13089-1009 |
PLATE-CLUTCH,STEEL Price: $14.05 |
| 10 |
13090-004 |
PLATE CLUTCH OUTER Price: $20.85 |
| 11 |
13087-1011 |
HUB,CLUTCH Price: $91.10 |
| 12 |
92081-012 |
SPRING CLUTCH Price: $6.87 |
| 13 |
13091-1115 |
HOLDER,CLUTCH SPRING Price: $18.40 |
| 14 |
115G0812 |
BOLT-SMALL-UPSET,8X12 This part replaces 114G0812. Price: $4.16 |
| 15 |
92022-053 |
WASHER THRUST Price: $3.98 |
| 16 |
480J1600 |
CIRCLIP-TYPE-C,16MM Price: $4.31 |
| 17 |
13113-003 |
PUSHER CLUTCH SPRING Price: $9.50 |
| 18 |
610A0710 |
PIN DOWEL 7X10 Price: $5.13 |
| 19 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 20 |
13118-001 |
OUTER CLUTCH RELEASE Price: $28.78 |
| 21 |
13102-004 |
INNER CLUTCH RELEASE Price: $32.15 |
| 22 |
220AA0616 |
SCREW-PAN-CROS,6X16 This part replaces 220B0616. Price: $3.04 |
| 23 |
92081-096 |
SPRING-CLUTCH RELEASE Price: $5.54 |
| 24 |
291Z0628 |
SCREW SLOTTED 6X28 Price: $5.85 |
