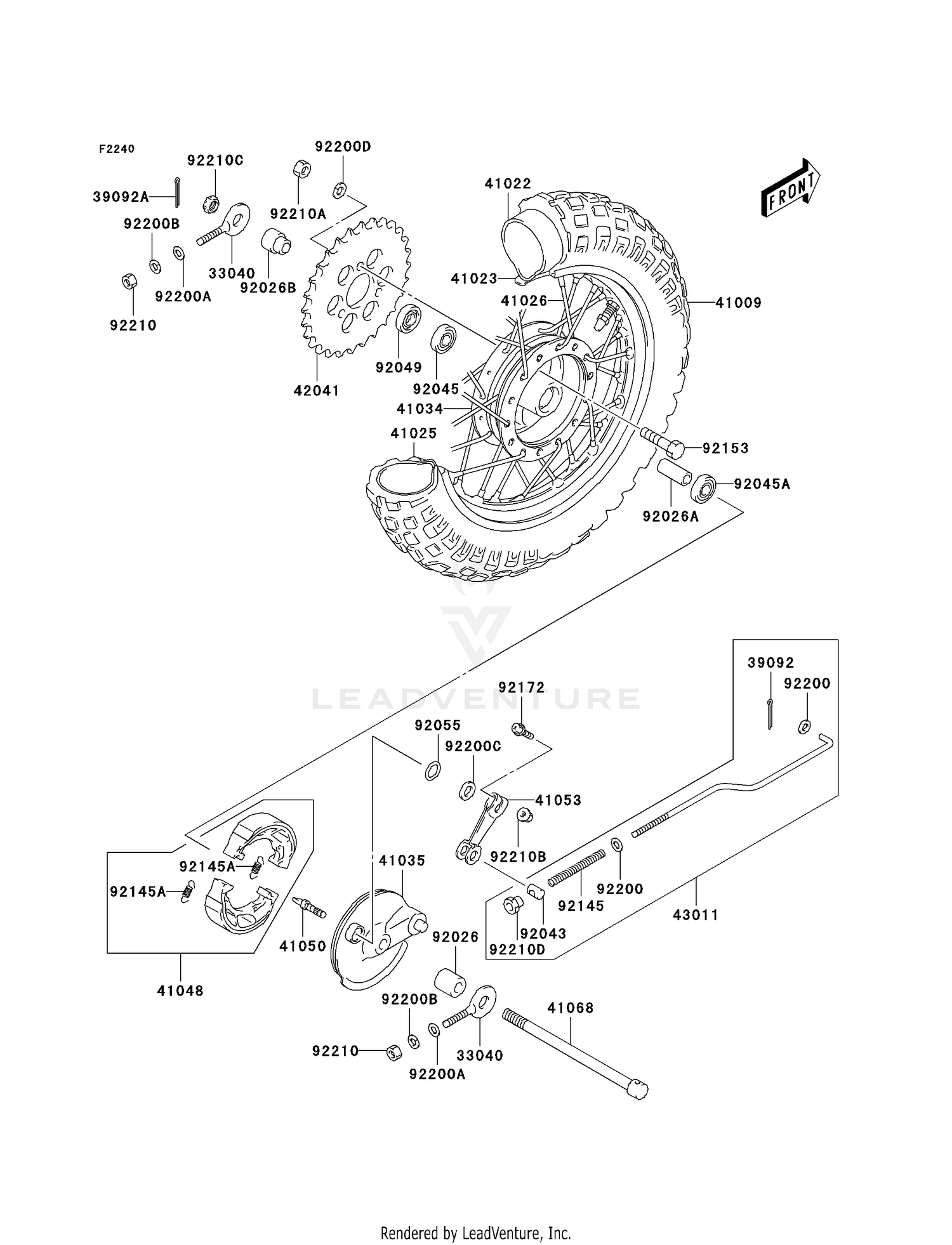

| Ref | Part Number | Description |
|---|
| 33040 |
33040-S003 |
ADJUSTER-CHAIN Price: $7.32 |
| 39092 |
39092-S020 |
PIN-HAIR This part replaces 39092-S004. Price: $1.92 |
| 39092A |
39092-S014 |
PIN-HAIR,COTTER This part replaces 39092-S005. Price: $1.92 |
| 41009 |
41009-S014 |
TIRE,2.50-10 Price: $38.22 |
| 41022 |
41022-S005 |
TUBE-TIRE Price: $15.44 |
| 41023 |
41023-S005 |
BAND-RIM Price: $2.34 |
| 41025 |
41025-S010 |
RIM,1.40X10 Price: $68.13 |
| 41026 |
41026-S005 |
SPOKE-ASSY Price: $20.35 |
| 41034 |
41034-S006 |
DRUM-ASSY,REAR WHEEL Price: $236.79 |
| 41035 |
41035-S005 |
PANEL-ASSY-BRAKE Price: $63.90 |
| 41048 |
41048-S008 |
SHOE-BRAKE Price: $34.95 |
| 41050 |
41050-S007 |
CAM-BRAKE Price: $15.38 |
| 41053 |
41053-S010 |
LEVER-BRAKE CAM Price: $8.94 |
| 41068 |
41068-S010 |
AXLE Price: $15.12 |
| 42041 |
42041-S007 |
SPROCKET-HUB,28T Price: $30.70 |
| 43011 |
43011-S003 |
ROD-BRAKE Price: $7.76 |
| 92026 |
92026-S111 |
SPACER Price: $5.85 |
| 92026A |
92026-S117 |
SPACER,WHEEL HUB BEAR Price: $6.13 |
| 92026B |
92026-S118 |
SPACER Price: $5.85 |
| 92043 |
92043-S006 |
PIN Price: $2.42 |
| 92045 |
92045-S055 |
BEARING-BALL,FRONT WH Price: $16.35 |
| 92045A |
92045-S056 |
BEARING-BALL,FRONT WH Price: $19.13 |
| 92049 |
92049-S055 |
SEAL-OIL,WHEEL HUB Price: $3.90 |
| 92055 |
92055-S091 |
RING-O Price: $1.59 |
| 92145 |
92145-S046 |
SPRING,REAR BRAKE ROD Price: $2.64 |
| 92145A |
92145-S122 |
SPRING,BRAKE SHOE Price: $2.42 |
| 92153 |
92153-S311 |
BOLT,8X36 Price: $2.76 |
| 92172 |
92172-S378 |
SCREW,FRONT BRAKE This part replaces 92172-S192. Price: $1.57 |
| 92200 |
92200-S298 |
WASHER This part replaces 92200-S002. Price: $1.92 |
| 92200A |
92200-S286 |
WASHER This part replaces 92200-S003. Price: $1.92 |
| 92200B |
92200-S292 |
WASHER This part replaces 92200-S102. Price: $1.92 |
| 92200C |
92200-S177 |
WASHER,10.5X18X1 Price: $2.86 |
| 92200D |
92200-S178 |
WASHER Price: $2.70 |
| 92210 |
92210-S188 |
NUT This part replaces 92210-S001. Price: $1.92 |
| 92210A |
92210-S195 |
NUT This part replaces 92210-S051. Price: $1.92 |
| 92210B |
92210-S200 |
NUT This part replaces 92210-S067. Price: $1.92 |
| 92210C |
92210-S119 |
NUT,FRONT AXLE Price: $3.14 |
