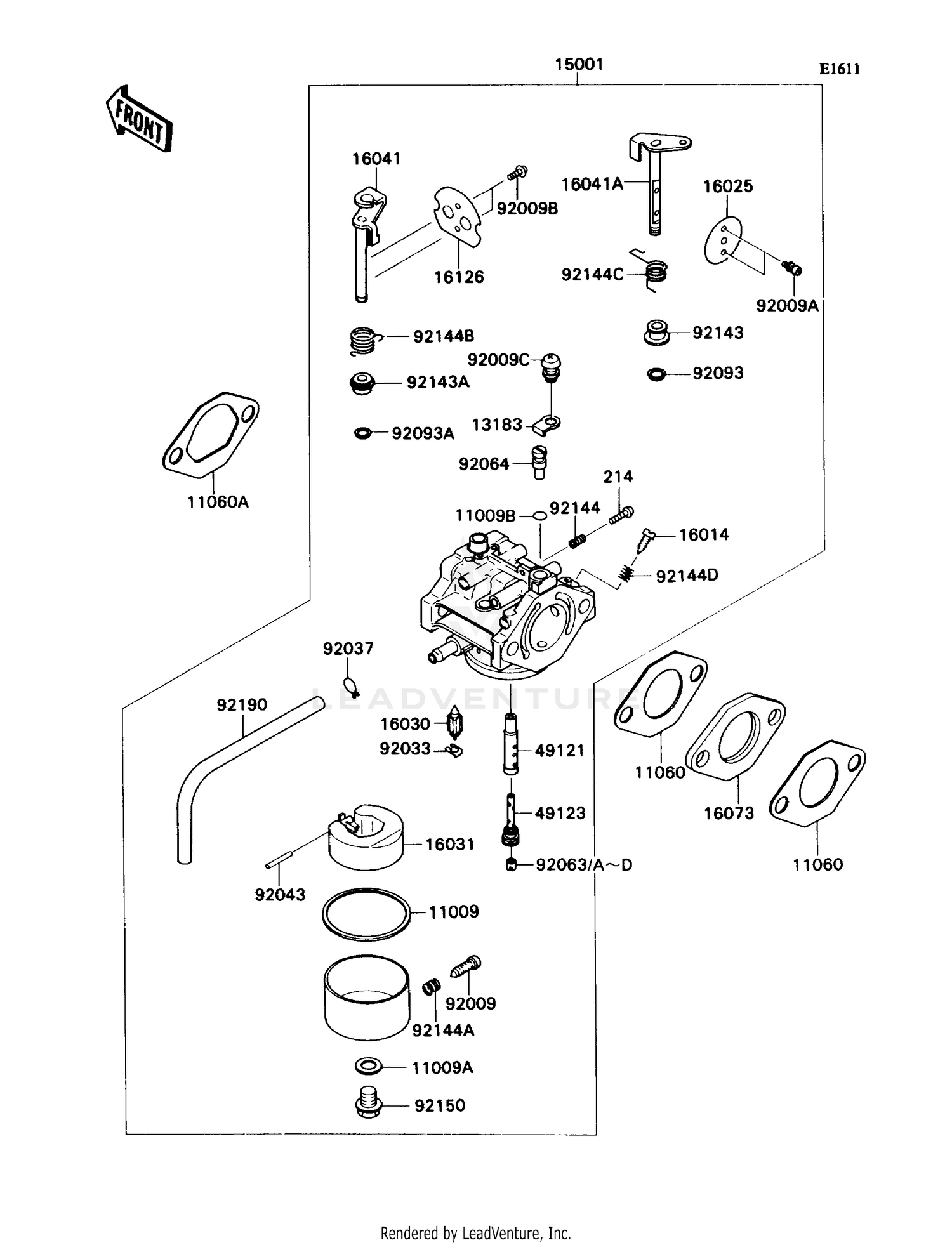

CARBURETOR
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 11009 | 11009-2024 | GASKET Price: $4.15 |
| 11009A | 11009-2025 | GASKET Price: $1.99 |
| 11009B | 16038-024 | O RING Price: $1.56 |
| 11060 | 11060-2346 | GASKET This part replaces 11060-2019. Price: $2.17 |
| 11060A | 11060-2347 | GASKET This part replaces 11060-2020. Price: $2.17 |
| 13183 | 13183-2112 | PLATE Price: $3.35 |
| 15001 | 15001-1533 | CARBURETOR-ASSY Price: $231.15 |
| 16014 | 16014-1065 | SCREW-PILOT AIR Price: $19.42 |
| 16025 | 16025-1157 | VALVE-THROTTLE Price: $21.17 |
| 16030 | 16030-2067 | VALVE-NEEDLE Price: $26.09 |
| 16031 | 16031-2066 | FLOAT Price: $27.00 |
| 16041 | 16041-1054 | SHAFT-CARBURETOR Price: $51.24 |
| 16041A | 16041-1055 | SHAFT-CARBURETOR Price: $51.24 |
| 16073 | 16073-1079 | INSULATOR Price: $9.38 |
| 16126 | 16126-1232 | VALVE,CHOKE Price: $21.17 |
| 49121 | 49121-1051 | NOZZLE-MAIN Price: $23.43 |
| 49123 | 49123-2057 | HOLDER-MAIN JET Price: $15.96 |
| 92009 | 92009-2015 | SCREW,DRAIN Price: $4.94 |
| 92009A | 92009-2080 | SCREW Price: $1.96 |
| 92009B | 92009-2081 | SCREW Price: $1.72 |
| 92009C | 92009-2244 | SCREW Price: $1.75 |
| 92033 | 92033-2067 | CLIP Price: $3.64 |
| 92037 | 92037-1610 | CLAMP This part replaces 92037-174. Price: $2.00 |
| 92043 | 92043-2006 | PIN,FLOAT Price: $3.06 |
| 92063 | 92063-1389 | JET-MAIN,#122.5 Price: $12.40 |
| 92063A | 92063-2010 | JET-MAIN #112.5 Price: $6.73 |
| 92063B | 92063-2117 | JET-MAIN #117.5 Price: $7.30 |
| 92063C | 92063-2203 | JET-MAIN,#120 Price: $12.21 |
| 92063D | 92063-2099 | JET-MAIN #110 This part replaces 92063-2237. Price: $7.30 |
| 92064 | 92064-1159 | JET-PILOT,#72.5 Price: $14.92 |
| 92093 | 92093-1286 | SEAL Price: $6.53 |
| 92093A | 92093-1287 | SEAL Price: $7.39 |
| 92143 | 92027-2025 | RING-BUSHING Price: $3.96 |
| 92143A | 92143-1349 | COLLAR Price: $9.11 |
| 92144 | 92081-2008 | SPRING Price: $2.78 |
| 92144A | 92081-2009 | SPRING Price: $2.78 |
| 92144B | 92144-1442 | SPRING Price: $8.60 |
| 92144C | 92144-1443 | SPRING,THROTTLE SHAFT Price: $11.45 |
| 92144D | 92144-1527 | SPRING,PILOT AIR SCRE Price: $8.34 |
| 92150 | 92002-2009 | BOLT Price: $10.32 |
| 92190 | 92190-1048 | TUBE Price: $11.45 |
