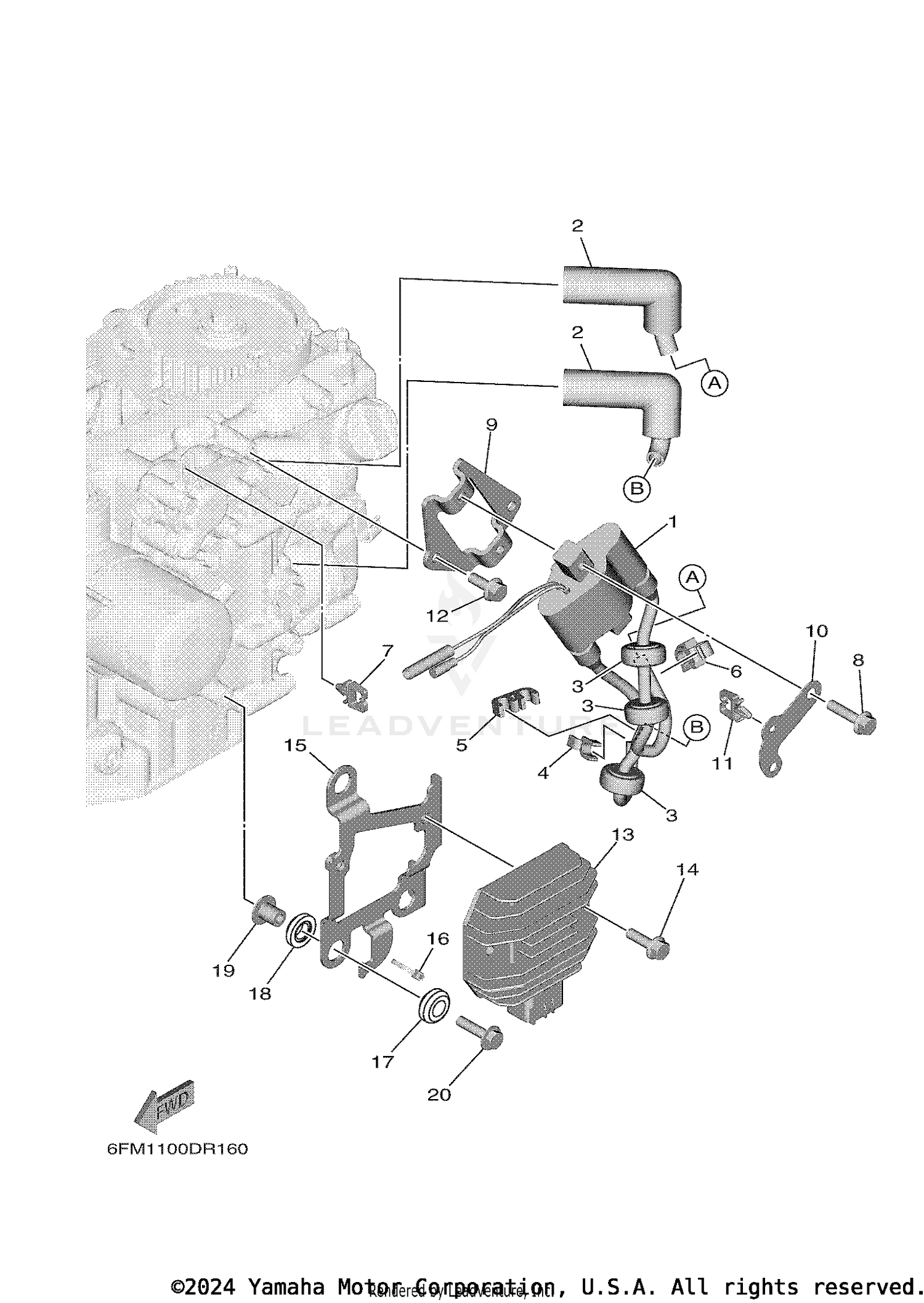

ELECTRICAL 2
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6F5-85570-13-00 | IGNITION COIL ASSY Price: $121.35 |
| 2 | 6AH-82370-00-00 | PLUG CAP ASSY Price: $79.65 |
| 3 | 90480-25003-00 | GROMMET Price: $5.50 |
| 4 | 90464-07M41-00 | CLAMP Price: $5.50 |
| 5 | 67F-82361-00-00 | CLAMP, CORD Price: $3.20 |
| 6 | 90464-09018-00 | CLAMP Price: $6.60 |
| 7 | 90464-11121-00 | CLAMP Price: $3.20 |
| 8 | 95D95-06020-00 | BOLT, FLANGE DEEP Price: $5.35 |
| 9 | 6FM-82316-00-00 | BRACKET, IGNITION COIL Price: $20.65 |
| 10 | 6FM-81539-00-00 | PLATE, COIL Price: $4.15 |
| 11 | 90464-11121-00 | CLAMP Price: $3.20 |
| 12 | 95D95-06016-00 | BOLT, FLANGE DEEP Price: $0.95 |
| 13 | 6FM-81960-00-00 | RECTIFIER & REGULATOR ASSY Price: $244.00 |
| 13 | 6FM-81960-10-00 | RECTIFIER & REGULATOR ASSY Price: $244.00 |
| 14 | 95D95-06020-00 | BOLT, FLANGE DEEP Price: $5.35 |
| 15 | 6FM-8711E-00-00 | STAY, RECTIFIER Price: $42.25 |
| 16 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 17 | 6FM-82535-01-00 | GROMMET Price: $1.15 |
| 18 | 6FM-82545-01-00 | GROMMET Price: $1.65 |
| 19 | 90387-06289-00 | COLLAR Price: $3.18 |
