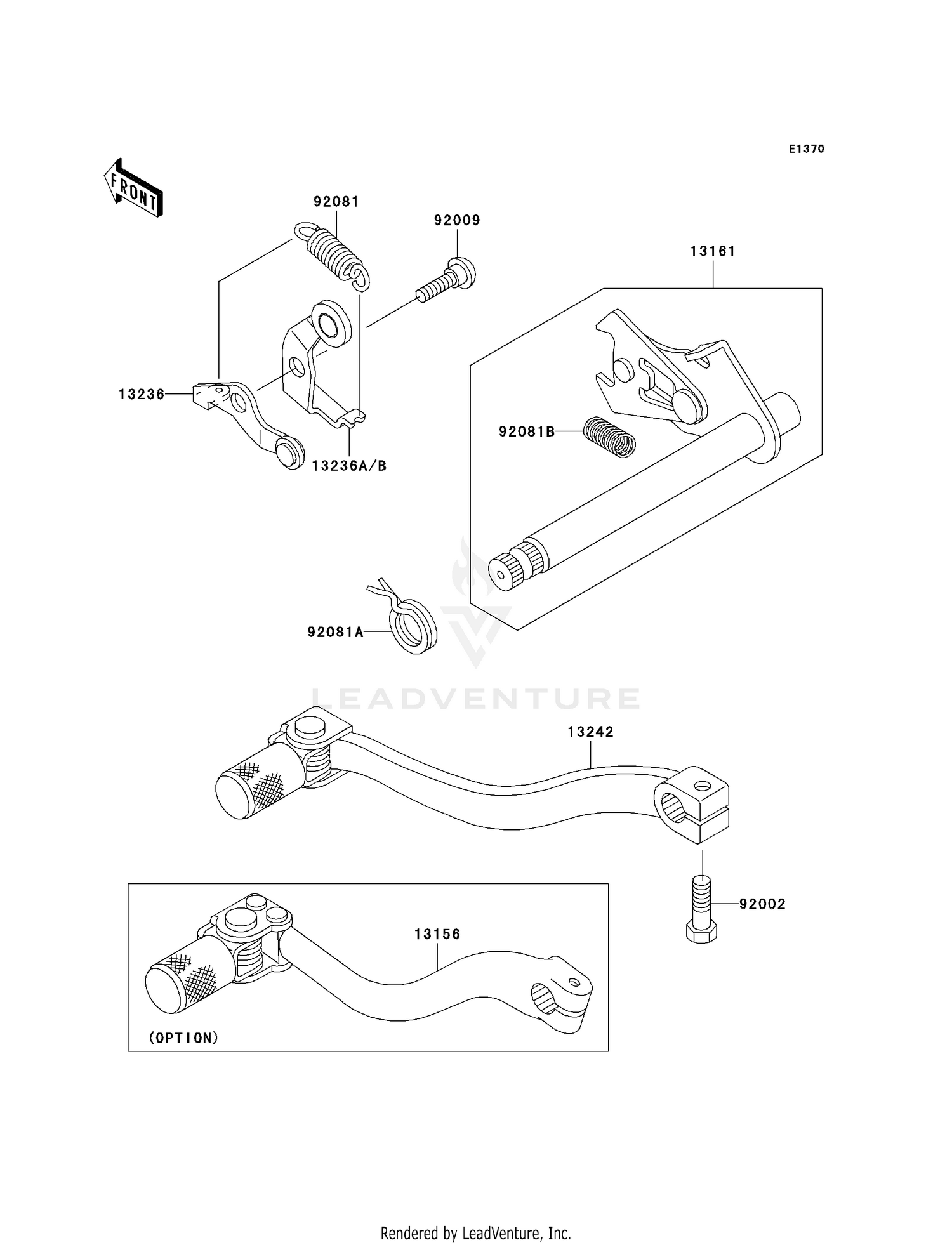

GEAR CHANGE MECHANISM
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 13161 | 13161-1280 | LEVER-COMP-CHANGE SHAFT Price: $54.33 |
| 13236 | 13236-1026 | LEVER-COMP,CHANGE DRUM Price: $8.40 |
| 13236A | 13236-1376 | LEVER-COMP,CHANGE This part replaces 13236-1347. Price: $9.00 |
| 13242 | 13242-1366 | LEVER-ASSY-CHANGE,PEDAL,STEEL Price: $46.73 |
| 92002 | 92002-1237 | BOLT,6X20 Price: $4.31 |
| 92009 | 92009-1102 | SCREW,CHANGE LEVER Price: $5.52 |
| 92081 | 92081-1109 | SPRING,CHANGE LEVER Price: $4.96 |
| 92081A | 92081-1129 | SPRING,TENSION Price: $9.43 |
