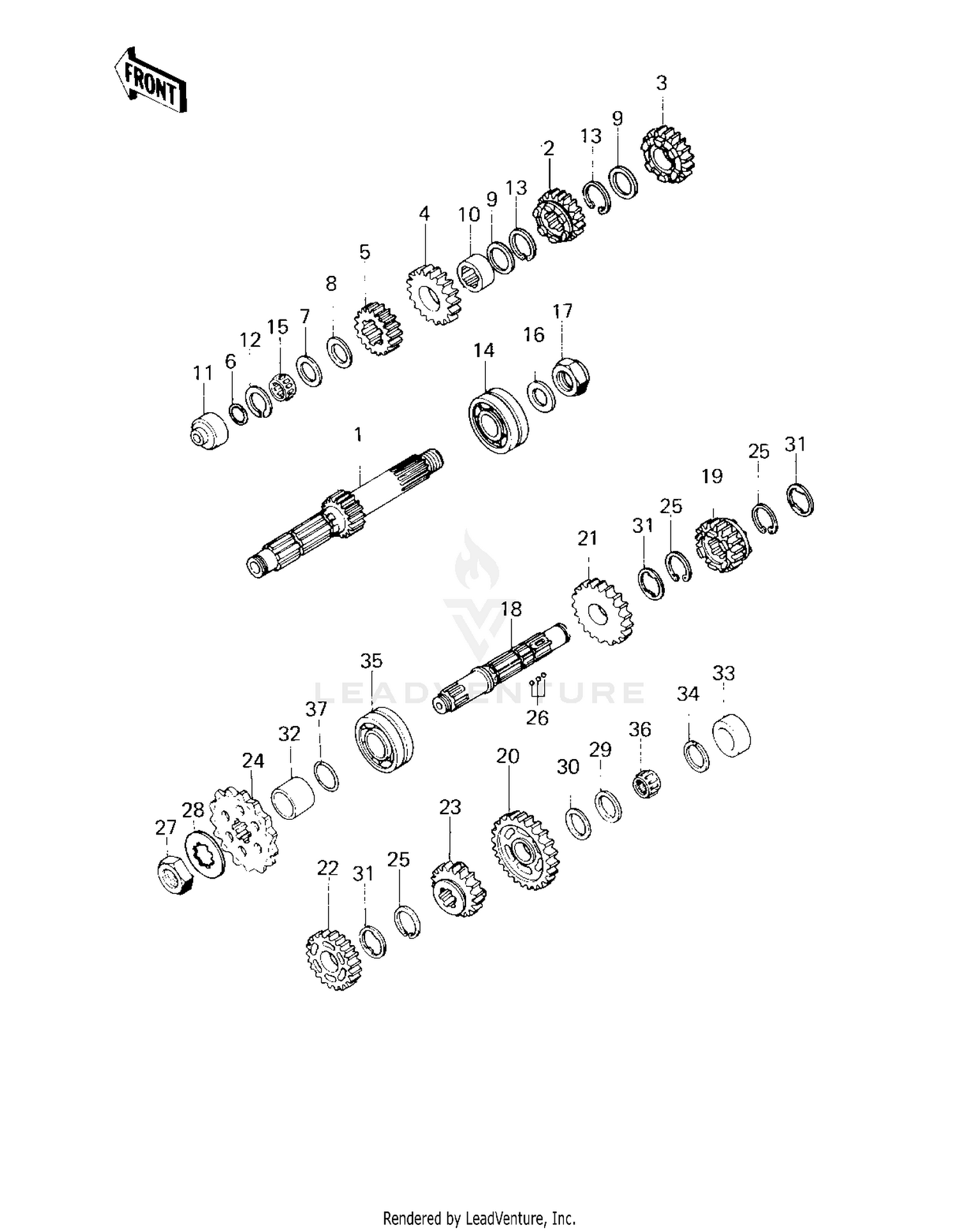

| Ref | Part Number | Description |
|---|
| 1 |
13127-051 |
SHAFT,DRIVE Price: $140.82 |
| 4 |
13129-1045 |
TOP GEAR,DRIVE SHAFT Price: $96.29 |
| 5 |
13260-1511 |
GEAR,INPUT 2ND,19T This part replaces 13130-041. Price: $71.58 |
| 6 |
670B1507 |
O RING,7MM Price: $1.28 |
| 9 |
92022-161 |
WASHER,25.3X30X1 Price: $10.65 |
| 10 |
92028-1007 |
BUSHING,DRV SHFT TOP Price: $29.67 |
| 11 |
92028-179 |
BUSHING,DRIVE SHAFT Price: $92.24 |
| 12 |
92033-015 |
RING-SNAP,20MM Price: $4.26 |
| 13 |
92033-026 |
RING-SNAP,24MM Price: $8.79 |
| 14 |
92045-035 |
BEARING,BALL Price: $73.57 |
| 15 |
92046-1030 |
BEARING,VS20/14A Price: $25.43 |
| 16 |
92125-002 |
WASHER Price: $16.45 |
| 17 |
92015-1555 |
NUT,20MM Price: $13.08 |
| 18 |
13128-1012 |
SHAFT,OUTPUT Price: $186.44 |
| 19 |
13129-1033 |
TOP GEAR,OUTPUT SHAFT Price: $111.98 |
| 20 |
13129-1046 |
LOW GEAR,OUTPUT SHAFT Price: $111.87 |
| 21 |
13260-1514 |
GEAR,OUTPUT 2ND,31T This part replaces 13129-1047. Price: $115.58 |
| 22 |
13260-1515 |
GEAR,OUTPUT 3RD,28T This part replaces 13129-1048. Price: $101.15 |
| 23 |
13260-1516 |
GEAR,OUTPUT 4TH,26T This part replaces 13129-1049. Price: $108.36 |
| 24 |
13144-063 |
ENGINE SPROCKET,16T Price: $87.88 |
| 25 |
480J3000 |
CIRCLIP-TYPE-C,30MM Price: $6.22 |
| 26 |
600A0500 |
BALL-STEEL,5/32 Price: $0.81 |
| 27 |
92015-1963 |
NUT,20MM This part replaces 92015-1254. Price: $14.90 |
| 28 |
92200-1065 |
WASHER Price: $6.63 |
| 31 |
92024-069 |
WASHER,TOOTHED,30.5X38X1 Price: $6.15 |
| 32 |
92027-288 |
COLLAR,ENG SPROCKET Price: $39.34 |
| 33 |
92028-180 |
BUSHING,26X34X16.6 Price: $28.82 |
| 34 |
92033-015 |
RING-SNAP,20MM Price: $4.26 |
| 35 |
92045-035 |
BEARING,BALL Price: $73.57 |
| 36 |
92046-035 |
BEARING,BALL,KT172313 Price: $12.33 |
