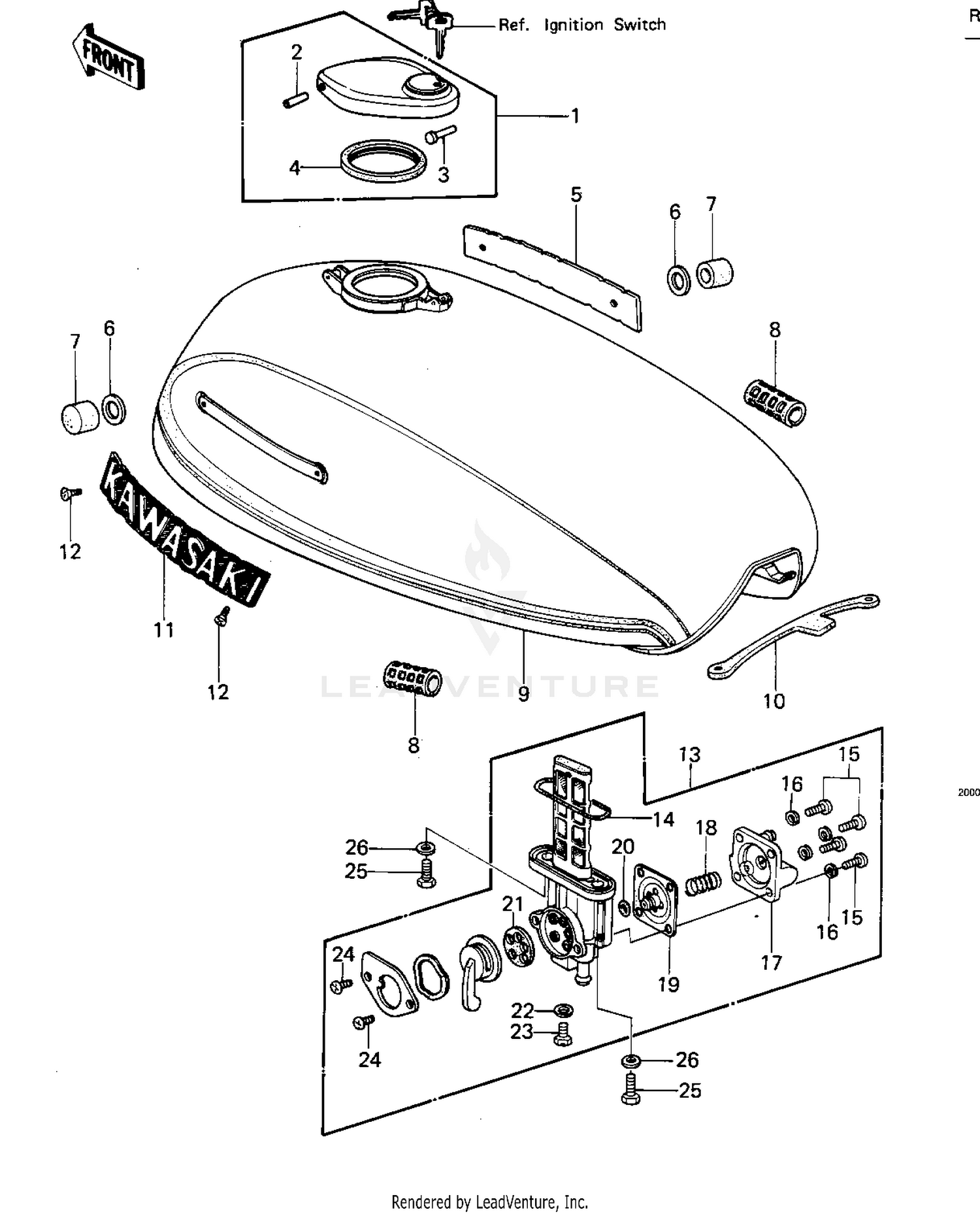

| Ref | Part Number | Description |
|---|
| 1 |
51048-012 |
CAP,FUEL TANK Price: $124.89 |
| 2 |
92043-127 |
PIN,CAP HINGE Price: $5.24 |
| 3 |
92043-126 |
PIN,HOOK Price: $4.78 |
| 4 |
51059-008 |
GASKET-FUEL TANK CAP Price: $10.97 |
| 5 |
56014-1006 |
EMBLEM,FUEL TANK Price: $132.38 |
| 6 |
92022-044 |
WASHER,10.5X26X2.3 Price: $3.92 |
| 10 |
92072-042 |
BAND,FUEL TANK Price: $15.19 |
| 11 |
56014-1006 |
EMBLEM,FUEL TANK Price: $132.38 |
| 12 |
221AB0306 |
SCREW-CSK-CROS This part replaces 221C0306. Price: $0.74 |
| 13 |
51023-1018 |
TAP ASSY,FUEL Price: $59.80 |
| 15 |
220AA0412 |
SCREW-PAN-CROS,4X12 This part replaces 220B0412. Price: $0.21 |
| 16 |
461F0400 |
WASHER SPRING 4MM Price: $0.47 |
| 17 |
51036-1001 |
COVER ASSY,FUEL TAP Price: $35.60 |
| 18 |
92081-1054 |
SPRING,DIAPHRAGM Price: $8.97 |
| 19 |
16126-1011 |
DIAPHRAGM VALVE ASSY Price: $51.60 |
| 21 |
11009-1044 |
GASKET,FUEL TAP Price: $19.31 |
| 22 |
11009-1045 |
GASKET,DRAIN BOLT Price: $1.36 |
| 23 |
92001-1089 |
BOLT,DRAIN Price: $13.16 |
| 24 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 25 |
92001-114 |
BOLT-HEX HEAD,6X16 Price: $4.37 |
