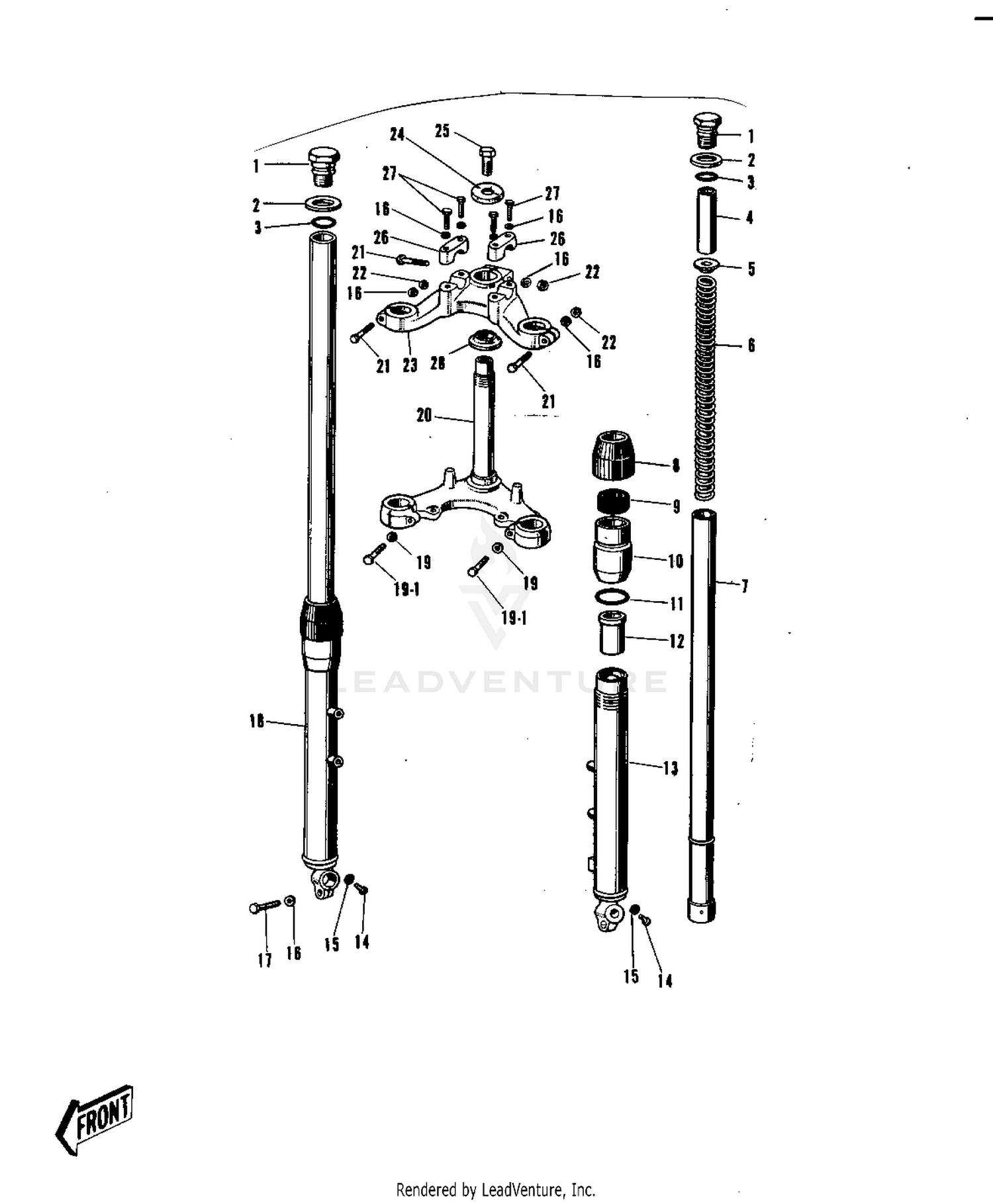

| Ref | Part Number | Description |
|---|
| 1 |
44041-022 |
BOLT FORK TOP Price: $22.30 |
| 2 |
44043-014 |
WASHER FORK TOP Price: $2.73 |
| 4 |
44028-016 |
SPACER FORK SPR GUIDE Price: $4.95 |
| 5 |
44029-012 |
GUIDE FORK SPRING Price: $1.74 |
| 6 |
44026-024 |
SPRING FORK Price: $14.30 |
| 7 |
44013-018 |
TUBE FORK INNER Price: $77.72 |
| 8 |
44010-006 |
DUST SHIELD FORK Price: $43.93 |
| 9 |
92049-1049 |
OIL SEAL Price: $21.20 |
| 10 |
44007-007 |
NUT FORK OUTER TUBE Price: $59.31 |
| 12 |
44015-012 |
GUIDE FORK INNER TUBE Price: $9.27 |
| 13 |
44005-023 |
TUBE,LH,FORK OUTER Price: $70.64 |
| 15 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 16 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 17 |
115BA0825 |
BOLT-SMALL-UPSET,8X25 This part replaces 115G0825. Price: $5.42 |
| 18 |
44006-022 |
TUBE,RH,FORK OUTER Price: $77.89 |
| 19 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 20 |
44037-026 |
STEM STEERING Price: $96.89 |
| 21 |
92002-1838 |
BOLT,FLANGED,8X40 This part replaces 92001-1578. Price: $8.19 |
| 22 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68 |
| 23 |
44039-027 |
HEAD STEERING STEM Price: $112.52 |
| 24 |
44043-016 |
WASHER STRNG STEM HD Price: $10.99 |
| 25 |
44041-007 |
BOLT STRNG STEM HEAD Price: $16.04 |
| 26 |
46012-1252 |
HOLDER-HANDLE,UPP This part replaces 46012-004. Price: $13.44 |
| 27 |
92001-1405 |
BOLT 8X38 Price: $16.50 |
