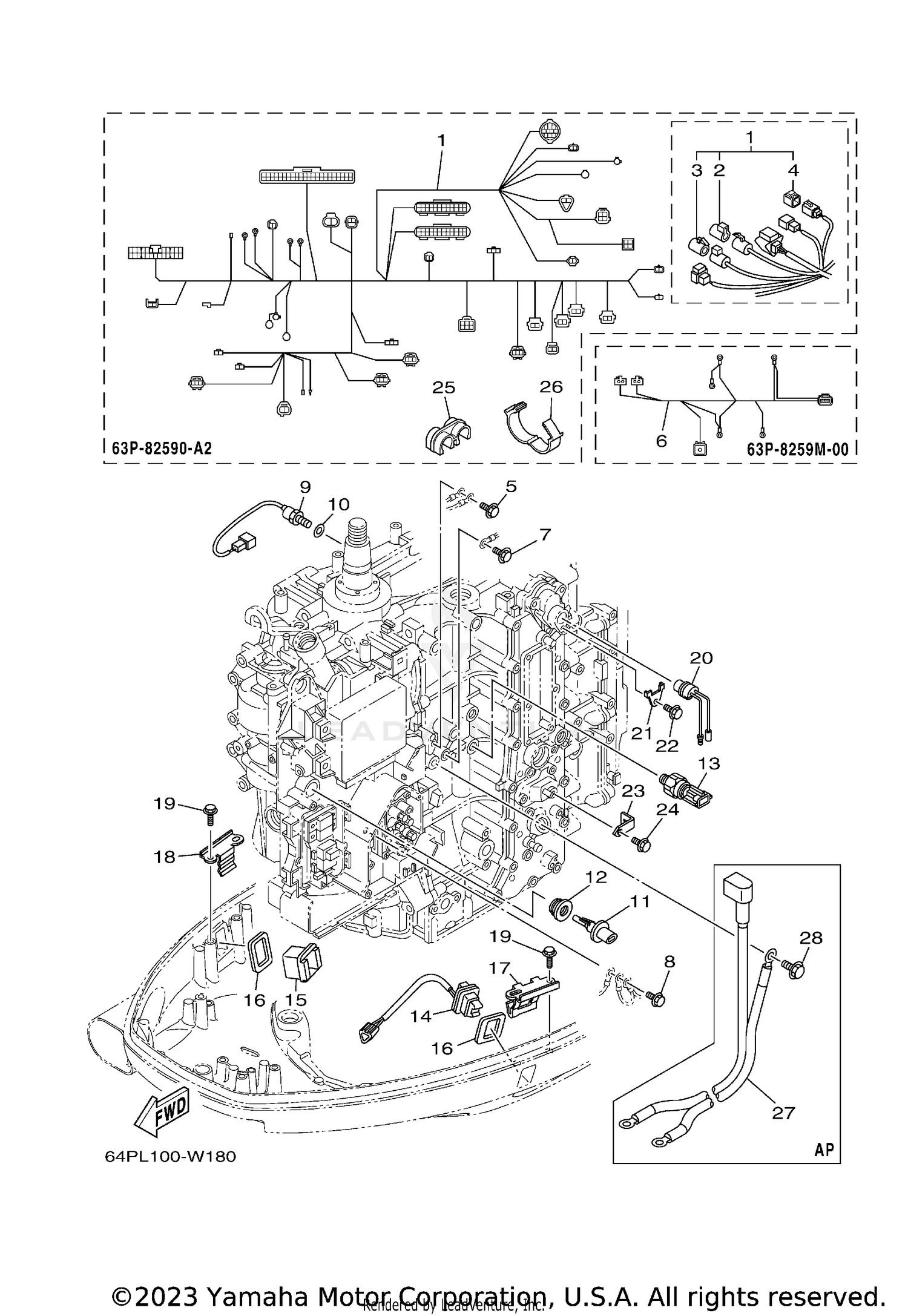

ELECTRICAL 3
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 6DA-82582-00-00 | CAP 1 (FEMALE) Price: $4.05 |
| 3 | 6DA-82582-10-00 | CAP 1 (MALE) Price: $5.55 |
| 4 | 6Y8-82582-11-00 | CAP 1 (4 PIN) Price: $7.00 |
| 5 | 97E95-06516-00 | BOLT, HEXAGON W/W Price: $4.20 |
| 6 | 63P-8259M-00-00 | WIRE HARNESS ASSY 2 Price: $227.20 |
| 7 | 97E95-06516-00 | BOLT, HEXAGON W/W Price: $4.20 |
| 8 | 97E95-06512-00 | BOLT, HEXAGON W/W Price: $2.05 |
| 9 | 61A-85790-01-00 | THERMOSENSOR ASSY Price: $144.10 |
| 10 | 92990-10600-00 | WASHER, PLATE Price: $3.00 |
| 11 | 63P-85886-00-00 | SENSOR, AIR TEMPERATURE Price: $45.95 |
| 12 | 63P-14435-00-00 | GROMMET Price: $7.40 |
| 13 | 6AW-83651-01-00 | SENDER, OIL PRESSURE Price: $363.10 |
| 14 | 69J-82563-01-00 | TRIM & TILT SWITCH ASSY Price: $63.90 |
| 15 | 69J-42723-01-00 | COVER, BOTTOM Price: $34.15 |
| 16 | 69J-82587-01-00 | GASKET Price: $5.55 |
| 17 | 63P-83614-01-00 | BRACKET Price: $22.80 |
| 18 | 6DA-83614-00-00 | BRACKET Price: $7.20 |
| 19 | 90109-06316-00 | BOLT Price: $1.90 |
| 20 | 6P2-82560-01-00 | THERMO SWITCH ASSY Price: $58.00 |
| 21 | 6E9-82588-00-00 | PLATE Price: $15.80 |
| 22 | 90109-06M80-00 | BOLT Price: $2.95 |
| 23 | 63P-8366P-01-00 | BRACKET 4 Price: $8.10 |
| 24 | 97E95-06512-00 | BOLT, HEXAGON W/W Price: $2.05 |
| 25 | 90464-12224-00 | CLAMP Price: $3.76 |
| 26 | 90464-26001-00 | CLAMP Price: $2.34 |
