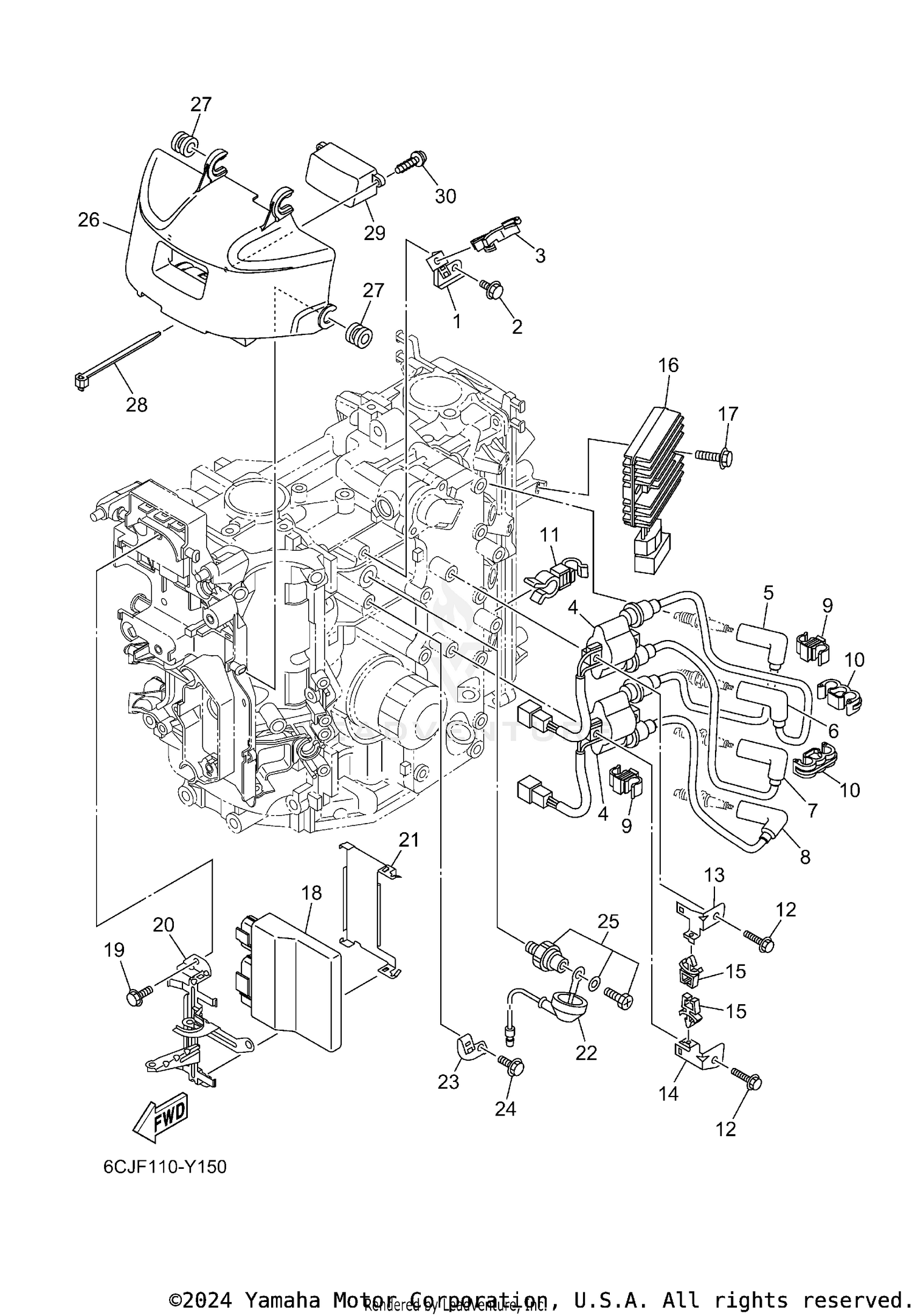

| Ref | Part Number | Description |
|---|
| 1 |
6C5-85525-00-00 |
PLATE Price: $5.55 |
| 2 |
97E95-06514-00 |
BOLT, HEXAGON W/W Price: $1.25 |
| 3 |
90464-18246-00 |
CLAMP Price: $2.44 |
| 4 |
63P-82310-01-00 |
IGNITION COIL ASSY Price: $176.15 |
| 5 |
6CJ-82340-10-00 |
HIGH TENSION CORD ASSY 1 Price: $105.65 |
| 6 |
6CJ-82340-20-00 |
HIGH TENSION CORD ASSY 2 Price: $99.15 |
| 7 |
6CJ-82340-30-00 |
HIGH TENSION CORD ASSY 3 Price: $101.35 |
| 8 |
6CJ-82340-40-00 |
HIGH TENSION CORD ASSY 4 Price: $99.15 |
| 9 |
90464-07019-00 |
CLAMP Price: $2.00 |
| 10 |
90464-07020-00 |
CLAMP Price: $2.10 |
| 11 |
90464-13013-00 |
CLAMP Price: $2.80 |
| 12 |
97E95-06525-00 |
BOLT, HEXAGON W/W Price: $1.00 |
| 13 |
6C5-82316-01-00 |
BRACKET, IGNITION COIL Price: $13.35 |
| 14 |
6C5-82316-11-00 |
BRACKET, IGNITION COIL Price: $13.35 |
| 15 |
90464-06001-00 |
CLAMP Price: $3.20 |
| 16 |
68V-81960-10-00 |
RECTIFIER & REGULATOR ASSY Price: $263.70 |
| 17 |
97E95-06525-00 |
BOLT, HEXAGON W/W Price: $1.00 |
| 18 |
6CJ-8591A-20-00 |
ENGINE CONTROL UNIT ASSY Price: $1,098.20 |
| 19 |
97E95-06516-00 |
BOLT, HEXAGON W/W Price: $4.20 |
| 20 |
6CJ-82588-00-00 |
PLATE Price: $47.45 |
| 21 |
6CJ-8253B-00-00 |
PLATE, LOCK Price: $24.05 |
| 22 |
68V-81315-01-00 |
LEAD WIRE ASSY Price: $10.35 |
| 23 |
6C5-82388-10-00 |
PLATE Price: $4.30 |
| 24 |
97E95-06514-00 |
BOLT, HEXAGON W/W Price: $1.25 |
| 25 |
64J-82504-00-00 |
OIL PRESSURE SWITCH ASSY Price: $33.30 |
| 26 |
6CJ-81942-00-00 |
COVER Price: $51.35 |
| 27 |
90480-12X00-00 |
GROMMET This part replaces 90480-12314-00. Price: $1.25 |
| 28 |
437-83936-11-00 |
BAND, SWITCH CORD This part replaces 90465-13M24-00. Price: $5.00 |
| 29 |
6CJ-83559-00-00 |
COVER, METER Price: $14.35 |
