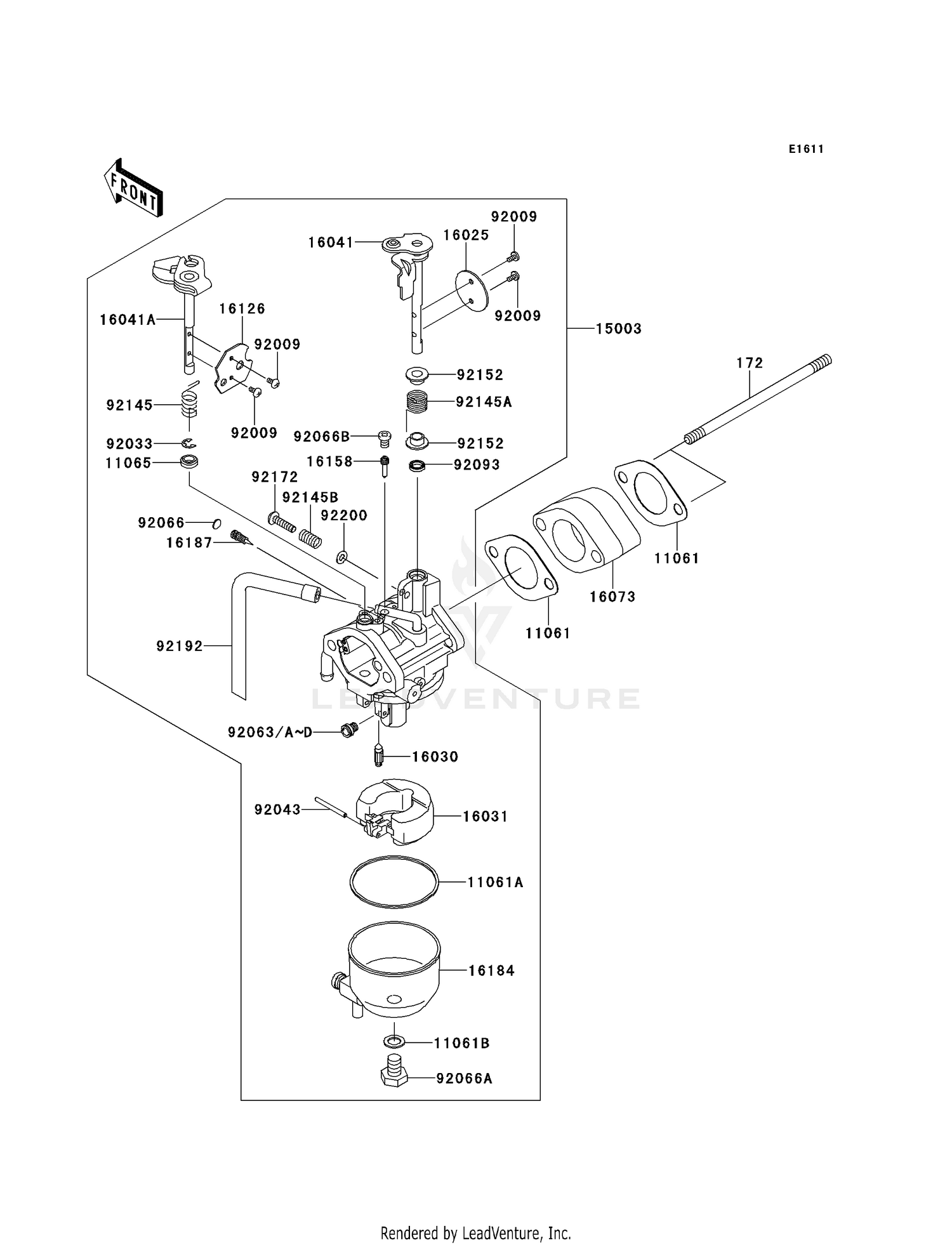

CARBURETOR
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 172 | 172BA06105 | BOLT-STUD,6X105 Price: $3.72 |
| 11061 | 11061-7027 | GASKET,HEAD-CARB Price: $1.09 |
| 11061A | 11061-7044 | GASKET,FLOAT CHAMBER Price: $8.74 |
| 11061B | 11061-7045 | GASKET,CHAMBER Price: $2.01 |
| 11065 | 11065-7012 | CAP Price: $1.67 |
| 15003 | 15004-0953 | CARBURETOR-ASSY This part replaces 15003-2943. Price: $207.11 |
| 16025 | 16025-7008 | VALVE-THROTTLE Price: $8.44 |
| 16030 | 16030-7004 | VALVE-FLOAT Price: $23.73 |
| 16031 | 16031-7005 | FLOAT This part replaces 16031-7004. Price: $27.02 |
| 16041 | 16041-2261 | SHAFT-CARBURETOR Price: $32.74 |
| 16041A | 16041-2262 | SHAFT-CARBURETOR Price: $32.74 |
| 16073 | 16073-7008 | INSULATOR Price: $5.82 |
| 16126 | 16126-2242 | VALVE Price: $7.76 |
| 16158 | 16158-2051 | JET-SLOW,#54 Price: $29.48 |
| 16184 | 16184-7018 | CHAMBER-ASSY-FLOAT Price: $38.40 |
| 16187 | 16187-7002 | NEEDLE-JET Price: $15.20 |
| 92009 | 92009-2049 | SCREW Price: $0.80 |
| 92033 | 92033-7007 | RING-SNAP Price: $1.88 |
| 92043 | 92043-7016 | PIN,FLOAT Price: $2.31 |
| 92063D | 92063-7045 | JET-MAIN,#112 Price: $26.83 |
| 92066 | 92066-7009 | PLUG,EXPANSION Price: $7.35 |
| 92066A | 92066-7020 | PLUG Price: $12.41 |
| 92066B | 92066-7021 | PLUG Price: $4.85 |
| 92093 | 92093-7001 | SEAL,D=5.9 Price: $2.26 |
| 92145 | 92145-2151 | SPRING Price: $2.94 |
| 92145A | 92145-2152 | SPRING Price: $2.94 |
| 92145B | 92145-7039 | SPRING Price: $2.53 |
| 92152 | 92152-7008 | COLLAR Price: $5.41 |
| 92172 | 92172-7007 | SCREW Price: $1.35 |
| 92192 | 92192-2085 | TUBE Price: $7.76 |
