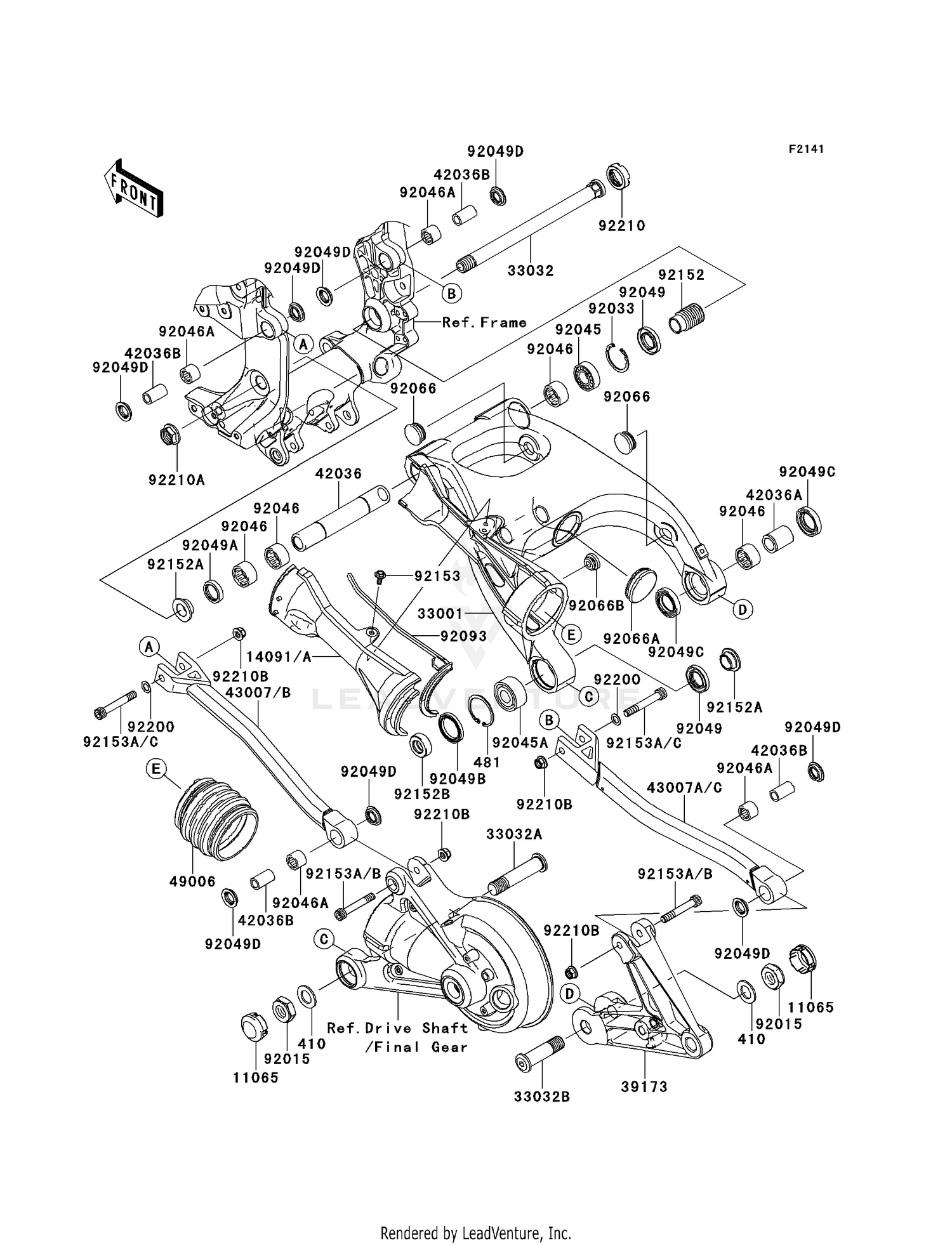

| Ref | Part Number | Description |
|---|
| 410 |
410AA2000 |
WASHER-PLAIN-SMALL,20MM Price: $2.61 |
| 481 |
92033-1042 |
RING-SNAP,47MM This part replaces 481J4700. Price: $4.22 |
| 11065 |
11065-0180 |
CAP Price: $7.69 |
| 14091A |
14091-1627 |
COVER,DRIVE SHAFT Price: $37.59 |
| 33001 |
33001-0145-458 |
ARM-COMP-SWING,P.SILVER Price: $1,046.82 |
| 33032 |
33032-0023 |
SHAFT-SWING ARM,PIVOT Price: $104.45 |
| 33032A |
33032-0024 |
SHAFT-SWING ARM,REAR GEAR CASE Price: $74.54 |
| 33032B |
33032-0025 |
SHAFT-SWING ARM,AXLE BRACKET Price: $74.54 |
| 39173 |
39173-0070-458 |
BRACKET-AXLE,RH,P.SILVER Price: $208.52 |
| 42036 |
42036-0042 |
SLEEVE,SWING ARM PIVO Price: $74.58 |
| 42036A |
42036-0044 |
SLEEVE,20.15X28X36 Price: $31.86 |
| 49006 |
49006-0067 |
BOOT,REAR GEAR CASE Price: $55.25 |
| 92015 |
92015-1770 |
NUT,LOCK,20MM Price: $28.25 |
| 92033 |
92033-1041 |
RING-SNAP,42MM Price: $6.16 |
| 92045 |
92045-0017 |
BEARING-BALL,6004UL11 Price: $14.39 |
| 92045A |
92045-0064 |
BEARING-BALL,#5204 Price: $46.45 |
| 92046 |
92046-0008 |
BEARING-NEEDLE,7E-HVS 28X34X17 Price: $21.54 |
| 92046A |
92046-1272 |
BEARING-NEEDLE,SFYZM182417 Price: $16.42 |
| 92049 |
92049-1314 |
SEAL-OIL,MHSA25X42X6 Price: $13.75 |
| 92049A |
92049-1352 |
SEAL-OIL,MHSA25X34X7 Price: $9.28 |
| 92049B |
92049-1381 |
SEAL-OIL,MHA 35X47X5 Price: $13.08 |
| 92049C |
92049-1386 |
SEAL-OIL Price: $9.63 |
| 92049D |
92049-1493 |
SEAL-OIL,KCR MF018N1 Price: $9.19 |
| 92066 |
92066-0084 |
PLUG Price: $7.69 |
| 92066A |
92066-0090 |
PLUG Price: $7.69 |
| 92066B |
92066-1320 |
PLUG,17MM Price: $4.82 |
| 92093 |
92093-0122 |
SEAL,DRIVE SHAFT COVER Price: $37.51 |
| 92152 |
92152-2981 |
COLLAR,SWING ARM,RH,L=47 This part replaces 92152-0362. Price: $46.79 |
| 92152A |
92152-3997 |
COLLAR,SWING ARM,L=12.5 This part replaces 92152-0363. Price: $8.97 |
| 92152B |
92152-0473 |
COLLAR Price: $27.22 |
| 92153 |
92153-1587 |
BOLT,UPSET-WP,6X16 Price: $1.78 |
| 92200 |
92200-0324 |
WASHER,11X18X1 Price: $7.75 |
| 92210 |
92210-0134 |
NUT,30MM Price: $28.51 |
| 92210A |
92210-0320 |
NUT,FLANGED,20MM Price: $11.93 |
