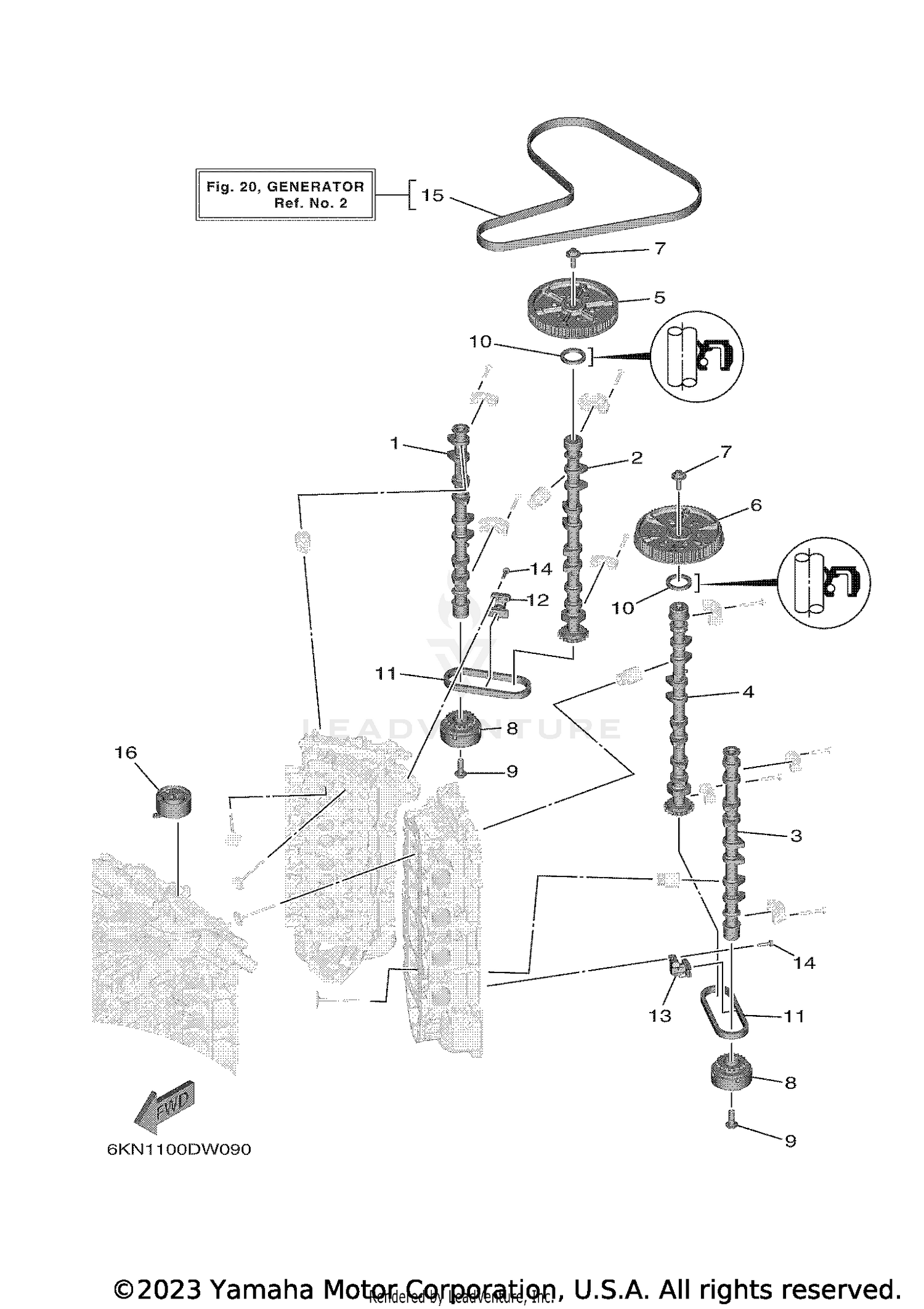

VALVE 2
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6KN-12171-00-00 | CAMSHAFT 1 Price: $538.70 |
| 2 | 6KN-12181-00-00 | CAMSHAFT 2 Price: $541.50 |
| 3 | 6KN-12172-00-00 | CAMSHAFT 3 Price: $514.15 |
| 4 | 6KN-12182-00-00 | CAMSHAFT 4 Price: $517.90 |
| 5 | 6GR-115A0-00-00 | DRIVEN GEAR ASSY Price: $250.95 |
| 6 | 6GR-11567-00-00 | GEAR, DRIVEN 2 Price: $118.20 |
| 7 | 90119-10050-00 | BOLT, WITH WASHER Price: $14.75 |
| 8 | 6GR-12645-00-00 | PULLEY ASSY 1 Price: $530.75 |
| 9 | 90401-12002-00 | BOLT, UNION Price: $7.30 |
| 10 | 93102-38008-00 | OIL SEAL Price: $22.55 |
| 11 | 94581-99044-00 | CHAIN Price: $44.05 |
| 12 | 6GR-12210-00-00 | TENSIONER ASSY, CAM Price: $183.85 |
| 13 | 6GR-12230-00-00 | TENSIONER ASSY, CAM Price: $183.85 |
| 14 | 90105-06037-00 | BOLT, FLANGE Price: $3.20 |
| 15 | 6GR-W4624-00-00 | BELT (WITH ROTOR BOL Price: $196.15 |
