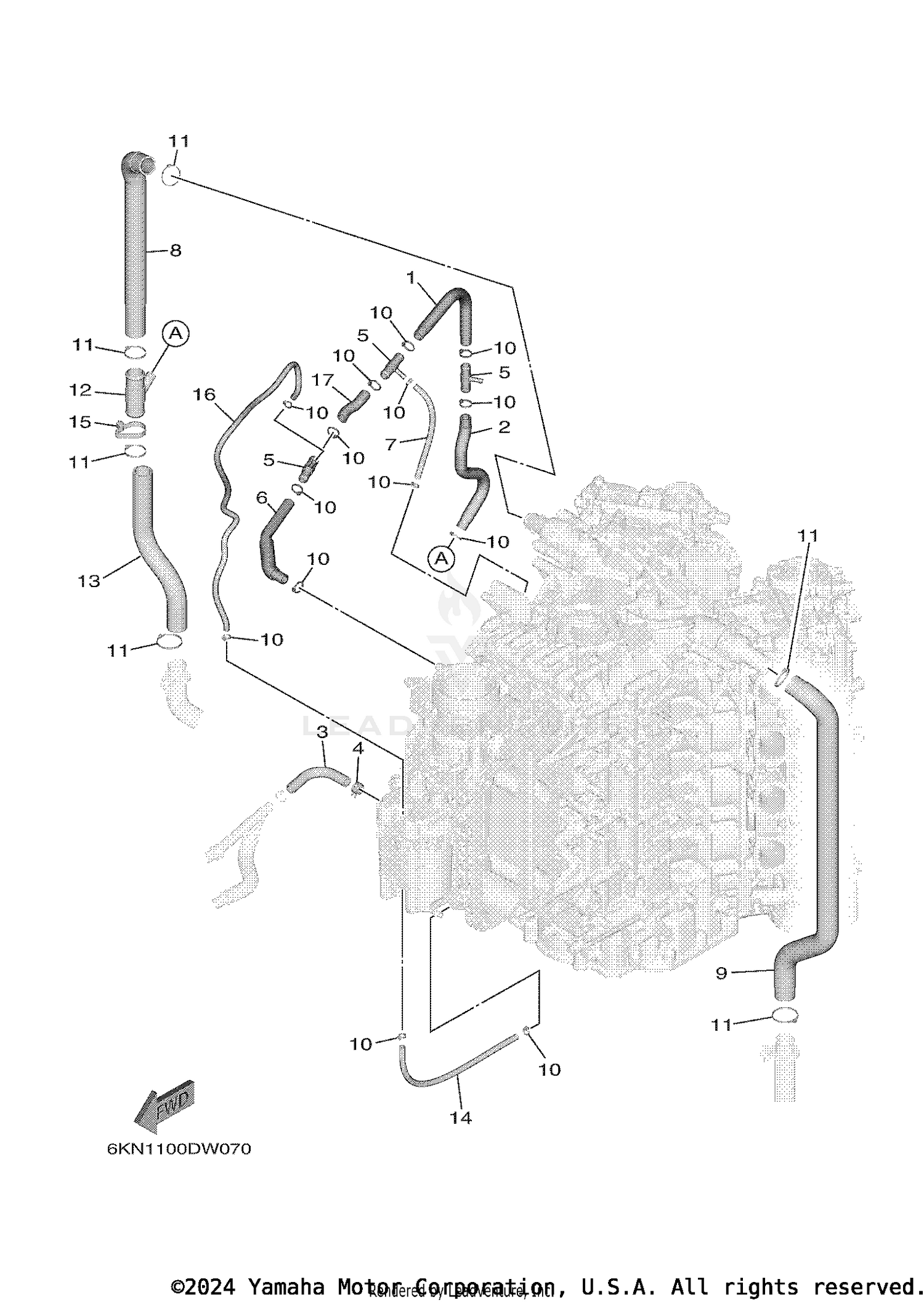

CYLINDER CRANKCASE 4
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6KN-12576-00-00 | HOSE 1 Price: $13.20 |
| 2 | 6KN-12579-00-00 | HOSE 4 Price: $20.95 |
| 3 | 6GR-42541-00-00 | PIPE 1 Price: $4.65 |
| 4 | 90467-150A5-00 | CLIP Price: $2.99 |
| 5 | 6GR-24376-00-00 | PIPE, JOINT 1 Price: $4.15 |
| 6 | 6KN-12551-00-00 | HOSE 7 Price: $10.75 |
| 7 | 90445-094K7-00 | HOSE This part replaces 90445-09M00-00. Price: $4.10 |
| 8 | 6GR-1243A-00-00 | HOSE 1 Price: $38.60 |
| 9 | 6GR-1243E-00-00 | HOSE 2 Price: $64.15 |
| 10 | 90465-10098-00 | CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 11 | 90465-11M59-00 | CLAMP Price: $7.10 |
| 12 | 6GR-12594-00-00 | JOINT, HOSE 4 Price: $11.80 |
| 13 | 6GR-1244H-00-00 | HOSE 5 Price: $20.10 |
| 14 | 5RB-24315-00-00 | PIPE 5 This part replaces 90445-09304-00. Price: $8.49 |
| 15 | 437-83936-11-00 | BAND, SWITCH CORD This part replaces 90465-13M24-00. Price: $5.00 |
| 16 | 6KN-12588-00-00 | HOSE 5 Price: $14.35 |
