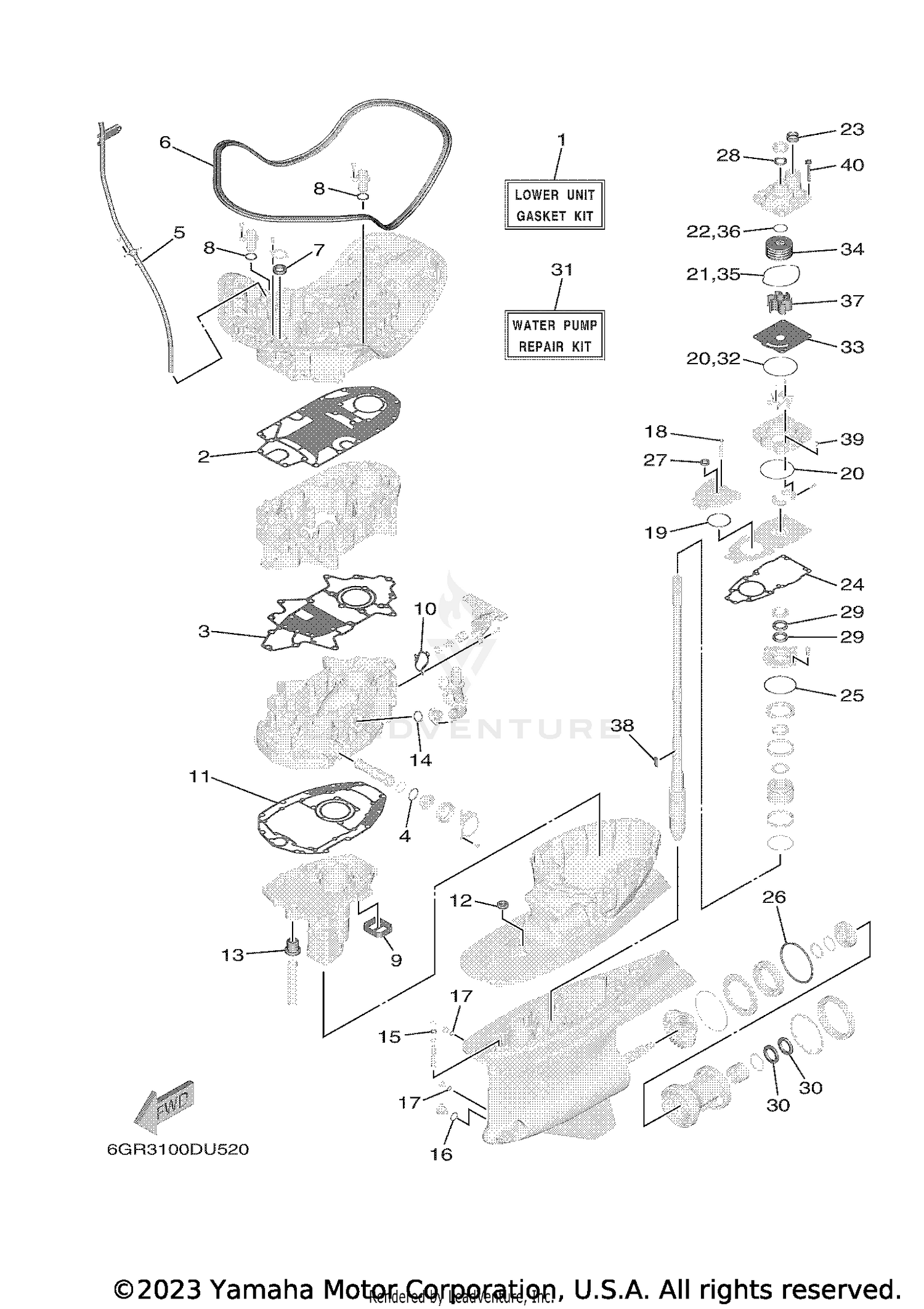

REPAIR KIT 2
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6GR-W0001-23-00 | LOWER UNIT GASKET KIT This part replaces 6GR-W0001-22-00. Price: $729.70 |
| 3 | 6GR-1531C-00-00 | GASKET, OIL PAN 2 Price: $97.00 |
| 4 | 93210-34633-00 | O-RING (2HF) Price: $10.49 |
| 5 | 93210-19MJ3-00 | O-RING Price: $8.15 |
| 6 | 6GR-42716-00-00 | RUBBER SEAL 1 Price: $105.05 |
| 7 | 93102-26004-00 | OIL SEAL Price: $33.75 |
| 9 | 6GR-45127-00-00 | SEAL Price: $6.95 |
| 10 | 6EK-12435-A0-00 | GASKET Price: $2.85 |
| 11 | 6GR-45113-00-00 | GASKET, UPPER CASING Price: $64.00 |
| 12 | 6GR-44521-00-00 | SEAL Price: $5.80 |
| 15 | 93210-10010-00 | O-RING Price: $2.05 |
| 16 | 93210-19123-00 | O-RING Price: $8.99 |
| 17 | 93210-09350-00 | O-RING This part replaces 93210-09165-00. Price: $7.49 |
| 18 | 93210-07100-00 | O-RING Price: $7.49 |
| 19 | 93210-65752-00 | O-RING This part replaces 93210-64488-00. Price: $23.99 |
| 20 | 93210-97690-00 | O-RING Price: $14.49 |
| 21 | 93211-08001-00 | O-RING Price: $4.40 |
| 22 | 93210-37M67-00 | O-RING This part replaces 93210-37160-00. Price: $3.80 |
| 24 | 6GR-44315-00-00 | GASKET, WATER PUMP Price: $16.70 |
| 25 | 93210-89535-00 | O-RING (70E) Price: $5.45 |
| 26 | 93211-26001-00 | O-RING Price: $13.70 |
| 27 | 93106-14001-00 | OIL SEAL Price: $12.85 |
| 28 | 93109-26001-00 | OIL SEAL Price: $19.50 |
| 29 | 93101-30037-00 | OIL SEAL Price: $25.50 |
| 30 | 93101-37001-00 | OIL SEAL Price: $17.10 |
| 31 | 6GR-W0078-01-00 | WATER PUMP REPAIR KIT Price: $198.45 |
| 32 | 93210-97690-00 | O-RING Price: $14.49 |
| 33 | 6GR-44323-00-00 | OUTER PLATE, CARTRID Price: $19.45 |
| 34 | 6GR-44322-00-00 | INSERT, CARTRIDGE Price: $110.85 |
| 35 | 93211-08001-00 | O-RING Price: $4.40 |
| 36 | 93210-37M67-00 | O-RING This part replaces 93210-37160-00. Price: $3.80 |
| 37 | 6GR-44352-00-00 | IMPELLER Price: $51.20 |
| 38 | 6AW-44336-00-00 | KEY Price: $31.55 |
| 39 | 93606-12019-00 | PIN, DOWEL Price: $4.60 |
