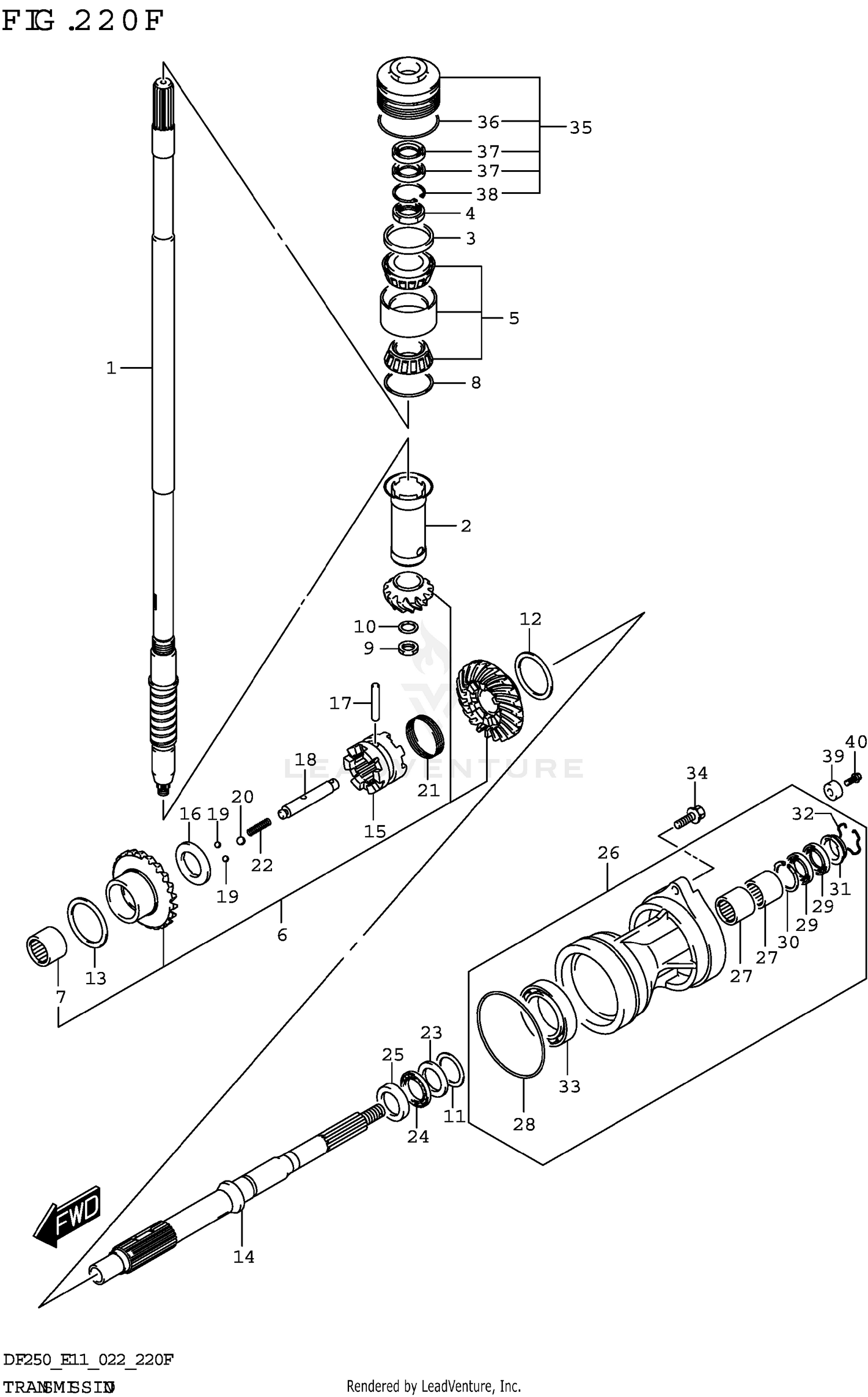

TRANSMISSION (DF250ST)
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 57133-98J00 | COLLAR DRIVE SHAFT Price: Call Us |
| 3 | 57134-93J00 | SPACER DRIVE SFT BRG Price: Call Us |
| 4 | 09159-28003 | NUT (M28) Price: Call Us |
| 5 | 09269-32002 | BEARING (32X66X49) Price: Call Us |
| 6 | 57300-98880 | PINION / GEAR SET Price: Call Us |
| 9 | 09140-16026 | NUT Price: Call Us |
| 10 | 08221-16256 | SHIM Price: Call Us |
| 14 | 57610-98J20 | SHAFT PROPELLER Price: Call Us |
| 15 | 57621-98J10 | SHIFTER CLUTCH DOG Price: Call Us |
| 16 | 09160-25080 | WASHER (25X38X1) Price: Call Us |
| 17 | 09202-08011 | PIN (8X53) Price: Call Us |
| 18 | 57631-98J10 | PIN CONNECTOR Price: Call Us |
| 19 | 06111-07004 | BALL Price: Call Us |
| 20 | 06111-11004 | BALL Price: Call Us |
| 21 | 09440-56001 | SPRING Price: Call Us |
| 22 | 09440-09040 | SPRING Price: Call Us |
| 23 | 09160-30056 | WASHER (32X47X3) Price: Call Us |
| 24 | 09269-30014 | BEARING (30X47X2) Price: Call Us |
| 25 | 09160-30055 | WASHER (30X47X6) Price: Call Us |
| 26 | 56120-98J01-YAY | HOUSING PROP SHAFT BRG Price: Call Us |
| 32 | 09387-45001 | RING Price: Call Us |
| 34 | 09116-10177 | BOLT (10X35) Price: Call Us |
| 35 | 56130-93J02 | HOUSING DRIVE SHAFT BRG Price: Call Us |
| 39 | 55321-87J01 | ANODE PROTECTION Price: Call Us |
