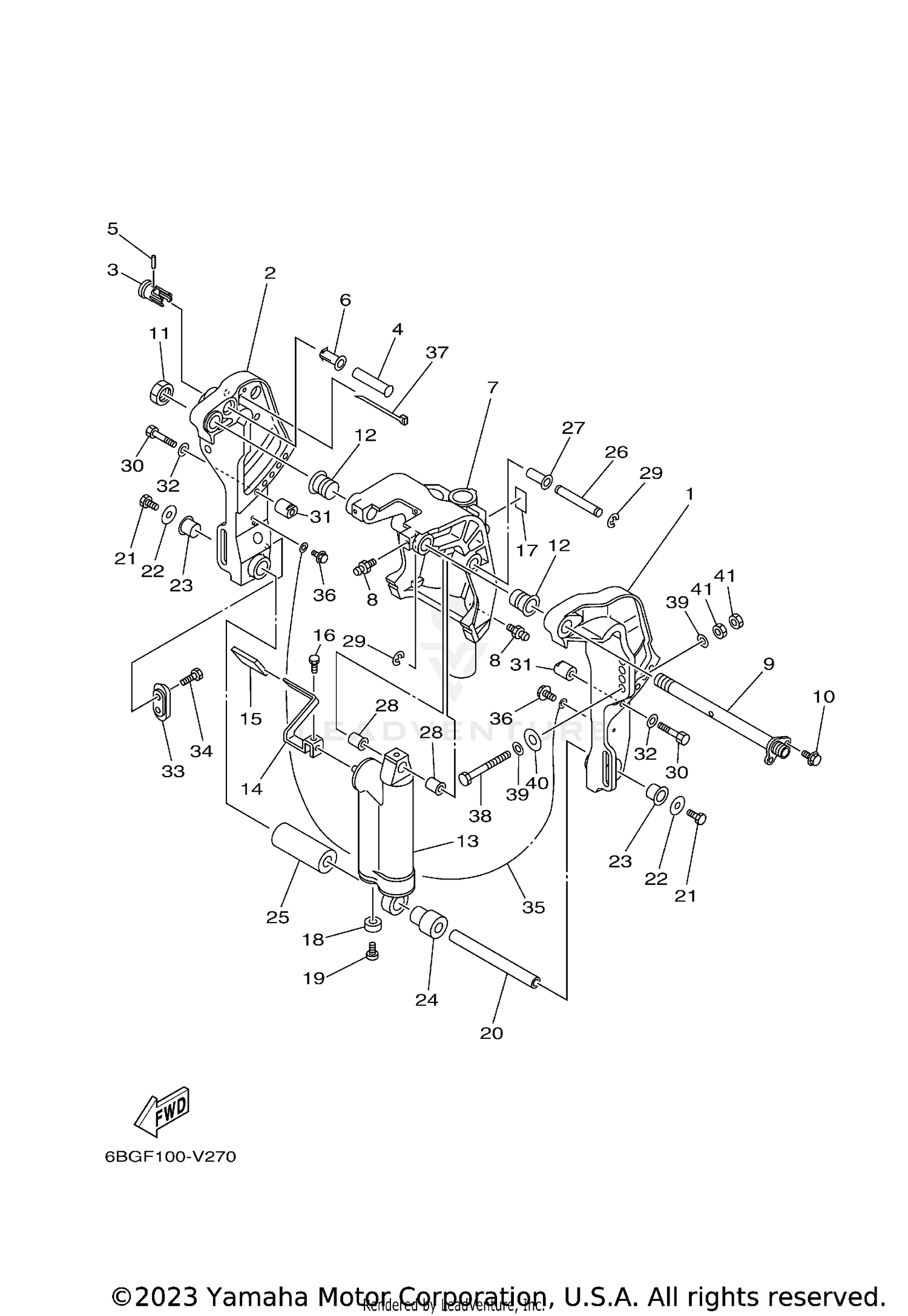

| Ref | Part Number | Description |
|---|
| 1 |
6K9-43111-10-8D |
BRACKET, CLAMP 1 Price: $332.80 |
| 2 |
6BG-43112-10-8D |
BRACKET, CLAMP 2 Price: $384.95 |
| 3 |
6FM-43192-00-00 |
KNOB, STOPPER Price: $16.50 |
| 4 |
65W-43191-00-00 |
SHAFT, STOPPER Price: $19.65 |
| 5 |
91690-30018-00 |
PIN, SPRING Price: $6.40 |
| 6 |
6FM-43189-00-00 |
BUSHING Price: $16.30 |
| 8 |
93700-06M03-00 |
NIPPLE, GREASE Price: $8.25 |
| 9 |
6K9-43131-01-00 |
BOLT, CLAMP BRACKET Price: $274.40 |
| 10 |
97E95-08520-00 |
BOLT, HEXAGON W/W Price: $1.50 |
| 11 |
90185-22007-00 |
NUT, SELF-LOCKING This part replaces 90185-22043-00. Price: $23.95 |
| 12 |
90386-22MA4-00 |
BUSH Price: $9.10 |
| 14 |
67C-43631-00-00 |
LEVER, TILT Price: $9.45 |
| 15 |
682-43318-01-00 |
COVER Price: $12.55 |
| 16 |
97D95-06010-00 |
BOLT, HEXAGON DEEP Price: $0.70 |
| 17 |
63D-43691-00-00 |
INDICATOR, TILT Price: $4.80 |
| 18 |
663-45251-00-00 |
ANODE Price: $6.15 |
| 19 |
90152-06M01-00 |
SCREW, COUNTERSUNK Price: $3.95 |
| 20 |
6BG-43818-00-00 |
PIN, LOWER SHOCK M This part replaces 90249-18M35-00. Price: $156.35 |
| 21 |
97080-08016-00 |
BOLT Price: $4.60 |
| 22 |
90201-08M03-00 |
WASHER, PLATE This part replaces 90201-08M00-00. Price: $6.55 |
| 23 |
90386-18M44-00 |
BUSH Price: $8.60 |
| 24 |
90386-18MA5-00 |
BUSH Price: $7.70 |
| 25 |
90387-18M03-00 |
COLLAR Price: $13.50 |
| 26 |
90249-12M38-00 |
PIN Price: $73.35 |
| 27 |
90381-12M10-00 |
BUSH, SOLID Price: $6.25 |
| 28 |
90381-12M11-00 |
BUSH, SOLID Price: $6.25 |
| 29 |
99080-10600-00 |
CIRCLIP Price: $3.55 |
| 30 |
97D95-10050-00 |
BOLT, HEXAGON DEEP Price: $9.65 |
| 31 |
6BG-43654-A0-00 |
NUT 1 Price: $33.70 |
| 32 |
92990-10600-00 |
WASHER, PLATE This part replaces 92995-10600-00. Price: $3.00 |
| 33 |
65W-45251-00-00 |
ANODE Price: $12.75 |
| 34 |
90101-06020-00 |
BOLT Price: $3.95 |
| 35 |
67C-82127-20-00 |
WIRE, LEAD 2 Price: $39.05 |
| 36 |
97E95-06514-00 |
BOLT, HEXAGON W/W Price: $1.25 |
| 38 |
90101-12063-00 |
BOLT (L:105MM) Price: $33.25 |
| 39 |
90201-12062-00 |
WASHER, PLATE Price: $2.30 |
| 40 |
90201-12426-00 |
WASHER, PLATE Price: $2.25 |
