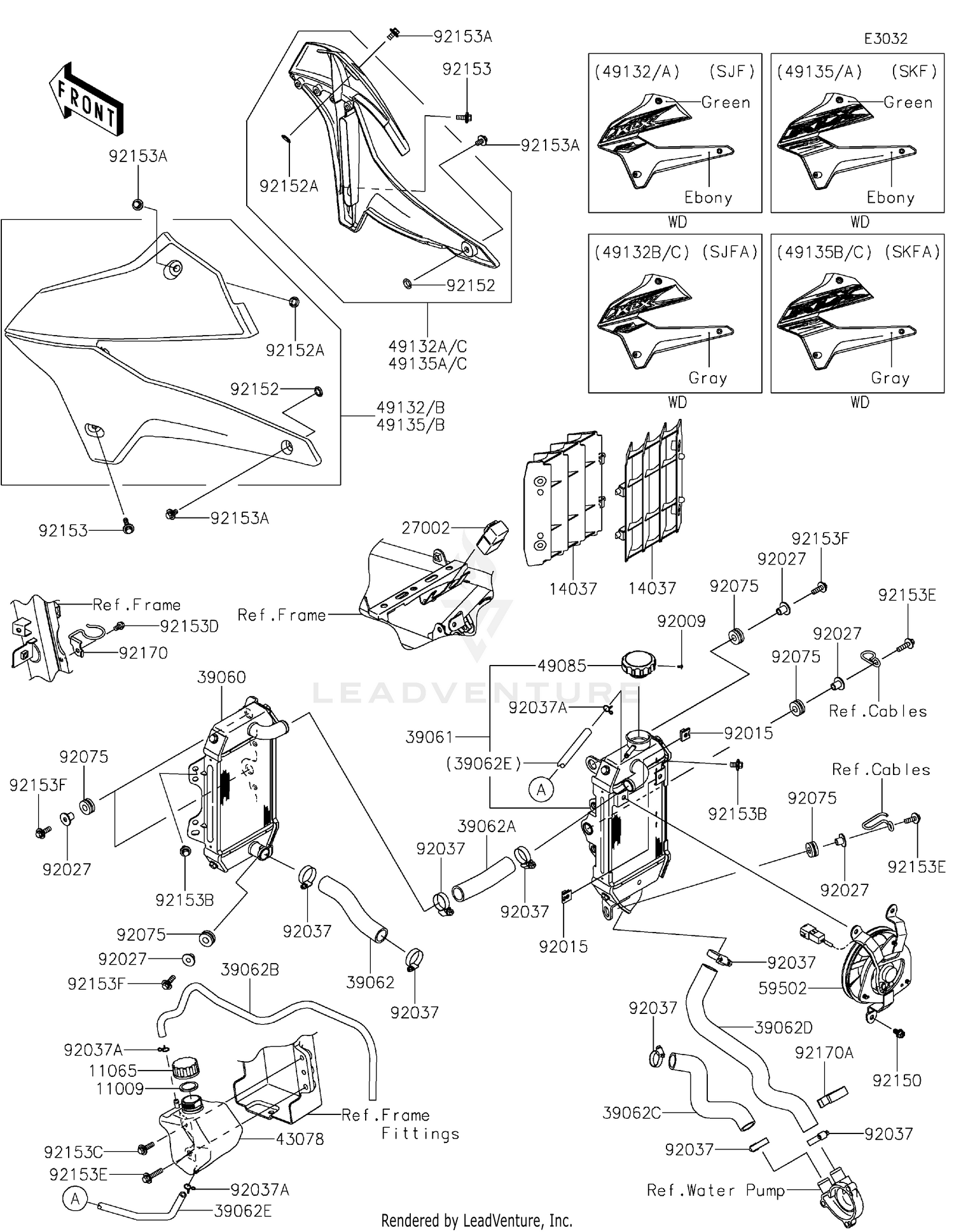

| Ref | Part Number | Description |
|---|
| 11009 |
11009-1145 |
GASKET,RESERVOIR TANK CAP Price: $1.42 |
| 11065 |
11065-0969 |
CAP Price: $2.02 |
| 14037 |
14037-0067-6C |
SCREEN,EBONY Price: $25.74 |
| 27002 |
27002-1086 |
RELAY-ASSY Price: $36.91 |
| 39060 |
39060-0038 |
RADIATOR,LH Price: $326.24 |
| 39061 |
39061-0182 |
RADIATOR-ASSY,RH Price: $453.53 |
| 39062 |
39062-0199 |
HOSE-COOLING,HEAD-RAD.LH Price: $22.80 |
| 39062A |
39062-0200 |
HOSE-COOLING,RAD.LH-RAD.RH Price: $22.80 |
| 39062B |
39062-0204 |
HOSE-COOLING,OVERFLOW Price: $19.48 |
| 39062C |
39062-1563 |
HOSE-COOLING,PUMP-CYLINDER Price: $28.82 |
| 39062D |
39062-1564 |
HOSE-COOLING,RADIATOR-PUMP Price: $42.62 |
| 39062E |
39062-1786 |
HOSE-COOLING,RESERVOIR Price: $14.66 |
| 43078 |
43078-0044 |
RESERVOIR Price: $47.52 |
| 49085 |
49085-1075 |
CAP-ASSY-PRESSURE Price: $43.53 |
| 49132 |
49132-5452-25M |
SHROUD-ENGINE,LH,L.GREEN+EBY Price: $134.21 |
| 49132A |
49132-5454-25M |
SHROUD-ENGINE,RH,L.GREEN+EBY Price: $134.21 |
| 49132B |
49132-5455-36K |
SHROUD-ENGINE,LH,T.M.C.GRAY Price: $214.18 |
| 49132C |
49132-5456-36K |
SHROUD-ENGINE,RH,T.M.C.GRAY Price: $214.18 |
| 49135 |
49135-5041-25M |
SHROUD-ENGINE,LH,L.GREEN+EBY Price: $247.39 |
| 49135A |
49135-5042-25M |
SHROUD-ENGINE,RH,L.GREEN+EBY Price: $247.39 |
| 49135B |
49135-5045-36K |
SHROUD-ENGINE,LH,T.M.C.GRAY Price: $231.85 |
| 49135C |
49135-5046-36K |
SHROUD-ENGINE,RH,T.M.C.GRAY Price: $231.85 |
| 59502 |
59502-0028 |
FAN-ASSY Price: $569.98 |
| 92009 |
92009-1844 |
SCREW,TAPPING,3X6 Price: $0.82 |
| 92015 |
92015-1487 |
NUT Price: $4.80 |
| 92027 |
92027-1183 |
COLLAR,6.5X10X14.1 Price: $5.52 |
| 92037 |
92037-1589 |
CLAMP,COOLING HOSE Price: $18.57 |
| 92037A |
92037-1712 |
CLAMP Price: $5.00 |
| 92075 |
92075-209 |
DAMPER Price: $4.69 |
| 92150 |
92150-1186 |
BOLT,6X12 Price: $3.37 |
| 92152 |
92152-0909 |
COLLAR,8.8X11.2X4 Price: $5.65 |
| 92152A |
92152-1235 |
COLLAR Price: $4.13 |
| 92153 |
92153-0502 |
BOLT,6X20 Price: $2.80 |
| 92153A |
92153-0503 |
BOLT,6X12 Price: $2.80 |
| 92153B |
92153-0936 |
BOLT,FLANGED,6X14 Price: $2.97 |
| 92153C |
92153-0950 |
BOLT,FLANGED,6X22 Price: $3.90 |
| 92153D |
92153-1354 |
BOLT,FLANGED,6X10 Price: $2.61 |
| 92153E |
92153-1457 |
BOLT,FLANGED,6X30 Price: $3.39 |
| 92153F |
92153-1560 |
BOLT,FLANGED-SMALL,6X22 Price: $2.15 |
