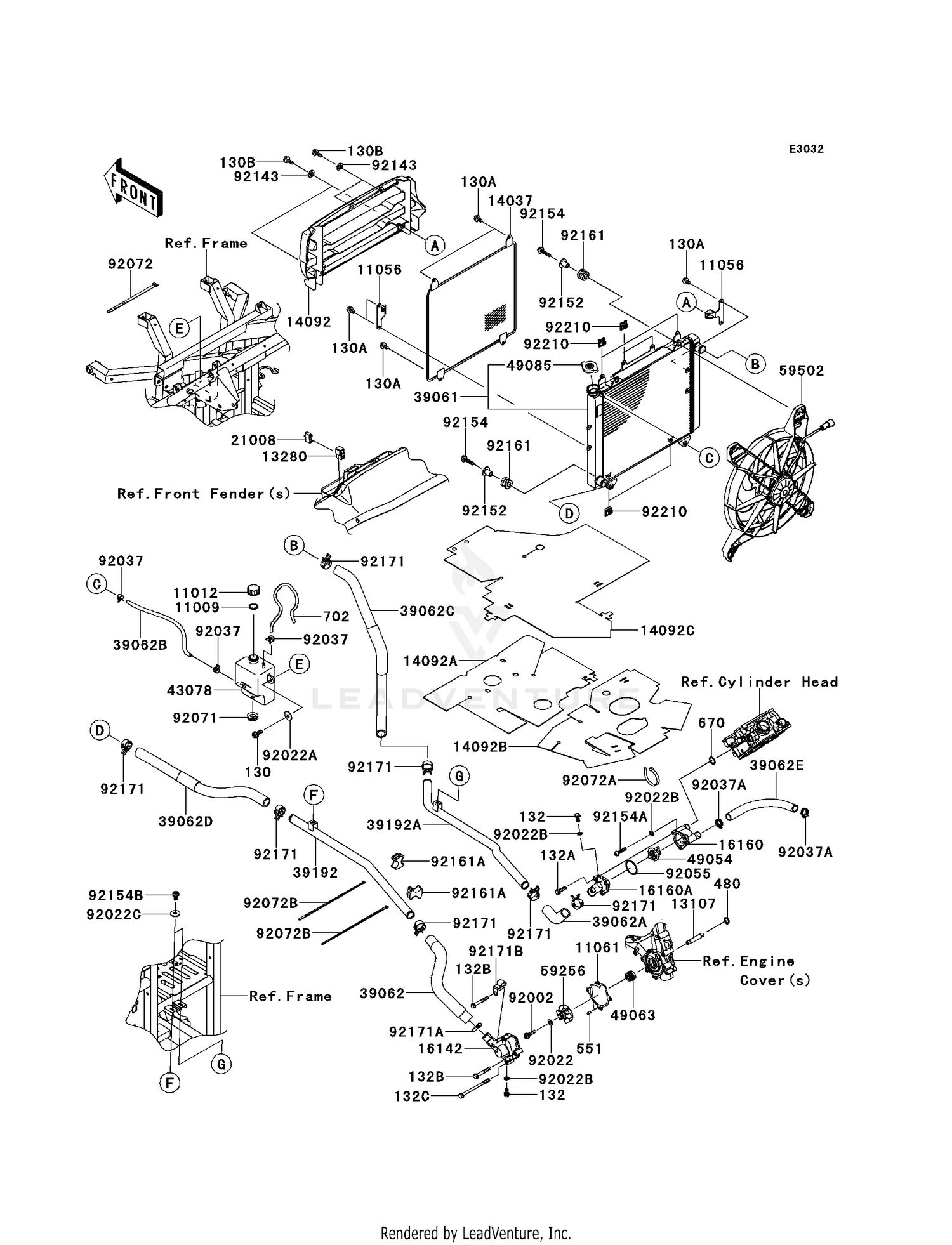

| Ref | Part Number | Description |
|---|
| 130 |
130BA0616 |
BOLT-FLANGED,6X16 Price: $1.20 |
| 130A |
130BB0610 |
BOLT-FLANGED,6X10 Price: $2.49 |
| 130B |
130BB0614 |
BOLT-FLANGED,6X14 Price: $2.49 |
| 132 |
132BA0612 |
BOLT-FLANGED-SMALL,6X12 Price: $1.20 |
| 132A |
132BA0620 |
BOLT-FLANGED-SMALL,6X20 Price: $2.49 |
| 132B |
132BA0640 |
BOLT-FLANGED-SMALL,6X40 Price: $4.45 |
| 132C |
132BA0680 |
BOLT-FLANGED-SMALL,6X80 Price: $4.45 |
| 480 |
480J1200 |
CIRCLIP-TYPE-C,12MM Price: $0.62 |
| 551 |
551A0408 |
PIN-DOWEL,4X8 Price: $0.78 |
| 670 |
670B2020 |
O RING,20MM Price: $1.22 |
| 702 |
92192-0884 |
TUBE,5X8X380 This part replaces 702A05380. Price: $7.73 |
| 11009 |
11009-1145 |
GASKET,RESERVOIR TANK CAP Price: $1.42 |
| 11012 |
11012-1084 |
CAP Price: $1.72 |
| 11056 |
11056-0722 |
BRACKET Price: $10.54 |
| 11061 |
11061-0731 |
GASKET,WATER PUMP COVER Price: $9.09 |
| 13107 |
13107-0719 |
SHAFT,WATER PUMP Price: $21.58 |
| 13280 |
13280-0082 |
HOLDER,BREAKER Price: $5.60 |
| 14037 |
14037-0739 |
SCREEN Price: $135.90 |
| 14092 |
14092-0086-6Z |
COVER,RADIATOR,F.BLACK Price: $31.72 |
| 14092A |
14092-1060 |
COVER,HEAT GUARD,FR Price: $24.78 |
| 14092B |
14092-1061 |
COVER,HEAT GUARD,RR Price: $24.52 |
| 14092C |
14092-1142 |
COVER,CHAMBER Price: $51.32 |
| 16142 |
16142-0743 |
COVER-PUMP,WATER This part replaces 16142-0705. Price: $63.96 |
| 16160 |
16160-0734 |
BODY,THERMOSTAT,LWR Price: $80.02 |
| 16160A |
16160-0735 |
BODY,THERMOSTAT,UPP Price: $67.23 |
| 21008 |
21008-0554 |
BREAKER,RAD. FAN,20A Price: $28.27 |
| 39061 |
39061-0568 |
RADIATOR-ASSY Price: $479.59 |
| 39062 |
39062-0891 |
HOSE-COOLING,WATER PUMP IN This part replaces 39062-0580. Price: $36.62 |
| 39062A |
39062-0669 |
HOSE-COOLING,THERMO OUT This part replaces 39062-0581. Price: $15.82 |
| 39062B |
39062-0582 |
HOSE-COOLING,RESERVOI Price: $6.69 |
| 39062C |
39062-0939 |
HOSE-COOLING,RADIATOR IN This part replaces 39062-0619. Price: $63.64 |
| 39062D |
39062-0892 |
HOSE-COOLING,RADIATOR OUT This part replaces 39062-0620. Price: $42.62 |
| 39062E |
39062-0621 |
HOSE-COOLING,RR HEAD-THERMO. Price: $14.26 |
| 39192 |
39192-0673 |
PIPE-WATER,LH This part replaces 39192-0569. Price: $32.37 |
| 39192A |
39192-0675 |
PIPE-WATER,RH This part replaces 39192-0571. Price: $40.60 |
| 43078 |
43078-0070 |
RESERVOIR Price: $39.23 |
| 49054 |
49054-1055 |
THERMOSTAT Price: $54.56 |
| 49063 |
49063-1055 |
SEAL-MECHANICAL Price: $20.06 |
| 49085 |
49085-0005 |
CAP-ASSY-PRESSURE Price: $45.60 |
| 59256 |
59256-0555 |
IMPELLER Price: $42.34 |
| 59502 |
59502-0566 |
FAN-ASSY Price: $362.27 |
| 92002 |
92002-1154 |
BOLT,6X22 Price: $4.69 |
| 92022 |
92022-077 |
WASHER,6.1X12X1 Price: $3.99 |
| 92022A |
92022-165 |
WASHER,PLAIN,6.5X20X1 Price: $3.74 |
| 92022B |
92022-304 |
WASHER,6.2X11X1 Price: $3.65 |
| 92022C |
92022-3714 |
WASHER,6.2X20X2 Price: $4.18 |
| 92037 |
92037-1461 |
CLAMP,TUBE Price: $3.88 |
| 92037A |
92037-1589 |
CLAMP,COOLING HOSE Price: $18.57 |
| 92055 |
92055-1279 |
RING-O,44.7X2.4 Price: $7.34 |
| 92071 |
92071-1115 |
GROMMET Price: $5.46 |
| 92072 |
92072-032 |
BAND,L=218 Price: $5.00 |
| 92072A |
92072-1237 |
BAND,L=250 Price: $2.14 |
| 92072B |
92072-3872 |
BAND,L=368.3 Price: $1.59 |
| 92143 |
92143-1087 |
COLLAR Price: $4.31 |
| 92152 |
92152-1512 |
COLLAR Price: $8.56 |
| 92154 |
92154-0498 |
BOLT,FLANGED,6X25 Price: $1.94 |
| 92154A |
92154-1142 |
BOLT,SOCKET,6X25 Price: $1.63 |
| 92154B |
92154-1195 |
BOLT,FLANGED,6X12 Price: $1.48 |
| 92161 |
92161-1349 |
DAMPER Price: $4.68 |
| 92161A |
92161-1513 |
DAMPER,PIPE WATER Price: $3.51 |
| 92171 |
92171-0060 |
CLAMP,COOLING HOSE Price: $4.41 |
| 92171A |
92171-0179 |
CLAMP Price: $8.20 |
| 92171B |
92171-0926 |
CLAMP Price: $8.68 |
