| Ref | Part Number | Description |
|---|
| 1 |
6DR-42710-00-8D |

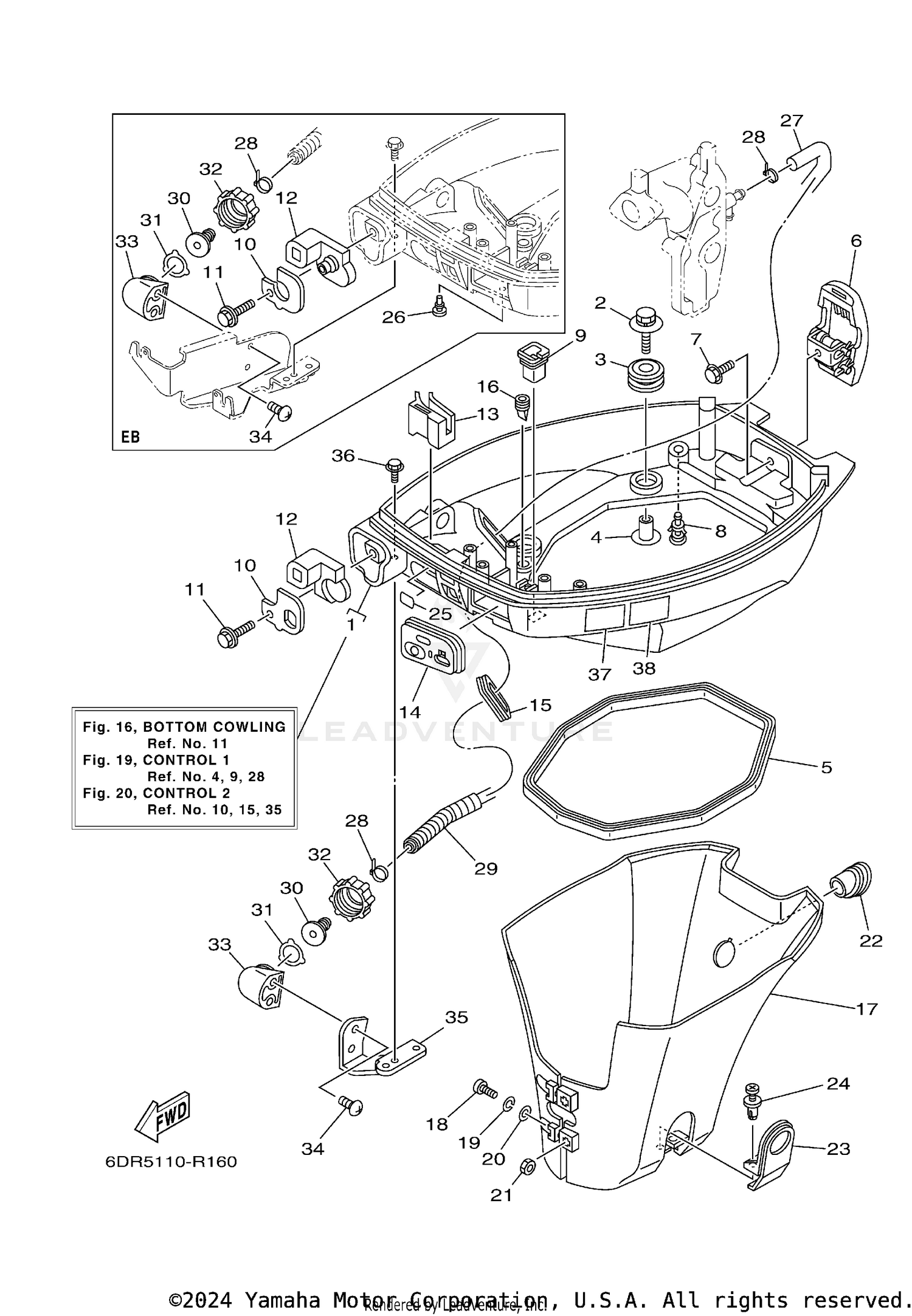

BOTTOM COWLING ASSY Price: $332.45 |
| 2 |
68F-85119-00-00 |
BOLT Price: $5.95 |
| 3 |
90480-21M82-00 |
GROMMET Price: $4.75 |
| 4 |
90387-06176-00 |
COLLAR Price: $5.95 |
| 5 |
68T-42716-10-00 |
RUBBER, SEAL 1 Price: $17.10 |
| 6 |
6AU-42801-00-00 |
COWLING CLAMP COMP. Price: $42.00 |
| 7 |
97E95-06512-00 |
BOLT, HEXAGON W/W Price: $2.05 |
| 8 |
6BL-44391-00-00 |
NIPPLE, HOSE Price: $5.05 |
| 9 |
682-42727-01-00 |
GROMMET This part replaces 682-42727-00-00. Price: $2.30 |
| 10 |
6DR-42761-00-00 |
STOPPER Price: $6.60 |
| 10 |
6DR-42761-10-00 |
STOPPER Price: $5.00 |
| 11 |
90109-06M86-00 |
BOLT Price: $1.81 |
| 12 |
6DR-42725-01-00 |
GROMMET This part replaces 6DR-42725-00-00. Price: $5.50 |
| 13 |
68T-26367-00-00 |
PROTECTOR Price: $7.30 |
| 14 |
68T-42724-20-00 |
GROMMET Price: $12.35 |
| 16 |
65W-42717-00-00 |
RUBBER, SEAL 2 Price: $6.70 |
| 17 |
68T-42741-00-00 |
APRON Price: $50.35 |
| 18 |
97885-06030-00 |
SCREW, PAN HEAD Price: $5.05 |
| 19 |
92995-06100-00 |
WASHER, SPRING Price: $3.45 |
| 20 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 21 |
95380-06600-00 |
NUT, HEXAGON Price: $4.80 |
| 22 |
68T-42717-01-00 |
RUBBER, SEAL 2 This part replaces 68T-42717-00-00. Price: $3.15 |
| 23 |
68T-42771-00-00 |
APRON Price: $6.15 |
| 24 |
90338-06M20-00 |
PLUG Price: $4.05 |
| 25 |
65W-84342-00-00 |
SEAT, EMBLEM Price: $7.05 |
| 26 |
90480-06M19-00 |
GROMMET Price: $5.35 |
| 37 |
6EE-42794-41-00 |
LABEL, WARNING (GENERAL) This part replaces 6EE-42794-40-00. Price: $17.80 |
