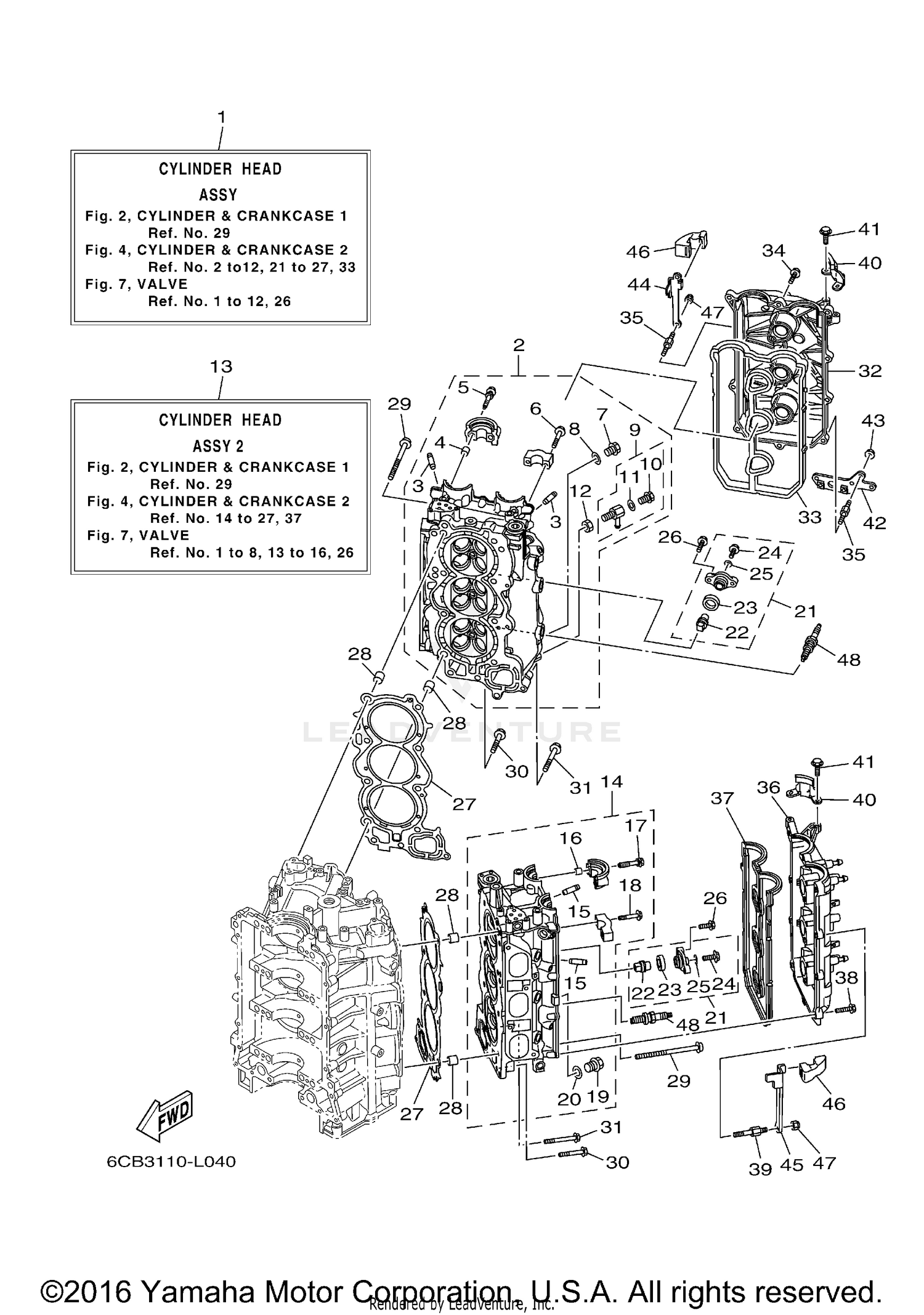

| Ref | Part Number | Description |
|---|
| 1 |
6CB-W009A-04-00 |
CYLINDER HEAD COMPLETE This part replaces 6CB-W009A-00-00. Price: $6,738.50 |
| 2 |
99999-04192-00 |
HEAD, CYLINDER WITH This part replaces 6CB-11110-00-00. Price: $3,173.50 |
| 3 |
6S5-11133-10-00 |
GUIDE, VALVE 1 Price: $58.49 |
| 4 |
91809-08006-00 |
PIN, DOWEL Price: $5.55 |
| 5 |
90119-07001-00 |
BOLT, WITH WASHER Price: $20.65 |
| 6 |
90119-07234-00 |
BOLT, WITH WASHER Price: $3.20 |
| 7 |
90340-18M09-00 |
PLUG, STRAIGHT SCREW Price: $28.10 |
| 8 |
90430-18130-00 |
GASKET Price: $9.49 |
| 9 |
6CB-83609-00-00 |
CONNECTOR ASSY Price: $132.95 |
| 10 |
90340-14M06-00 |
PLUG, STRAIGHT SCREW Price: $14.20 |
| 11 |
90430-14115-00 |
GASKET Price: $3.00 |
| 12 |
95380-14700-00 |
NUT Price: $9.05 |
| 13 |
6CB-W009C-04-00 |
CYLINDER HEAD 2 COMPLETE This part replaces 6CB-W009C-00-00. Price: $7,435.20 |
| 14 |
99999-04193-00 |
HEAD, CYLINDER WITH This part replaces 6CB-11120-00-00. Price: $3,111.20 |
| 15 |
6S5-11133-10-00 |
GUIDE, VALVE 1 Price: $58.49 |
| 16 |
91809-08006-00 |
PIN, DOWEL Price: $5.55 |
| 17 |
90119-07001-00 |
BOLT, WITH WASHER Price: $20.65 |
| 18 |
90119-07234-00 |
BOLT, WITH WASHER Price: $3.20 |
| 19 |
90340-18M09-00 |
PLUG, STRAIGHT SCREW Price: $28.10 |
| 20 |
90430-18130-00 |
GASKET Price: $9.49 |
| 21 |
6ML-11301-00-00 |
ANODE COVER ASSY This part replaces 67F-11301-00-00. Price: $56.30 |
| 23 |
67F-11328-01-00 |
GROMMET, ANODE This part replaces 67F-11328-00-00. Price: $3.80 |
| 24 |
90105-06M07-00 |
BOLT, FLANGE Price: $2.30 |
| 25 |
90430-06M03-00 |
GASKET Price: $3.65 |
| 26 |
95885-08025-00 |
BOLT, FLANGE Price: $4.90 |
| 27 |
6CB-11181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $201.20 |
| 28 |
90387-11005-00 |
COLLAR Price: $7.70 |
| 29 |
90149-11001-00 |
SCREW This part replaces 90155-11002-00. Price: $15.20 |
| 30 |
90105-08175-00 |
BOLT, FLANGE Price: $6.40 |
| 31 |
90105-08220-00 |
BOLT, FLANGE Price: $7.05 |
| 32 |
6CB-11191-02-00 |
COVER, CYLINDER HEAD 1 Price: $195.50 |
| 33 |
6CB-11193-00-00 |
GASKET, HEAD COVER 1 Price: $42.15 |
| 34 |
95D95-06030-00 |
BOLT, FLANGE DEEP This part replaces 95895-06030-00. Price: $5.35 |
| 35 |
90109-06277-00 |
BOLT Price: $21.85 |
| 36 |
6CB-11192-02-00 |
COVER, CYLINDER HEAD 2 Price: $195.50 |
| 37 |
6CB-11194-00-00 |
GASKET, HEAD COVER 2 Price: $44.05 |
| 38 |
95D95-06030-00 |
BOLT, FLANGE DEEP This part replaces 95895-06030-00. Price: $5.35 |
| 39 |
90109-06277-00 |
BOLT Price: $21.85 |
| 40 |
6AW-15142-00-00 |
GUIDE 1 Price: $28.90 |
| 41 |
95D95-06014-00 |
BOLT, FLANGE DEEP This part replaces 95885-06014-00. Price: $5.35 |
| 42 |
6CB-2134V-00-00 |
BRACKET Price: $37.75 |
| 43 |
90179-06M28-00 |
NUT Price: $4.75 |
| 44 |
99999-04538-00 |
BRACKET 1 This part replaces 6CB-11998-00-00. Price: $22.70 |
| 45 |
99999-04539-00 |
BRACKET 2 This part replaces 6CB-11999-00-00. Price: $23.90 |
| 46 |
6CB-42662-02-00 |
DAMPER This part replaces 6CB-42662-00-00. Price: $6.40 |
| 47 |
90185-06M07-00 |
NUT, SELF-LOCKING Price: $3.15 |
