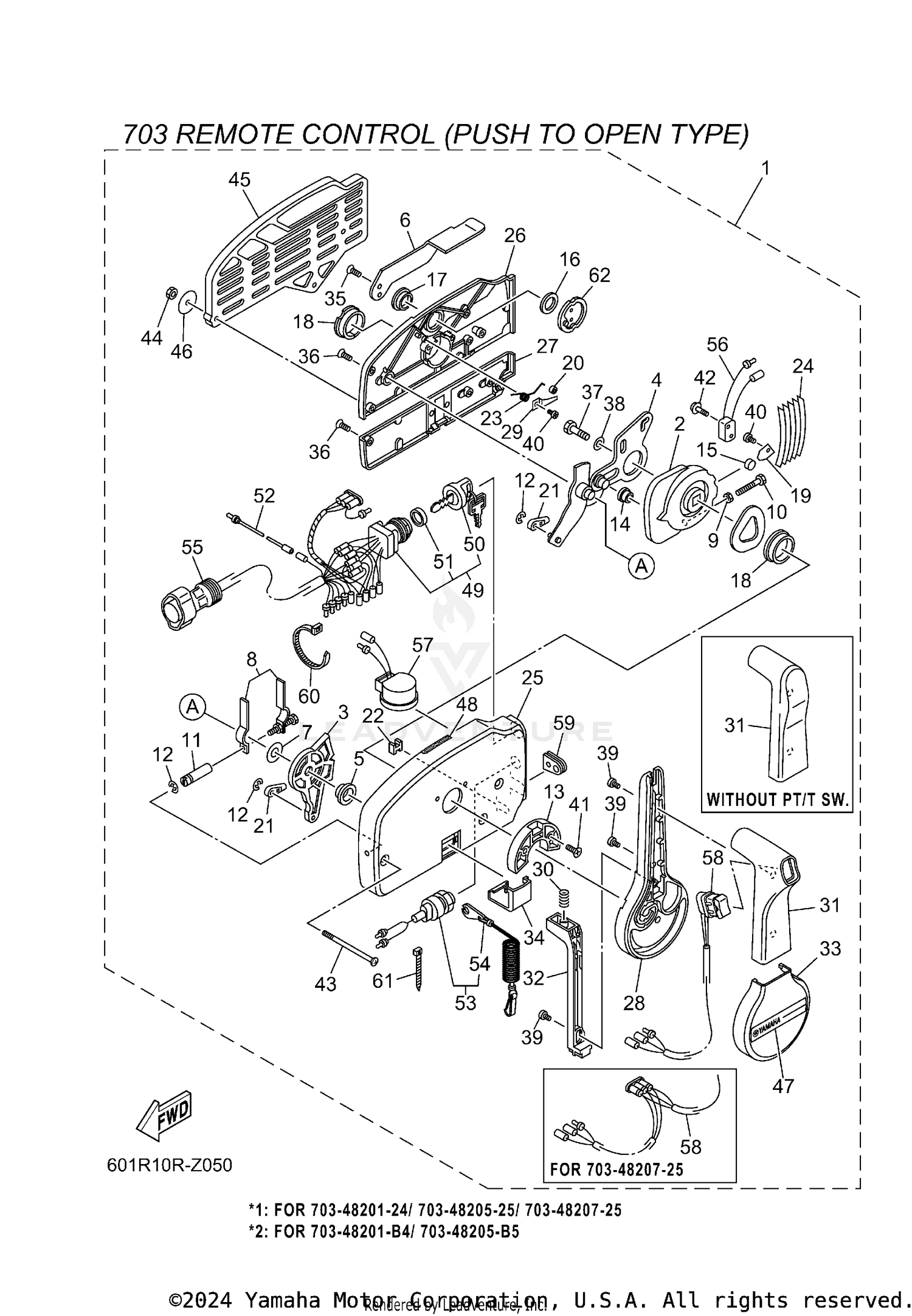

| Ref | Part Number | Description |
|---|
| 2 |
703-48232-00-00 |
GEAR Price: $63.80 |
| 3 |
703-48271-00-00 |
ARM, SHIFT Price: $32.85 |
| 4 |
703-48261-01-00 |
ARM, THROTTLE Price: $123.40 |
| 5 |
703-48235-00-00 |
BUSHING Price: $11.35 |
| 6 |
703-48152-10-00 |
KNOB, FREE ACCEL. Price: $16.10 |
| 7 |
703-48268-00-00 |
SPACER 3 Price: $5.55 |
| 8 |
703-48264-00-00 |
FRICTION, THROTTLE Price: $17.70 |
| 9 |
95380-05600-00 |
NUT Price: $9.49 |
| 10 |
97080-05025-00 |
BOLT This part replaces 97380-05025-00. Price: $3.90 |
| 11 |
703-48265-10-00 |
SHAFT, FRICTION Price: $4.40 |
| 12 |
93430-06024-00 |
CIRCLIP Price: $3.95 |
| 13 |
703-48245-00-00 |
PLATE, LOCK Price: $13.50 |
| 14 |
703-48252-00-00 |
ROLLER, CAM Price: $13.50 |
| 15 |
701-48248-00-00 |
ROLLER, FREE ACCEL. Price: $6.70 |
| 16 |
703-48198-00-00 |
WASHER, WAVE Price: $5.35 |
| 17 |
703-48243-00-00 |
BUSHING Price: $7.15 |
| 18 |
703-48236-00-00 |
BUSHING 1 Price: $5.95 |
| 19 |
703-48189-00-00 |
RETAINER 1 Price: $6.70 |
| 20 |
703-48234-00-00 |
ROLLER, DETENT Price: $10.10 |
| 21 |
703-48345-01-00 |
CABLE END, REMOTE CONTROL 2 Price: $16.25 |
| 22 |
703-48358-01-00 |
ANCHOR, CABLE Price: $10.70 |
| 23 |
703-48244-00-00 |
SPRING, FREE ACCEL. Price: $8.60 |
| 24 |
703-48238-00-00 |
SPRING,DETENT Price: $5.80 |
| 25 |
703-48211-10-00 |
HOUSING,1 Price: $115.20 |
| 26 |
703-48212-10-00 |
BACK PLATE 1 Price: $64.80 |
| 27 |
703-48213-10-00 |
BACK PLATE 2 Price: $35.65 |
| 28 |
703-48221-10-00 |
LEVER, CONTROL Price: $55.50 |
| 29 |
703-48246-00-00 |
SPACER Price: $11.35 |
| 30 |
703-48227-00-00 |
SPRING, NEUTRAL LOCK Price: $7.15 |
| 32 |
703-48223-10-00 |
LOCK, NEUTRAL Price: $12.55 |
| 33 |
703-48225-10-00 |
COVER Price: $8.40 |
| 34 |
703-48219-10-00 |
COVER, LEAD Price: $3.65 |
| 35 |
703-48281-00-00 |
SCREW Price: $15.95 |
| 36 |
703-44189-20-00 |
SCREW Price: $2.05 |
| 37 |
97080-08030-00 |
BOLT This part replaces 97380-08030-00. Price: $4.60 |
| 38 |
92990-08600-00 |
WASHER, PLATE Price: $2.70 |
| 39 |
703-48128-10-00 |
SCREW 2 Price: $2.50 |
| 40 |
98580-04006-00 |
SCREW, PAN HEAD Price: $3.20 |
| 42 |
703-48129-00-00 |
SCREW 3 Price: $2.00 |
| 43 |
703-44189-30-00 |
SCREW Price: $6.25 |
| 44 |
95380-06600-00 |
NUT, HEXAGON Price: $4.80 |
| 46 |
701-48287-00-00 |
WASHER Price: $10.95 |
| 47 |
703-48215-11-00 |
GRAPHIC Price: $20.50 |
| 48 |
6X3-44191-00-00 |
INDICATOR, SHIFT Price: $10.70 |
| 52 |
703-82531-00-00 |
WIRE, LEAD (L70) Price: $7.75 |
| 53 |
688-82575-02-00 |
ENGINE STOP SWITCH ASSY Price: $37.55 |
| 54 |
682-82556-00-00 |
LANYARD, STOP SWITCH Price: $8.20 |
| 56 |
703-82540-00-00 |
NEUTRAL SWITCH ASSY Price: $30.55 |
| 57 |
703-83383-11-00 |
BUZZER Price: $39.10 |
| 60 |
1UA-82591-00-00 |
BAND This part replaces 703-82591-00-00. Price: $5.49 |
| 61 |
80L-26397-00-00 |
BAND This part replaces 703-82592-00-00. Price: $8.49 |
