| Ref | Part Number | Description |
|---|
| 2 |
507032476 |
Lever With Parking Lock Price: $104.99 |
| 3 |
507032477 |
Clamp And Screw Kit Price: $23.99 |
| 5 |
415129356 |
Screw M4 X 20 Price: $2.29 |
| 6 |
415030000 |
Pin Ass'y Price: $19.99 |
| 7 |
507032479 |
Microswitch Price: $104.99 |
| 8 |
515175232 |
Male Terminal Price: $1.59 |
| 9 |
414920500 |
Banjo Bolt Price: $8.89 |
| 10 |
414920600 |
Washer Price: $1.90 |
| 12 |
507032473 |
Brake Pads Kit Price: $52.99 |
| 13 |
507032722 |
Brake Spring Kit This part replaces 507032474. Price: $38.99 |
| 14 |
507032475 |
Bleeder Price: $19.99 |
| 15 |
414989700 |
BOOT-QTS 20 - Call your local BRP dealership Price: $22.49 |
| 16 |
250000764 |
Hex. Button Head Screw M8 X 1.25 X 35 This part replaces 250000301. Price: $2.09 |
| 17 |
414920500 |
Banjo Bolt Price: $8.89 |
| 18 |
414920600 |
Washer Price: $1.90 |
| 19 |
507032487 |
Disc Price: $185.49 |
| 20 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership Price: $25.99 |
| 21 |
293300134 |
O-Ring Price: $2.39 |
| 22 |
507032446 |
Aluminum Disk Protector Price: $28.99 |
| 23 |
250000365 |
Torx Screw M6 X 16 Price: $2.19 |
| 24 |
507032497 |
Threaded Tube Price: $15.72 |
| 25 |
207761644 |
Carriage Bolt M6 X 1.0 X 16 Price: $2.19 |
| 26 |
507032493 |
BRAKE HOSE - Call your local BRP dealership Price: $49.99 |

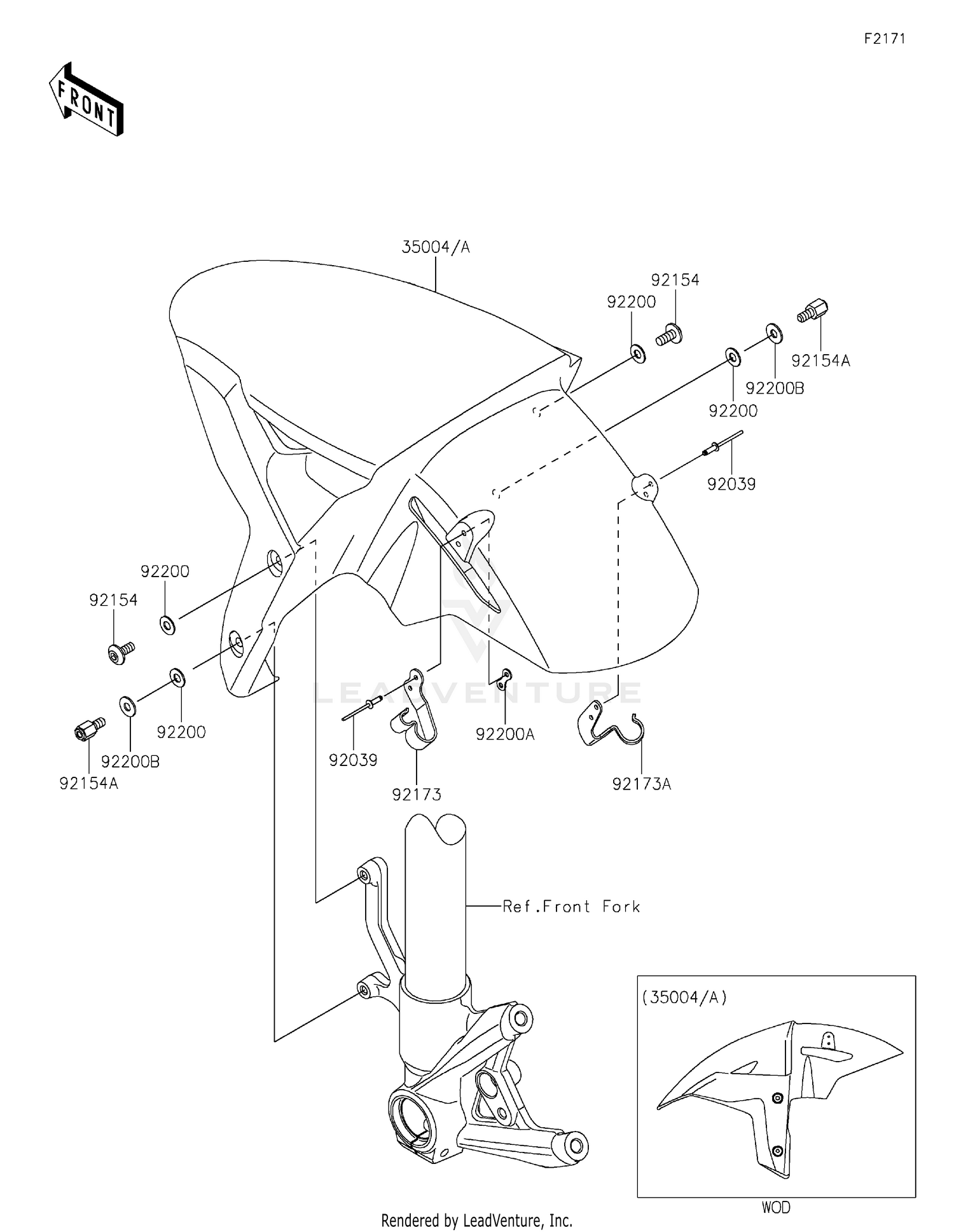

| 35004 |
35004-0362-53X |
FENDER-FRONT,M.C.S.BLACK Price: $723.60 |
| 35004A |
35004-0362-60E |
FENDER-FRONT,M.C.M.S.BLACK Price: $746.27 |
| 92039 |
92039-0752 |
RIVET,3.2X9.5 Price: $0.95 |
| 92154 |
92154-0745 |
BOLT,SOCKET,6X14 Price: $2.32 |
| 92154A |
92154-0746 |
BOLT,6MM Price: $9.17 |
| 92173 |
92173-1376 |
CLAMP,FENDER,LH Price: $10.72 |
| 92173A |
92173-1481 |
CLAMP,FENDER,RH Price: $7.59 |
| 92200 |
92200-1388 |
WASHER,6.5X14X1 Price: $2.46 |
| 92200A |
92200-1757 |
WASHER Price: $7.32 |
