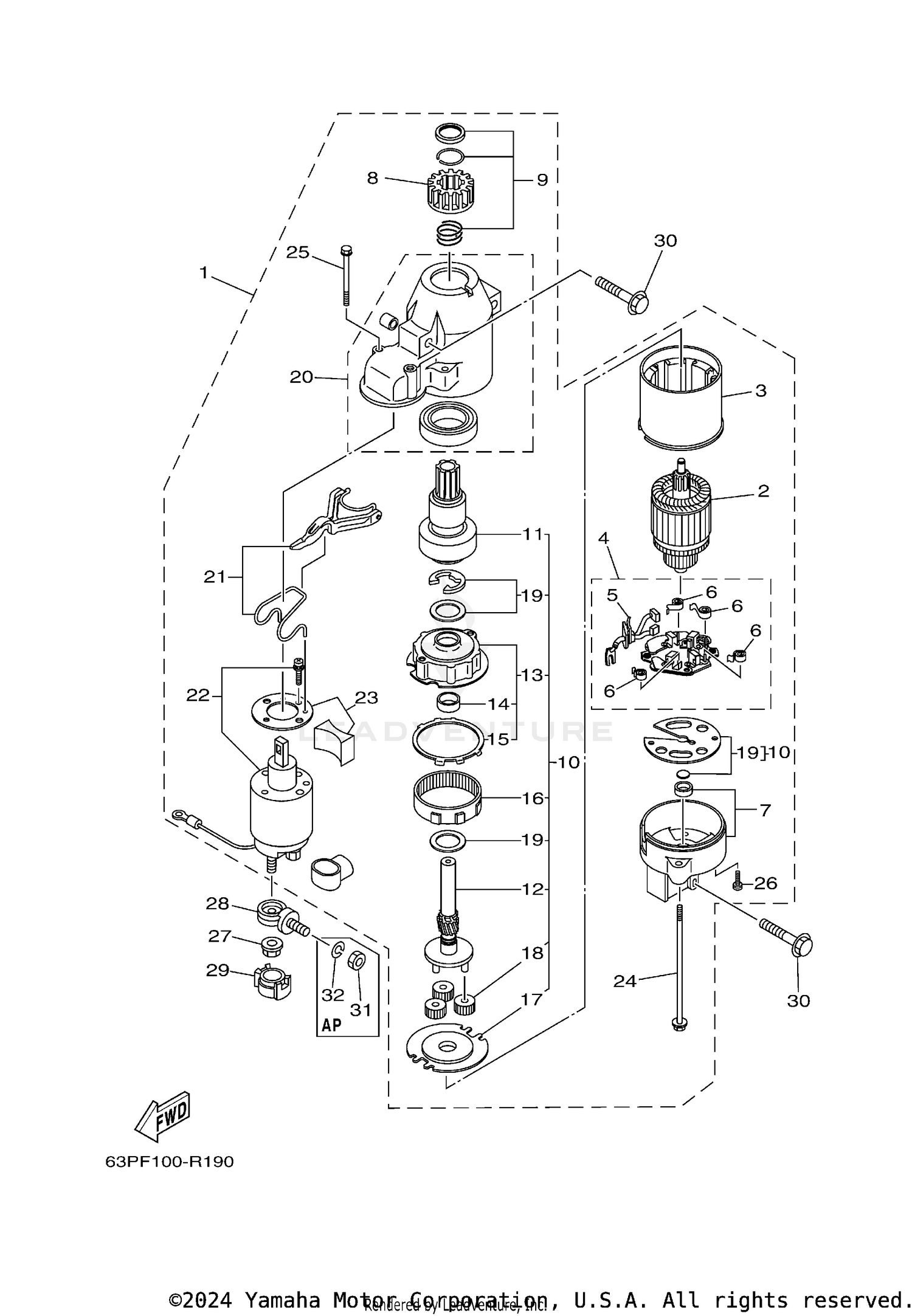

| Ref | Part Number | Description |
|---|
| 1 |
6BR-81800-02-00 |
STARTING MOTOR ASSY Price: $694.40 |
| 2 |
67F-81850-00-00 |
ARMATURE ASSY Price: $632.80 |
| 3 |
67F-81810-00-00 |
STATOR ASSY Price: $414.90 |
| 4 |
69J-81840-11-00 |
BRUSH HOLDER ASSY Price: $321.85 |
| 5 |
69J-81801-11-00 |
BRUSH SET Price: $156.05 |
| 6 |
67F-81813-00-00 |
SPRING, BRUSH Price: $16.75 |
| 7 |
67F-81820-00-00 |
REAR BRACKET ASSY Price: $307.20 |
| 8 |
67F-81808-00-00 |
PINION ASSY Price: $250.15 |
| 9 |
67F-81857-00-00 |
PINION STOPPER SET Price: $94.50 |
| 10 |
67F-81807-00-00 |
GEAR ASSY, STARTING MOTOR Price: $1,023.00 |
| 11 |
67F-81832-00-00 |
CLUTCH, OVER RUN Price: $699.00 |
| 12 |
67F-81836-00-00 |
SHAFT, PINION Price: $204.10 |
| 13 |
67F-81821-00-00 |
BRACKET, CENTER 1 Price: $71.95 |
| 14 |
67F-81841-00-00 |
BEARING Price: $40.70 |
| 15 |
67F-8183R-00-00 |
GASKET Price: $12.45 |
| 17 |
67F-81830-00-00 |
BRACKET, CENTER 2 Price: $151.85 |
| 18 |
60V-8183T-00-00 |
GEAR, IDLER Price: $46.25 |
| 19 |
67F-81809-00-00 |
WASHER KIT Price: $77.60 |
| 20 |
69J-81842-00-00 |
COVER Price: $321.85 |
| 21 |
6C5-81839-00-00 |
LEVER ASSY Price: $57.65 |
| 22 |
63P-81941-00-00 |
STARTER RELAY ASSY Price: $567.35 |
| 23 |
6C5-81869-00-00 |
COVER, DUST Price: $102.80 |
| 24 |
6K7-81826-11-00 |
BOLT Price: $24.30 |
| 25 |
69J-81828-00-00 |
SCREW 2 Price: $13.00 |
| 26 |
67F-81846-00-00 |
SCREW Price: $5.35 |
| 27 |
90179-08003-00 |
NUT Price: $3.20 |
| 28 |
60V-81925-00-00 |
TERMINAL Price: $30.70 |
| 29 |
68F-82582-00-00 |
COVER, WIRE HARNESS Price: $3.45 |
| 30 |
97513-08545-00 |
BOLT, WITH WASHER Price: $2.99 |
