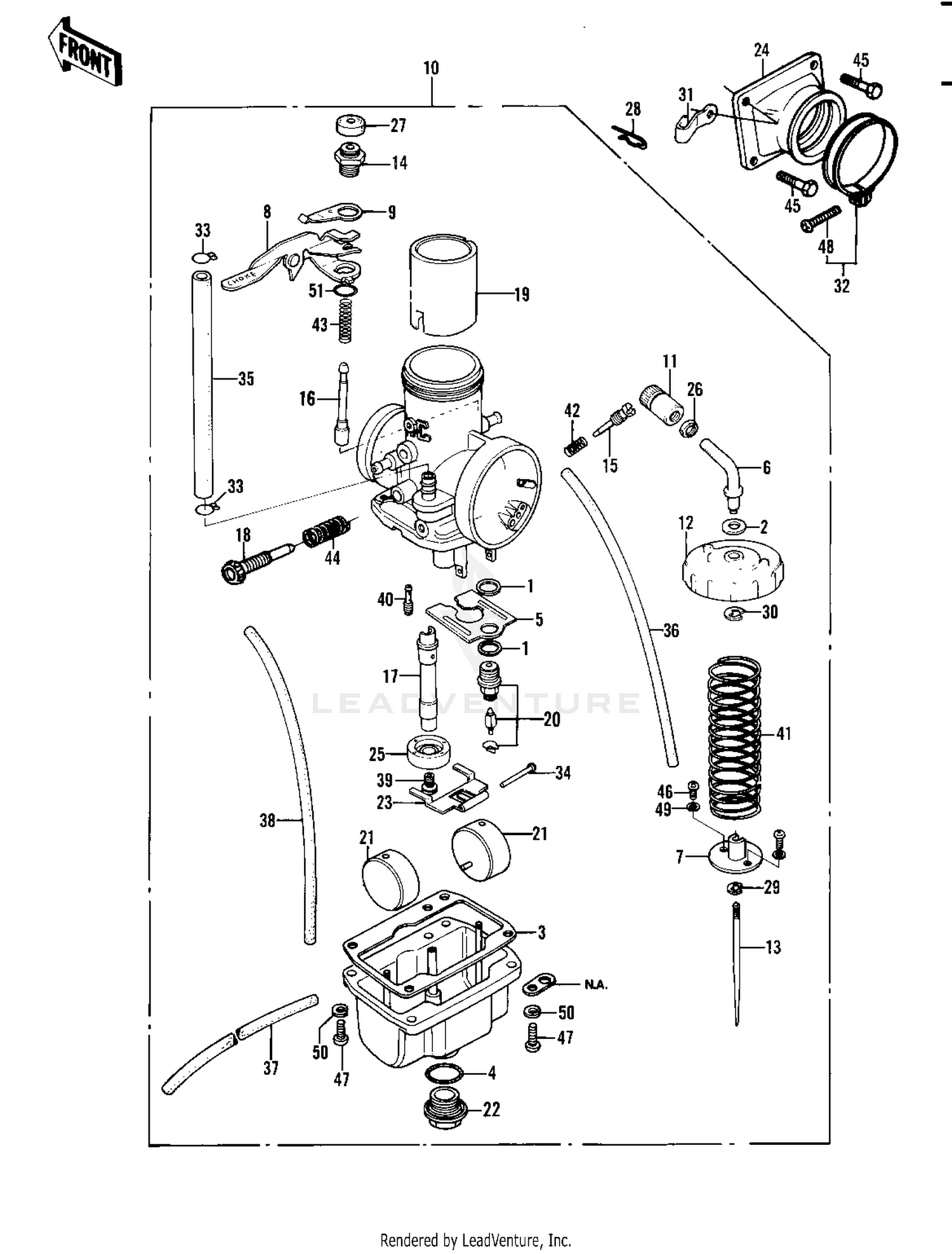

| Ref | Part Number | Description |
|---|
| 1 |
11009-1076 |
GASKET,FLOAT VALVE Price: $4.94 |
| 2 |
11009-1191 |
GASKET,CABLE GUIDE Price: $9.73 |
| 3 |
16019-028 |
GASKET,FLOAT CHAMBER Price: $19.49 |
| 4 |
16038-009 |
GASKET-COVER Price: $9.73 |
| 5 |
16038-019 |
BAFFLE-CARB Price: $18.24 |
| 6 |
13070-1014 |
GUIDE,CABLE Price: $42.18 |
| 7 |
13159-1010 |
CONNECTOR,THROTTLE Price: $14.79 |
| 8 |
13168-1048 |
LEVER,STARTER PLUNGER Price: $22.07 |
| 9 |
13169-1052 |
SPRING PLATE,STARTER Price: $12.13 |
| 10 |
16001-1490 |
CARBURETOR Price: $221.66 |
| 11 |
16002-1006 |
ADJUSTER,CABLE Price: $10.89 |
| 12 |
16004-1010 |
TOP,MIXING CHAMBER Price: $36.19 |
| 13 |
16009-1109 |
NEEDLE-JET,6G03 Price: $22.35 |
| 14 |
16012-019 |
CAP,STARTER PLUNGER Price: $21.09 |
| 15 |
16014-006 |
SCREW Price: $17.15 |
| 16 |
16016-1008 |
PLUNGER ASSY,STARTER Price: $24.34 |
| 17 |
16017-1066 |
NEEDLE JET,R-2 Price: $20.08 |
| 18 |
16021-1034 |
SCREW,THROTTLE STOP Price: $20.68 |
| 19 |
16025-1066 |
VALVE-THROTTLE,CA3.0 Price: $89.72 |
| 20 |
16030-1027 |
VALVE-FLOAT,3.3 Price: $39.98 |
| 21 |
16031-029 |
FLOAT Price: $64.25 |
| 22 |
16049-1004 |
COVER-MAIN JET Price: $12.86 |
| 23 |
16055-009 |
ARM,FLOAT Price: $23.41 |
| 24 |
16065-1005 |
HOLDER,CARBURETOR Price: $129.73 |
| 25 |
16065-1045 |
HOLDER,NEEDLE JET Price: $71.77 |
| 26 |
16003-004 |
NUT CABLE ADJUST LOCK Price: $7.34 |
| 27 |
16039-015 |
CAP,RUBBER,STARTER PLUNGE Price: $6.88 |
| 28 |
92036-018 |
RING-SNAP Price: $3.89 |
| 29 |
16008-010 |
CIRCLIP Price: $9.21 |
| 30 |
16008-011 |
CIRCLIP,CABLE GUIDE Price: $6.85 |
| 31 |
92037-016 |
CLAMP CABLE Price: $2.67 |
| 32 |
92037-116 |
CLAMP,CARBURETOR HLDR Price: $14.66 |
| 33 |
92037-1104 |
CLAMP,HOSE This part replaces 92037-1184. Price: $1.45 |
| 34 |
16032-008 |
PIN,FLOAT Price: $6.57 |
| 35 |
92059-1123 |
TUBE,7.5X12.5X225 Price: $30.71 |
| 36 |
92059-147 |
HOSE,FUEL OVERFLOW This part replaces 92059-1142. Price: $36.17 |
| 37 |
92059-1224 |
TUBE,3.5X6.5X350 Price: $7.35 |
| 38 |
92059-1225 |
TUBE,3.5X6.5X450 Price: $5.53 |
| 39 |
92063-1018 |
MAIN JET,#160R Price: $16.36 |
| 39 |
92063-1026 |
MAIN JET,#157.5R Price: $16.36 |
| 39 |
92063-120 |
MAIN JET NO 150R Price: $16.36 |
| 39 |
92063-121 |
JET-MAIN NO 152.5R Price: $10.41 |
| 40 |
92064-023 |
JET-PILOT NO 35 Price: $20.51 |
| 41 |
16006-028 |
SPRING,THROTTLE VALVE Price: $11.14 |
| 42 |
16022-007 |
SPRING,PILOT AIR SCREW Price: $8.13 |
| 43 |
92081-1181 |
SPRING,STRTR PLUNGER Price: $4.11 |
| 44 |
92081-1200 |
SPRING,THRTL STP SCRW Price: $9.28 |
| 45 |
130CA0620 |
BOLT-FLANGED,6X20 This part replaces 130G0620. Price: $1.70 |
| 46 |
220AA0308 |
SCREW-PAN-CROS,3X8 This part replaces 220B0308. Price: $0.59 |
| 47 |
214AA0516 |
SCREW-PAN+- This part replaces 214B0516A. Price: $0.17 |
| 48 |
220AA0535 |
SCREW-PAN-CROS This part replaces 220B0535. Price: $3.70 |
| 49 |
461DA0300 |
WASHER-SPRING This part replaces 461F0300. Price: $0.47 |
| 50 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
